20* 4 LCD Module

Name: 20* 4 LCD Module - Robo Nepal
SKU: 136079543
Price: 599.00 NPR
Availability: InStock
Rating: 4.5 (85 reviews)

Character LCD: 20×4 characters
Dots Including Cursor: 5×8
Power Supply: +5V
Driving Scheme: 1/16 Duty Cycle, 1/5 Bias
Interface Options: WH2004G – 6800, WH2004G1 – SPI, WH2004G2 – I2C
Viewing Area: 74.4 ? 24.8 mm
Mounting Hole: 82.0 ? 53.0 mm
Character Size: 2.95 ? 4.75 mm
Display View Size: 76 mm x 26 mm
Display Type: STN, Transflective, Positive, Y-G
Controller: SPLC780D1 or Equivalent Control
Interface: 8-bit Parallel Interface
Operating Temperature: -10? to +60?
Storage Temperature: -20? to +70?
Overall Size: 87.0 ? 58.0 mm

SKU: 136079543

₨ 599.00

0 in stock

Compare

Add to wishlist

10 People watching this product now!

df3b063a3a27118f064f14390616d661 RoboNepal Buy in Nepal

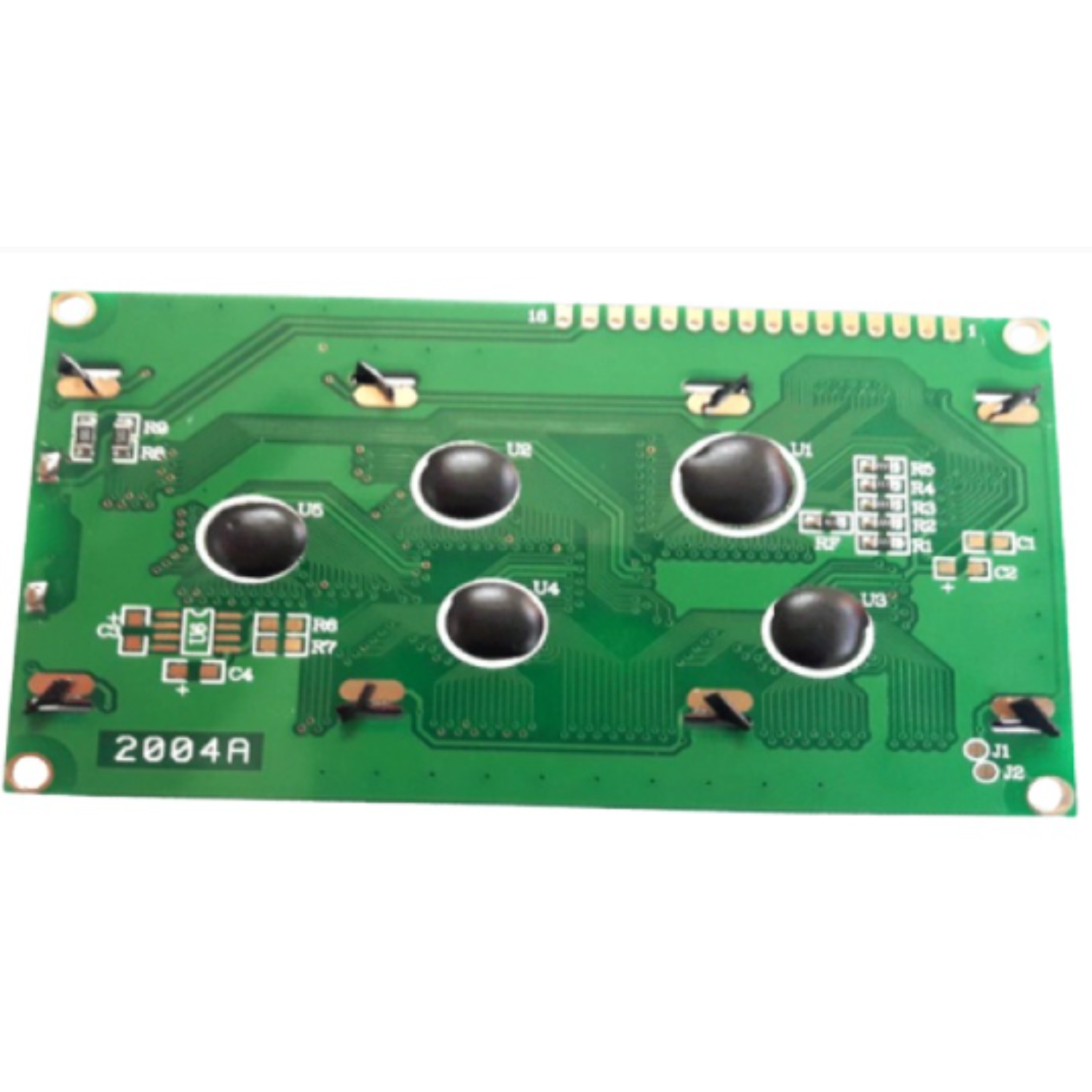

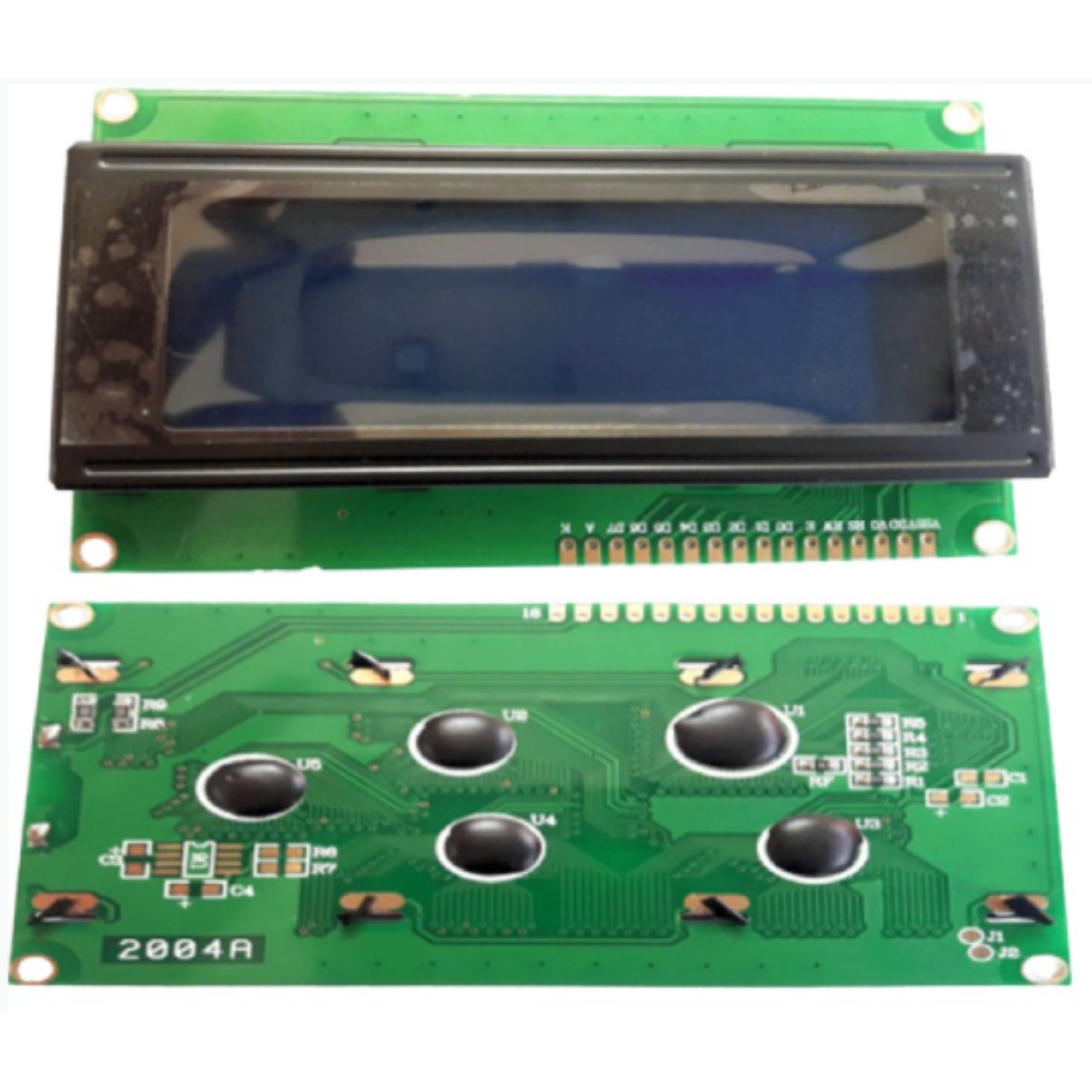

The 20×4 LCD module is a versatile and high-quality display unit, perfect for a variety of electronic projects. This module is designed to display 20 characters per line across four rows, providing ample space for detailed information. It features a built-in character set of English and Japanese characters, making it adaptable for different languages and applications. The module can be easily controlled with six digital lines and comes with a standard 16-pin connector.
