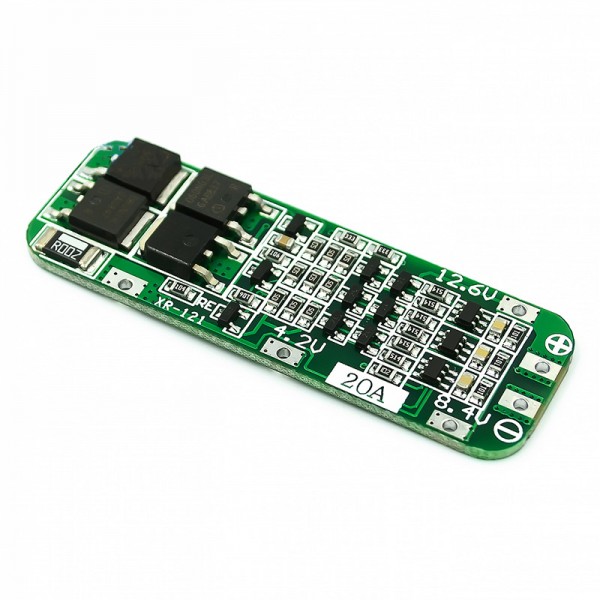

18650 3S BMS Charger Protection Board

Introduction

In the world of lithium battery management, efficiency, safety, and reliability are paramount. Whether you’re a hobbyist building custom battery packs or a professional looking for robust power management solutions, the 18650 3S BMS (Battery Management System) Charger Protection Board stands as a critical component for ensuring optimal performance and longevity of your batteries. This comprehensive guide will delve into every detail of the 18650 3S BMS Charger Protection Board, providing an in-depth understanding of its features, benefits, and why it is an indispensable tool for anyone dealing with lithium batteries, including 18650, 26650, and lithium polymer (LiPo) batteries.

Understanding the 18650 3S BMS Charger Protection Board

The 18650 3S BMS Charger Protection Board is a meticulously designed circuit that plays a vital role in the management of 3-cell lithium battery packs. This board is specifically tailored for use with nominal voltage 3.6V or 3.7V lithium batteries, including the popular 18650 and 26650 battery types, as well as lithium polymer (LiPo) batteries. Its primary function is to protect the battery pack from overcharging, over-discharging, and overcurrent scenarios, thereby extending the lifespan of the batteries and ensuring safe operation.

Key Specifications

Let’s take a closer look at the key specifications that make this BMS Charger Protection Board an exceptional choice for your battery management needs:

• Maximum Output Power/Charging Power: 252W
• Maximum Output Current: 20A
• Maximum Input Current: 10A
• Charging Voltage: 12.6V – 13.0V
• Product Size: 59mm x 20mm x 3.4mm

These specifications highlight the board’s capability to handle significant power loads while maintaining a compact and lightweight form factor. The balance between power handling and size makes it ideal for various applications, from small-scale DIY projects to more demanding professional setups.

Maximum Output Power and Charging Power: 252W

One of the standout features of this BMS Charger Protection Board is its impressive maximum output power and charging power of 252W. This high power rating ensures that your battery pack can be charged and discharged efficiently, allowing for faster charging times and the ability to power more demanding applications without compromising performance.

This level of power output is particularly beneficial for applications that require a high energy output in a compact form, such as electric bikes, drones, and portable power stations. The 252W power capability ensures that your devices have the energy they need to operate at their full potential, making this BMS board an excellent choice for power-hungry applications.

Durability and Reliability

Durability is a crucial factor when selecting a BMS Charger Protection Board, especially for applications where the battery pack is subject to frequent use and varying environmental conditions. This board is engineered with durability in mind, utilizing high-quality materials and components that are designed to withstand the rigors of continuous use.

The robust construction ensures that the board can endure the physical stresses associated with vibration, impact, and temperature fluctuations. This makes it a reliable choice for applications where durability is a priority, such as in electric vehicles, remote-controlled models, and portable electronics.

Compatibility with 3.6V/3.7V Lithium Batteries

The 18650 3S BMS Charger Protection Board is compatible with nominal voltage 3.6V and 3.7V lithium batteries, which include some of the most commonly used battery types in the industry:

• 18650 Batteries: Known for their high energy density and widespread use in portable electronics, power tools, and electric vehicles.
• 26650 Batteries: Larger than 18650 batteries, these cells offer increased capacity and are commonly used in high-power devices.
• Lithium Polymer (LiPo) Batteries: Known for their lightweight and flexible form factor, LiPo batteries are widely used in drones, RC models, and other applications where weight and shape are critical factors.

This broad compatibility ensures that the BMS board can be used in a wide range of applications, providing a versatile solution for various battery management needs.

Compact and Lightweight Design

The physical dimensions of the 18650 3S BMS Charger Protection Board are another aspect that sets it apart from other options on the market. With a compact size of 59mm x 20mm x 3.4mm, this board is designed to fit seamlessly into even the most space-constrained applications.

This slim profile is particularly advantageous in applications where space is at a premium, such as in portable devices, wearable electronics, and compact power systems. The small footprint of the board allows for easy integration into your projects without adding unnecessary bulk, ensuring that your design remains sleek and efficient.

Charging Voltage: 12.6V – 13.0V

The charging voltage range of 12.6V to 13.0V is perfectly calibrated for 3S lithium battery packs. This voltage range ensures that each cell in the battery pack is charged to its optimal level, maximizing the overall capacity and lifespan of the battery pack.

Maintaining the correct charging voltage is crucial for lithium batteries, as overcharging can lead to reduced battery life and potential safety hazards. The 18650 3S BMS Charger Protection Board is designed to provide precise voltage regulation, ensuring that your battery pack is charged safely and efficiently every time.

High Current Handling: Maximum Output Current of 20A

In addition to its impressive power output, the 18650 3S BMS Charger Protection Board is capable of handling a maximum output current of 20A. This high current capacity makes it suitable for applications that require a significant amount of current, such as high-power LED lighting, electric vehicles, and power tools.

The ability to handle such a high current ensures that the board can deliver the necessary power to your devices without overheating or suffering from performance degradation. This makes it a reliable choice for demanding applications where consistent performance is essential.

Maximum Input Current: 10A

The maximum input current of 10A further enhances the versatility of the 18650 3S BMS Charger Protection Board. This allows the board to be used with a wide range of chargers and power sources, providing flexibility in how you charge your battery pack.

Whether you’re using a dedicated lithium battery charger or a more generic power supply, the 10A input current capacity ensures that the board can handle the charging process efficiently and safely. This adaptability makes it an excellent choice for a variety of charging setups.

Overcharging and Over-discharging Protection

One of the primary functions of the 18650 3S BMS Charger Protection Board is to protect your battery pack from the dangers of overcharging and over-discharging. Overcharging can lead to excessive heat buildup, which can damage the battery cells and reduce their lifespan. Over-discharging, on the other hand, can cause the battery voltage to drop too low, leading to irreversible damage and reduced capacity.

This BMS board is equipped with precise voltage monitoring and regulation circuitry that ensures each cell in the battery pack is charged and discharged within safe limits. This not only protects the batteries from damage but also extends their overall lifespan, ensuring that you get the most out of your investment.

Short Circuit and Overcurrent Protection

In addition to overcharging and over-discharging protection, the 18650 3S BMS Charger Protection Board also provides short circuit and overcurrent protection. These features are crucial for preventing damage to the battery pack and connected devices in the event of a fault condition.

Short circuits can occur if the battery pack terminals are accidentally connected, leading to a rapid discharge of the battery and potential overheating. Overcurrent conditions can arise if the connected device draws more current than the battery pack can safely supply. In both cases, the BMS board intervenes to disconnect the battery pack, preventing damage and ensuring safe operation.

Thermal Management and Safety

Thermal management is a critical aspect of battery management, especially in high-power applications where heat buildup can be significant. The 18650 3S BMS Charger Protection Board is designed with thermal protection features that monitor the temperature of the battery pack and the board itself.

If the temperature exceeds safe limits, the BMS board will automatically reduce the charging or discharging current, or in extreme cases, disconnect the battery pack to prevent overheating. This thermal management ensures that your battery pack operates within safe temperature ranges, protecting both the batteries and the connected devices from potential damage.

Ease of Installation and Use

The 18650 3S BMS Charger Protection Board is designed with ease of installation and use in mind. The board features clearly labeled input and output terminals, making it simple to connect to your battery pack and charger. The compact size and lightweight design further enhance its ease of integration into your projects.

Whether you’re an experienced engineer or a hobbyist just getting started, this BMS board provides a user-friendly solution for managing your lithium batteries. The straightforward design and robust protection features allow you to focus on your project without worrying about the complexities of battery management.

Applications and Use Cases

The versatility of the 18650 3S BMS Charger Protection Board makes it suitable for a wide range of applications, including:

• Electric Vehicles: Power your electric bike, scooter, or other electric vehicle with confidence, knowing that your battery pack is protected and managed efficiently.
• Portable Power Stations: Build custom portable power solutions for camping, emergency backup, or outdoor activities with reliable battery management.
• Drones and RC Models: Ensure long flight times and safe operation for your drones and remote-controlled models with a robust BMS solution.
• Power Tools: Extend the life of your power tool battery packs by protecting them from overcharging, over-discharging, and overcurrent conditions.
• LED Lighting: Use in high-power LED lighting applications where consistent performance and safety are critical.

These are just a few examples of the many applications where the 18650 3S BMS Charger Protection Board can be utilized. Its combination of high power handling, robust protection features, and ease of use make it an ideal choice for a wide variety of projects.

Conclusion

The 18650 3S BMS Charger Protection Board is more than just a battery management tool—it’s a comprehensive solution for ensuring the safety, reliability, and longevity of your lithium battery packs. With its high power output, robust protection features, and compact design, this board is well-suited for a wide range of applications, from DIY projects to professional-grade systems.

Investing in a quality BMS Charger Protection Board is essential for anyone working with lithium batteries. The 18650 3S BMS Charger Protection Board provides the peace of mind that comes from knowing your batteries are protected from the common hazards of overcharging, over-discharging, and overcurrent conditions. Whether you’re powering a small portable device or a high-power electric vehicle, this BMS board is the reliable choice for efficient and safe battery management.

By choosing the 18650 3S BMS Charger Protection Board, you’re not only safeguarding your battery pack but also ensuring that your devices and projects operate at their best. With its combination of power, protection, and versatility, this BMS board is an indispensable component in the world of lithium battery management.
