3144T IC

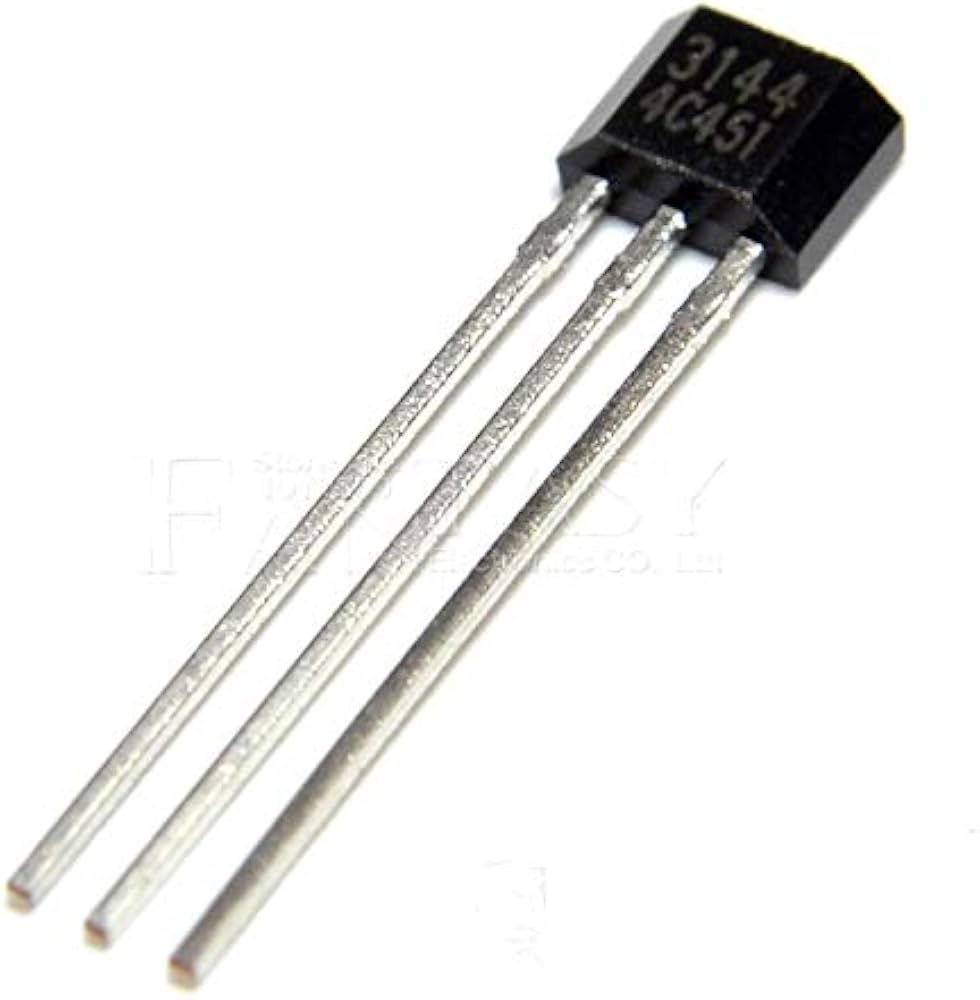

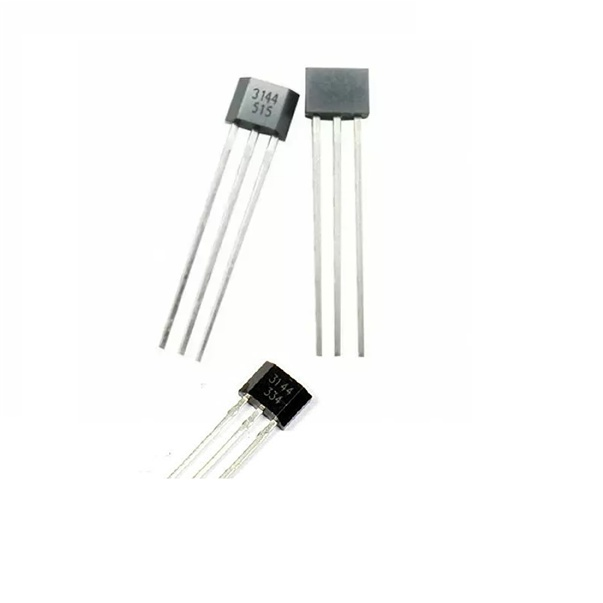

The 3144T is not an IC but rather a Hall effect sensor. Specifically, it is a Hall effect sensor module that detects the presence of a magnetic field. Here?s a brief overview:

### Key Features:

– **Type**: Hall effect sensor module

– **Detection**: Responds to changes in magnetic fields

– **Output**: Typically provides a digital output (high or low) based on the presence of a magnetic field

– **Application**: Commonly used for proximity sensing, position detection, and speed measurement in electronic circuits

### Specifications:

– **Operating Voltage**: Typically operates at 5V DC

– **Current Consumption**: Low power consumption

– **Output Type**: Open-collector output, suitable for interfacing with microcontrollers and digital logic circuits

– **Mounting**: Compact module with mounting holes for easy integration into projects

### Applications:

– **Proximity Switches**: Used to detect the presence or absence of nearby magnets or magnetic fields.

– **Speed Detection**: Measures the speed of rotating objects equipped with magnets.

– **Position Sensing**: Determines the position of objects with respect to magnetic markers.

### How It Works:

The Hall effect sensor detects changes in the magnetic field by generating a small voltage proportional to the magnetic field strength. This voltage is then processed to provide a digital output signal, indicating the presence or absence of the magnetic field.

### Example Use:

– **Door Sensors**: Detects the opening and closing of doors equipped with magnets.

– **Rotary Encoders**: Used for measuring rotational speed and direction in motorized systems.

The 3144T Hall effect sensor module is valued for its simplicity, reliability, and ease of integration into various electronic projects requiring magnetic field detection and proximity sensing capabilities.
