- Mounting Style: Through Hole
- Number of Channels: 1 Channel
- Transistor Polarity: N-Channel
- Vds - Drain-Source Breakdown Voltage: 60 V
- Id - Continuous Drain Current: 32 A
- Rds On - Drain-Source Resistance: 27 mΩ
- Vgs - Gate-Source Voltage: 20 V
- Operating Temperature: -55°C to +175°C
- Configuration: Single
- Channel Mode: Enhancement
- Fall Time: 110 ns
- Power Dissipation (Pd): 79 W
- Rise Time: 210 ns
- Typical Turn-Off Delay Time: 60 ns
- Typical Turn-On Delay Time: 15 ns
Top Selling Products
-
NPR88.00 -
NPR1,649.00
-
NPR549.00
-
NPR76.00
Reviews & Ratings
0
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
Frequently Bought Products
Breadboard Mini
NPR88.00
Heart Beat Sensor (ecg) Ad8232
NPR2,639.00
20K ohm Potentiometer Trimpot
NPR28.00

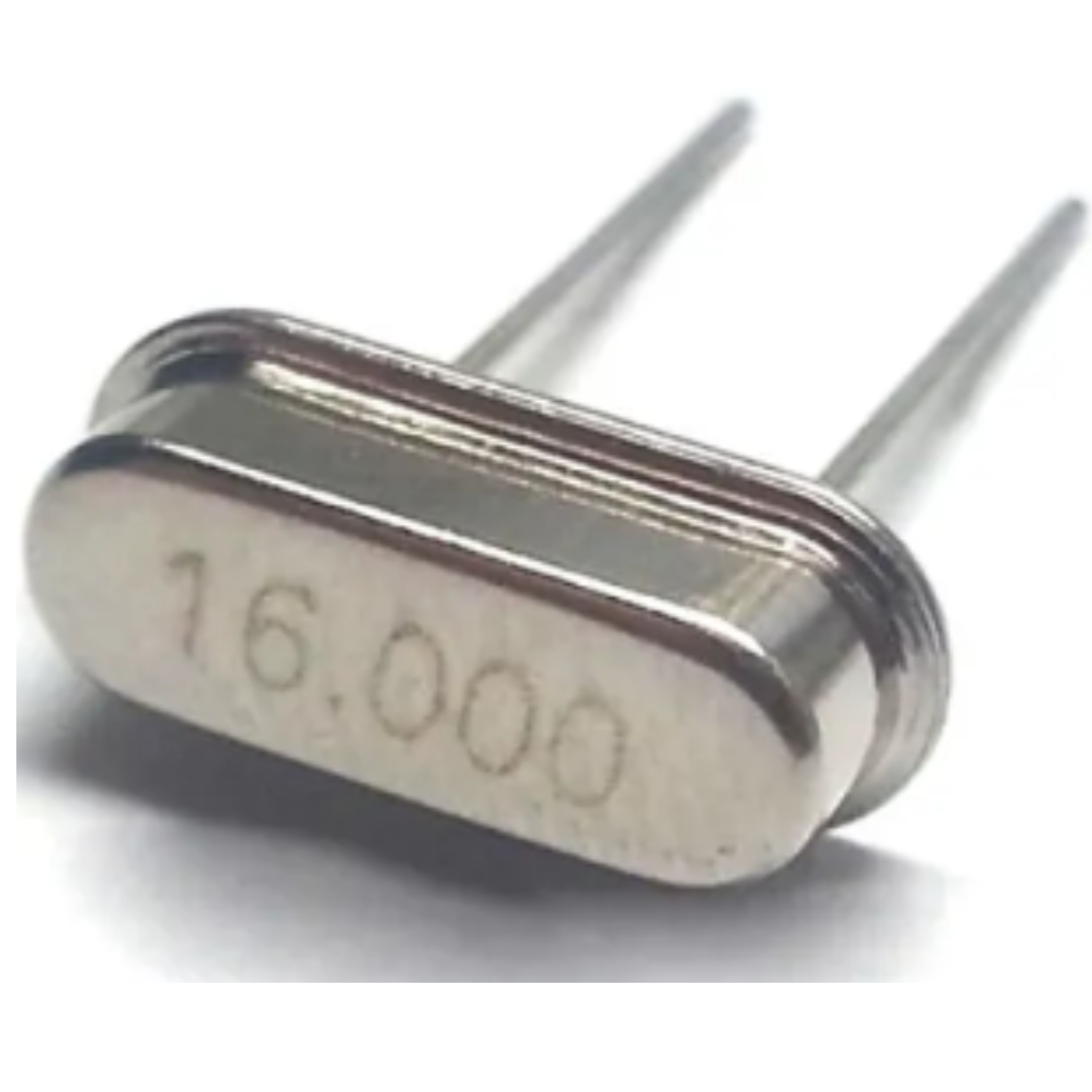

16 Mhz Crystal Oscillator
NPR21.00
LM 317 IC
NPR54.00
Rotary Encoder Brick Sensor Module
NPR186.00
LM339 Voltage Comparator Ic
NPR26.00

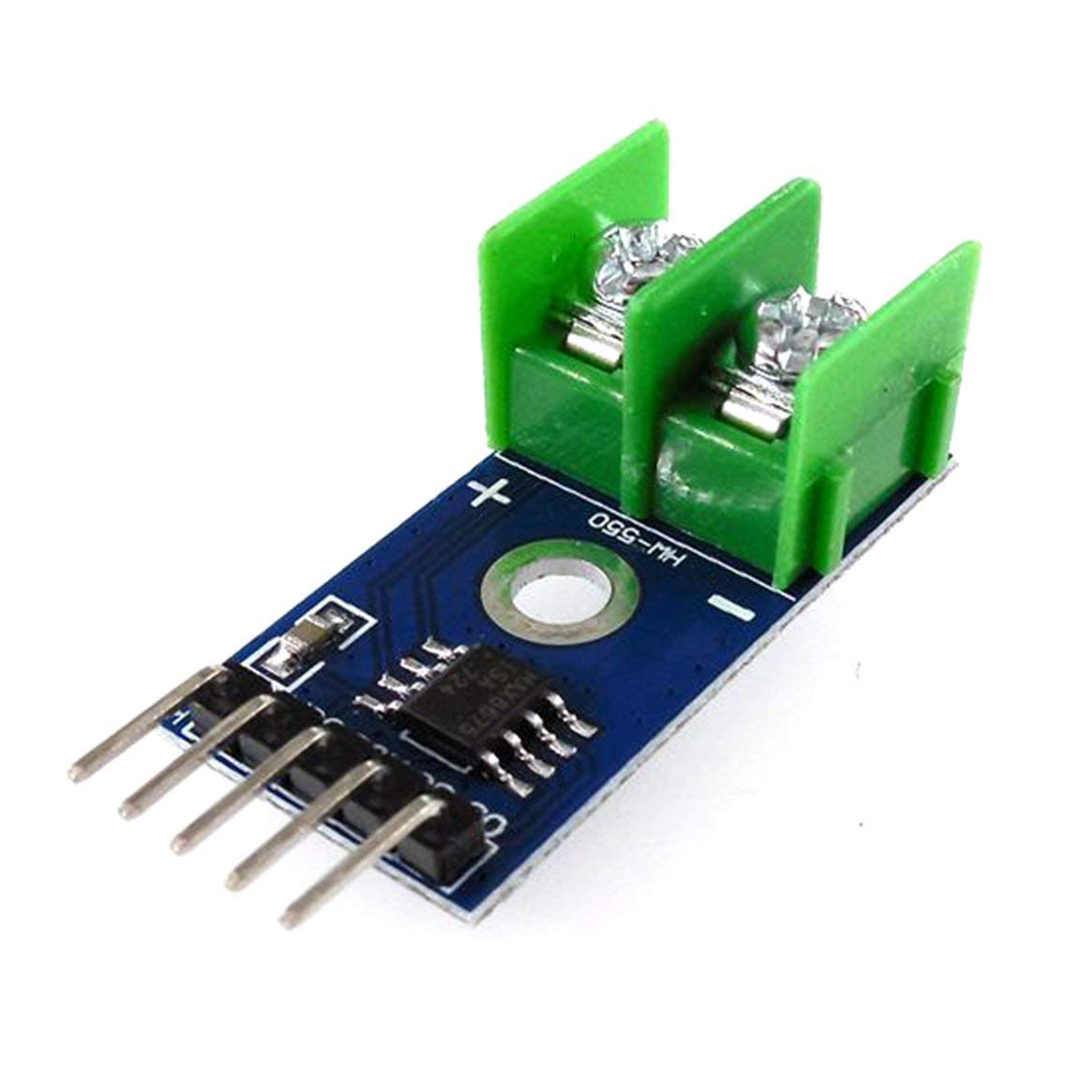

K-Type Thermocouple Module Max6675
