- Input Forward Current: 50mA
- Peak Forward Current: 1A
- Pulse Width: <=100us
- Duty Ratio: 0.001
- Reverse Voltage: 6V
- Power Dissipation: 70mW
- Collector-Emitter Voltage: 35V
- Emitter-Collector Voltage: 6V
- Collector Current: 50mA
- Collector Power Dissipation: 150mW
- Total Power Dissipation: 200mW
- Isolation Voltage: 5000Vrms
- 40-60% RH, AC for 1 min.
- Operating Temperature: -30˚C ~ 100˚C
- Storage Temperature: -55˚C ~ 125˚C
- Pack of 1 Pc

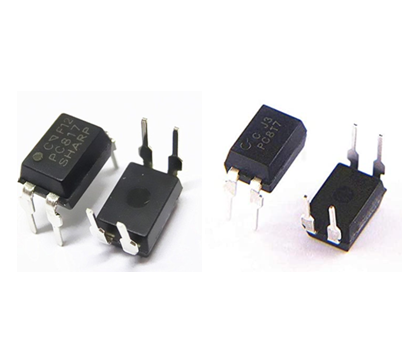

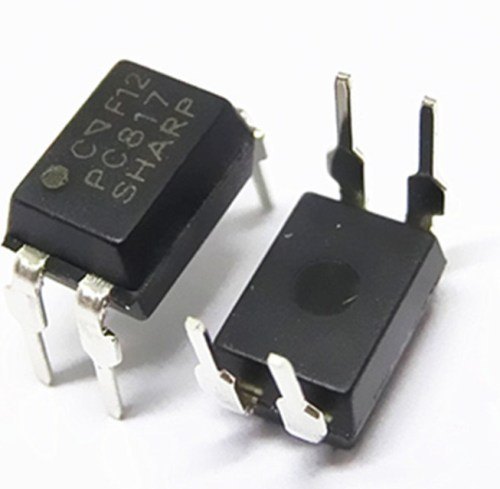

Optocoupler PC817 DIP IC for Electronic Power Circuit Isolation Relay Driving
(0
reviews)
Sold by
RoboNepal
Price
NPR21.00
/pcs
Share
Top Selling Products
-
NPR88.00 -
NPR1,649.00
-
NPR549.00
-
NPR76.00
Reviews & Ratings
0
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
- Input Forward Current: 50mA
Frequently Bought Products
5mm Yellow Led
NPR120.00
24V BMS li-ion 7S 20A
NPR2,498.00
NPR2,899.00
3 pin Green Connector Big
NPR28.00
8*8 Matrix Board * 4
NPR769.00

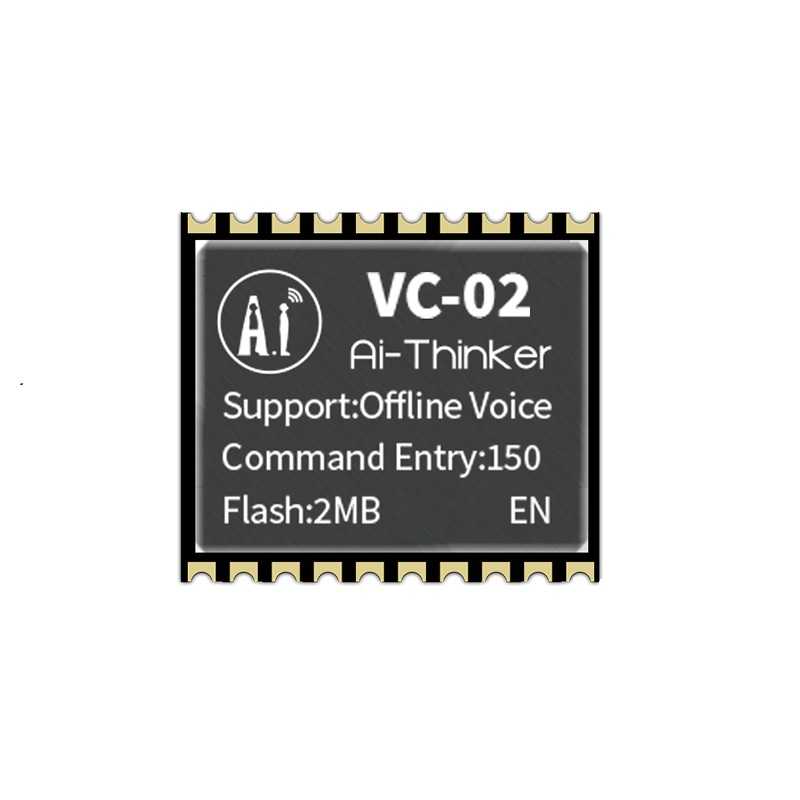

Ai-Thinker VC-02 module
