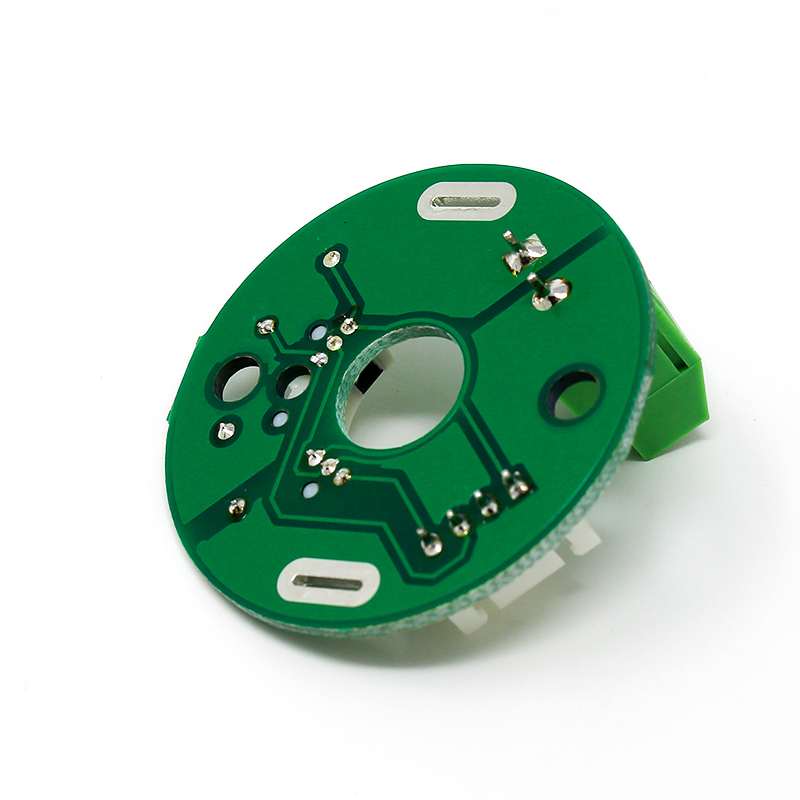

OE-775 Hall Effect Two Channel Magnetic Encoder
This encoder is featured and developed for the series of Orange planetary DC gear motors. The encoder are tested for its precise output and robustness in all electronic as well as environmental parameters listed. So If you wish to add feedback to older or new gear motors this encoder will do the trick as long as your Motor has a long back shaft.
₨ 738.00
Out of stock
Out of stock
15
People watching this product now!
| Input Supply voltage (V) |
4.5 ~ 24 |
|---|---|
| Supply Current (mA) |
14 |
| Output Current (mA) |
< 0.1 |
| Output Leakage Current (μA) |
10 |
| Operating relative humidity |
20% ~ 85% RH |
| Operating Temperature (°C) |
-40 ~ +85 |
| Diameter (mm) |
41.85 |
| Weight (gm) |
25 |
| Shaft ID(mm) |
10.50 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 10 × 8 × 4 cm |

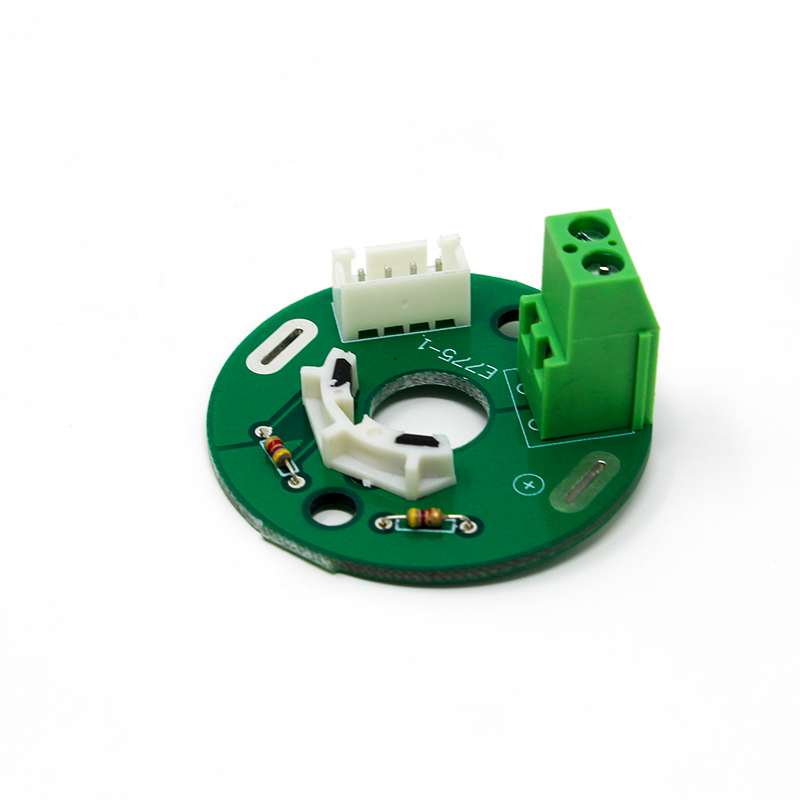

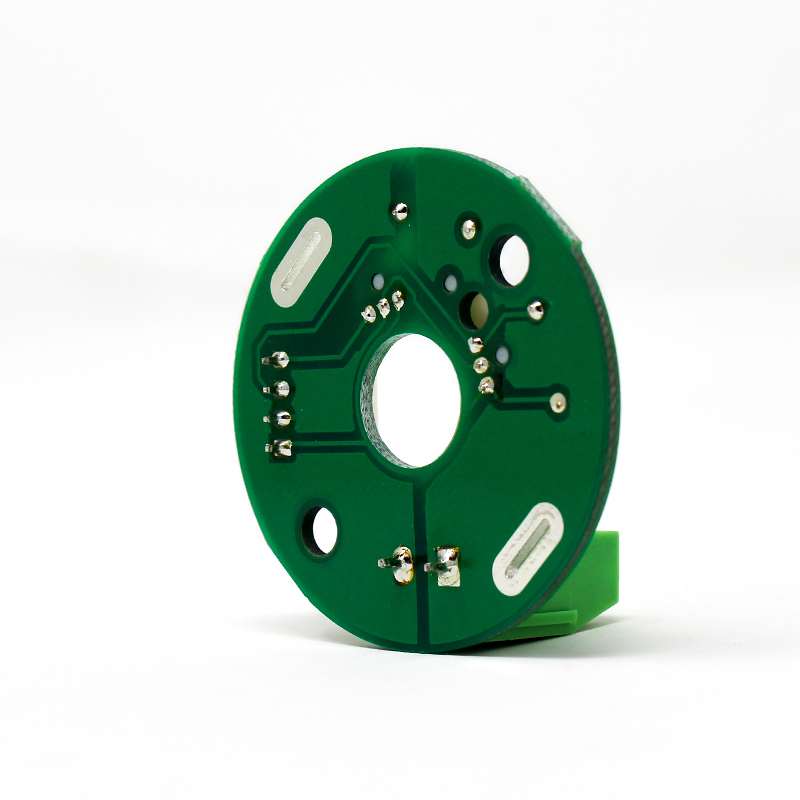

A two-channel Hall effect encoder is used to sense the rotation of a magnetic disk on a rear protrusion of the motor
shaft. The quadrature encoder provides a resolution of 7 counts per revolution of the motor shaft when counting both edges of both channels. The encoder has four i/o pins as shown.
OE-775 Hall Effect Two Channel Magnetic Encoder’s Hall sensor requires an input voltage, Vcc, between 4.5 and 24 V and draws a maximum of 10 mA. The A and B outputs are square waves from 0 V to Vcc approximately 90° out of phase. The frequency of the transitions tells you the speed of the motor, and the order of the transitions tells you the direction.
By counting both the rising and falling edges of both the A and B outputs, it is possible to get 7 counts per revolution
of the motor shaft by both Channels.

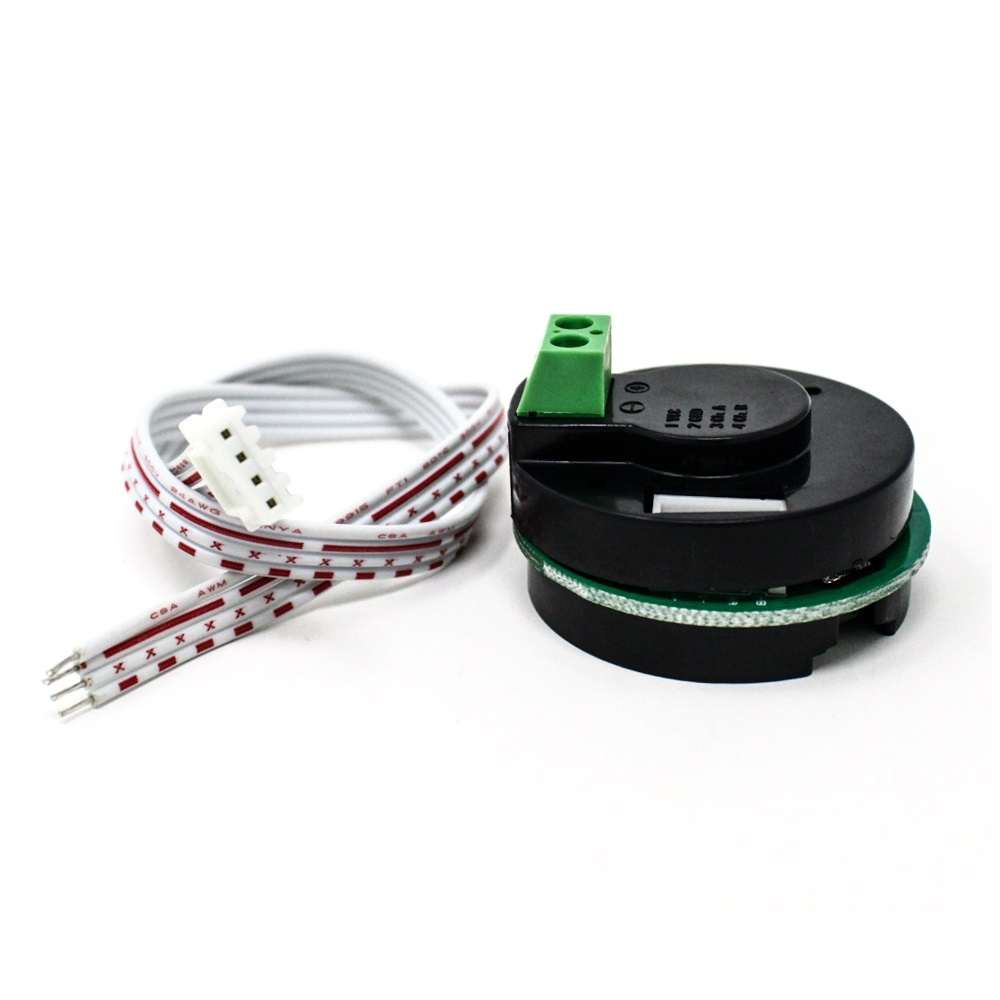

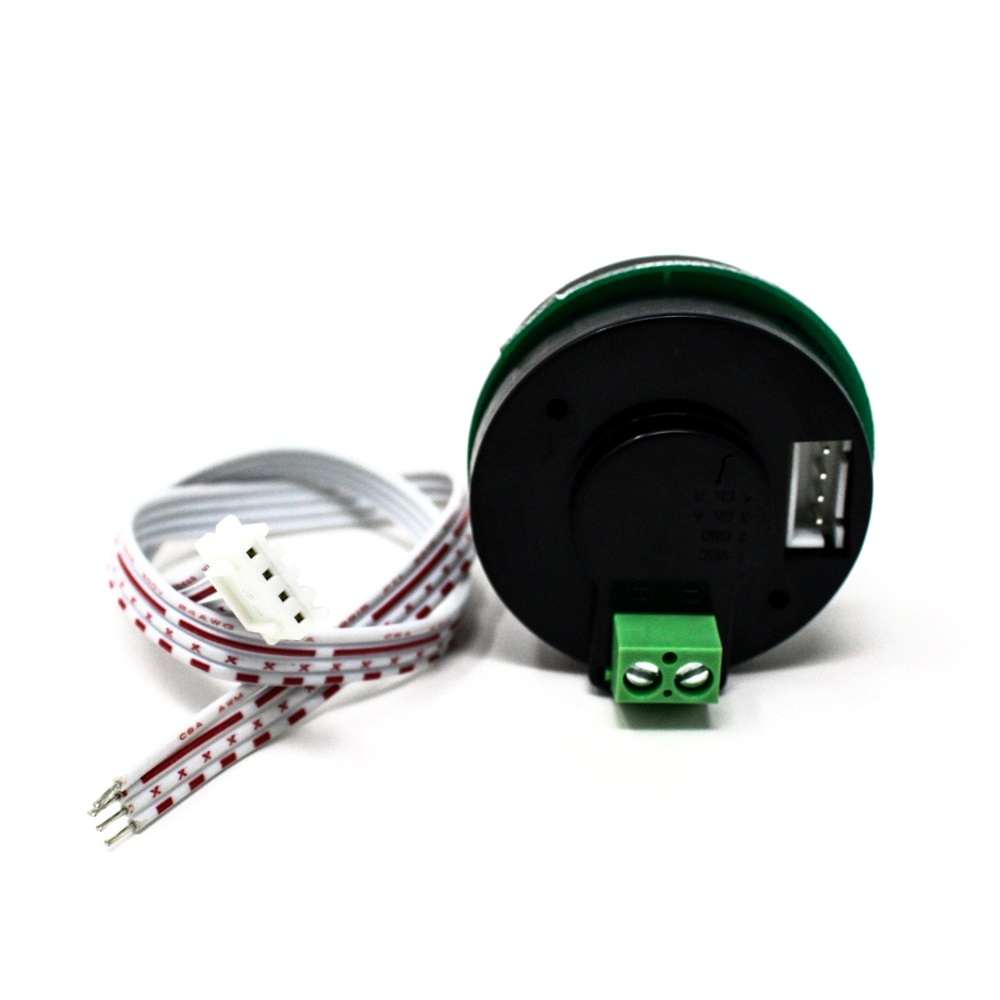

Encoder comes complete accessories required to mount the encoder on motor i.e. plastic case, washer, magnet, connecting cable and set of screws.

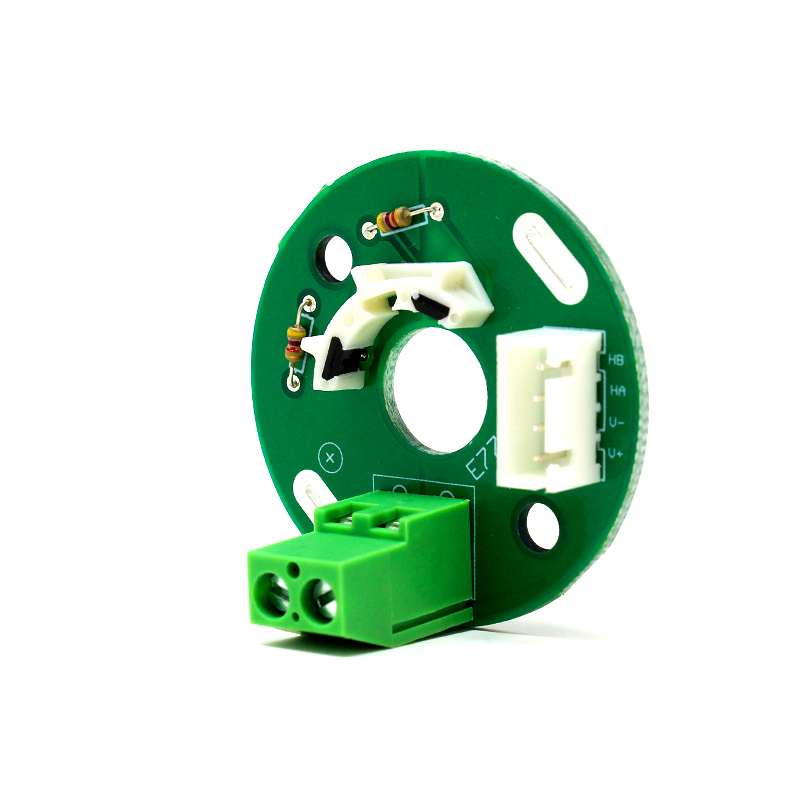

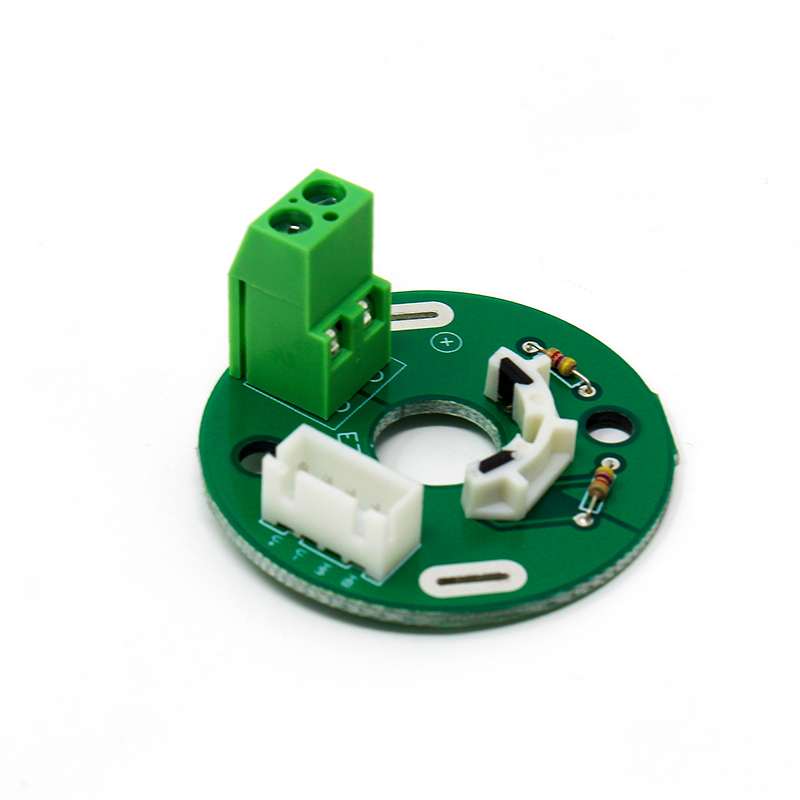

Encoder Pinouts:
- Hall Sensor Vcc
- Hall Sensor GND
- Hall Sensor A Vout
- Hall Sensor B Vout
- Motor –
- Motor +

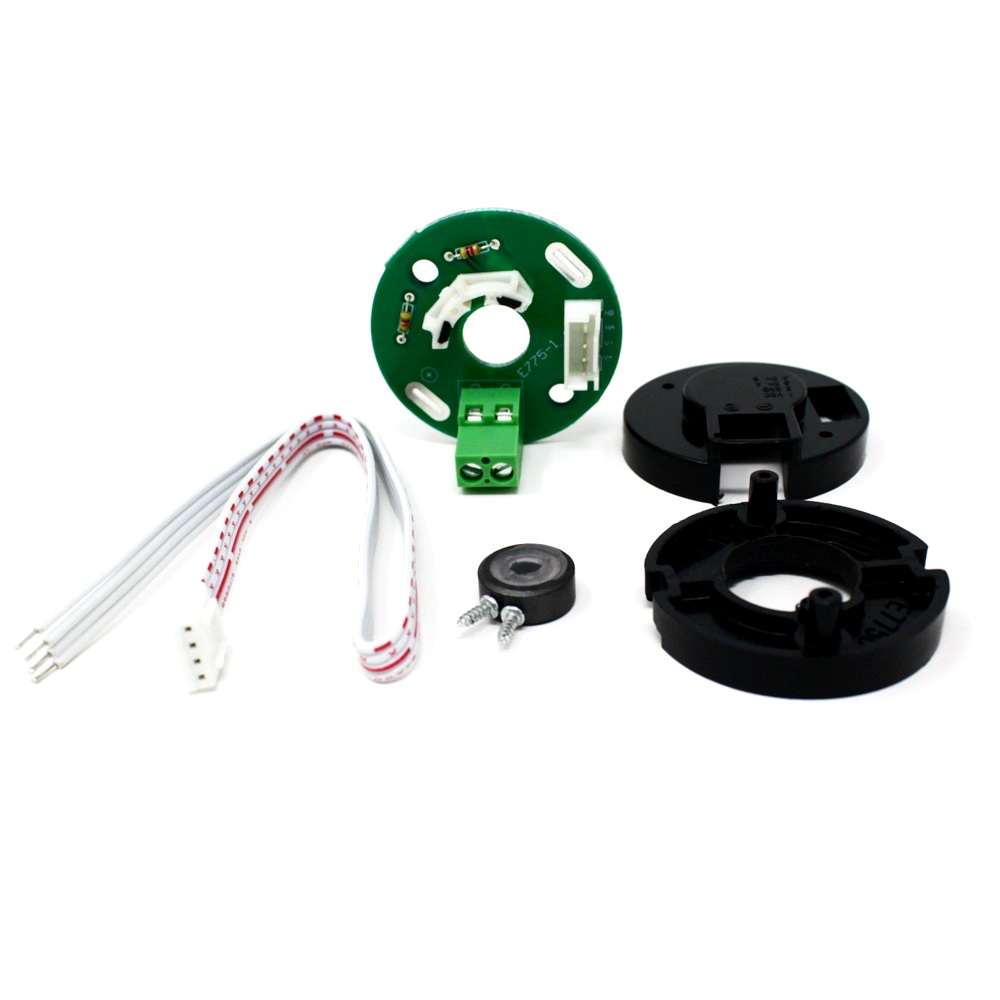

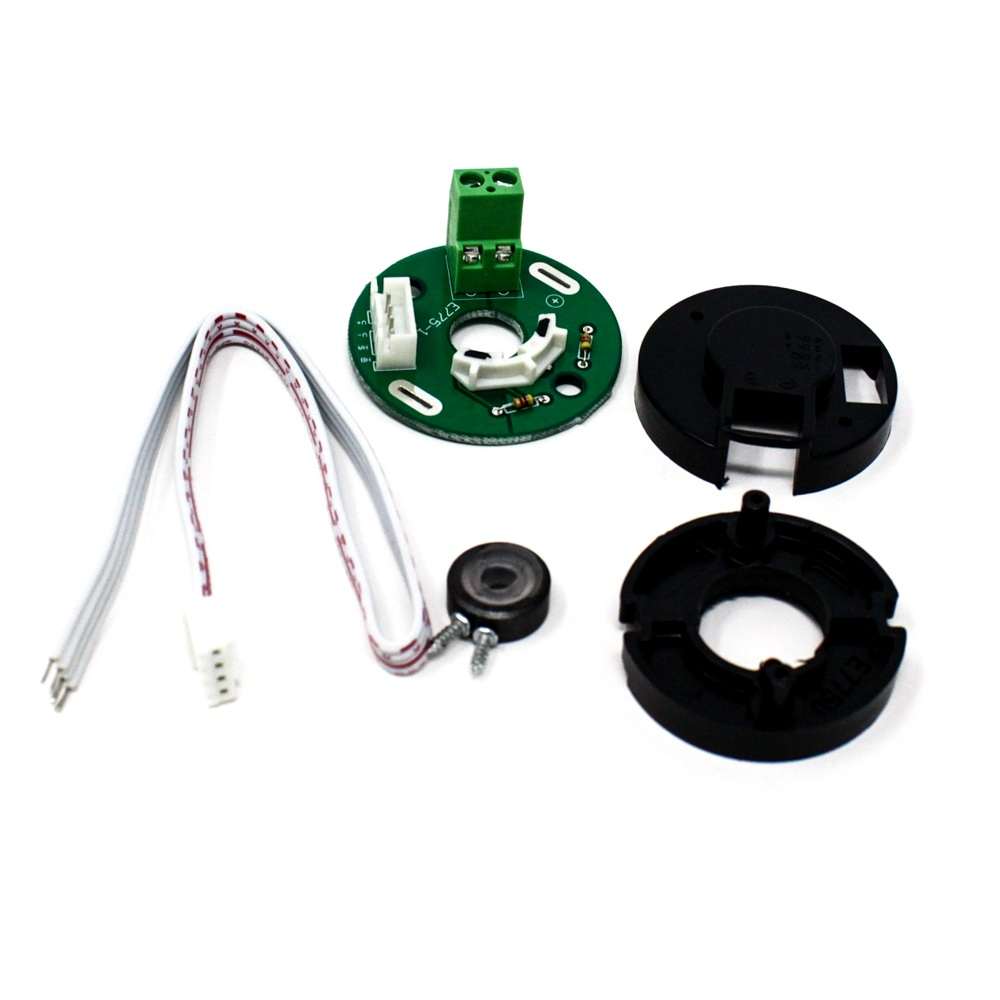

Package Includes:
1 x Encoder Board.
1 x Plastic Case and Washer.
1 x Magnet.

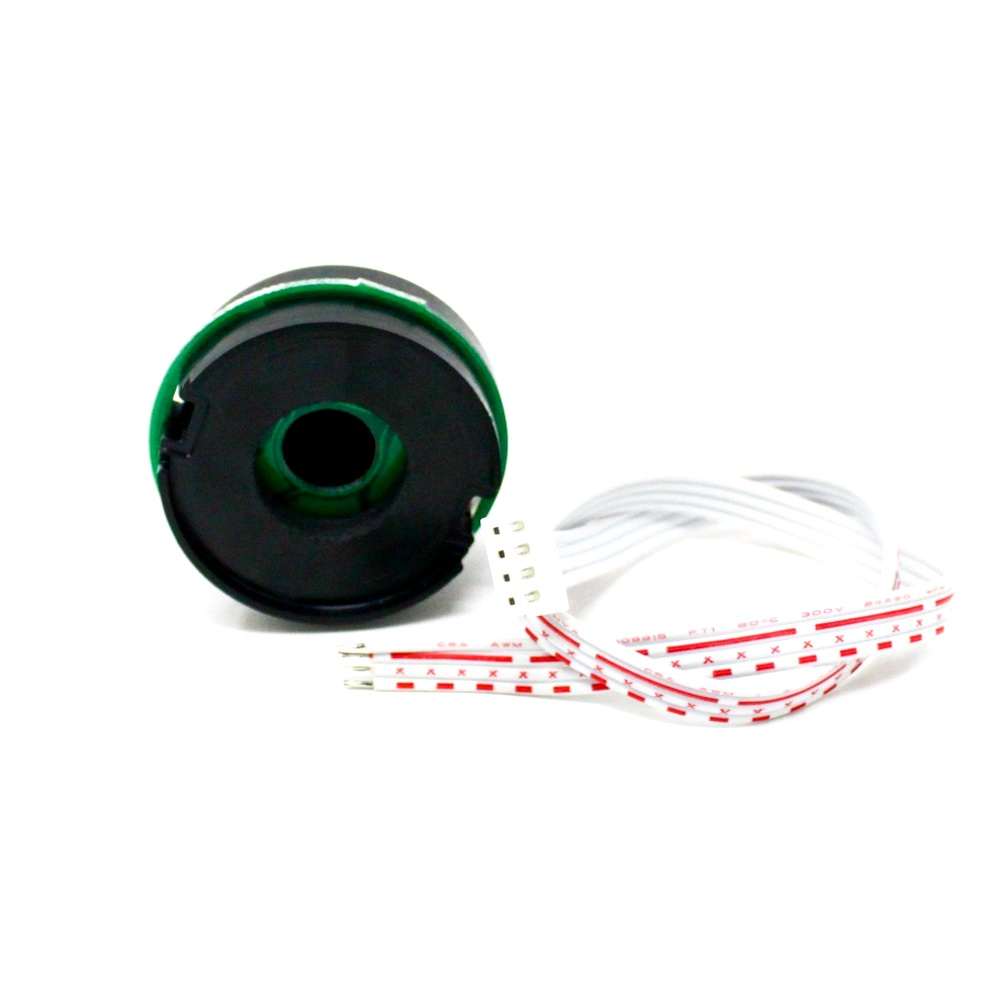

1 x Connecting cable.
2 x Screws.
