Microphone Module Red

Dual Outputs: Analog and digital outputs for versatile use.
Wide Frequency Range: 100 to 10,000 Hz.
Adjustable Sensitivity: Customizable via trim pot.
High Sensitivity: -46 ? 2.0 dB at 1K Hz, with a minimum noise ratio of 58dB.
Compact Design: 43mm x 16mm x 13mm, weighing 0.7 grams.
Reliable Operation: Powered by the LM393 chip, 3.3V-5V range.
Easy Installation: Includes mounting screw hole.

SKU: 136503983

₨ 219.00

0 in stock

Compare

Add to wishlist

15 People watching this product now!

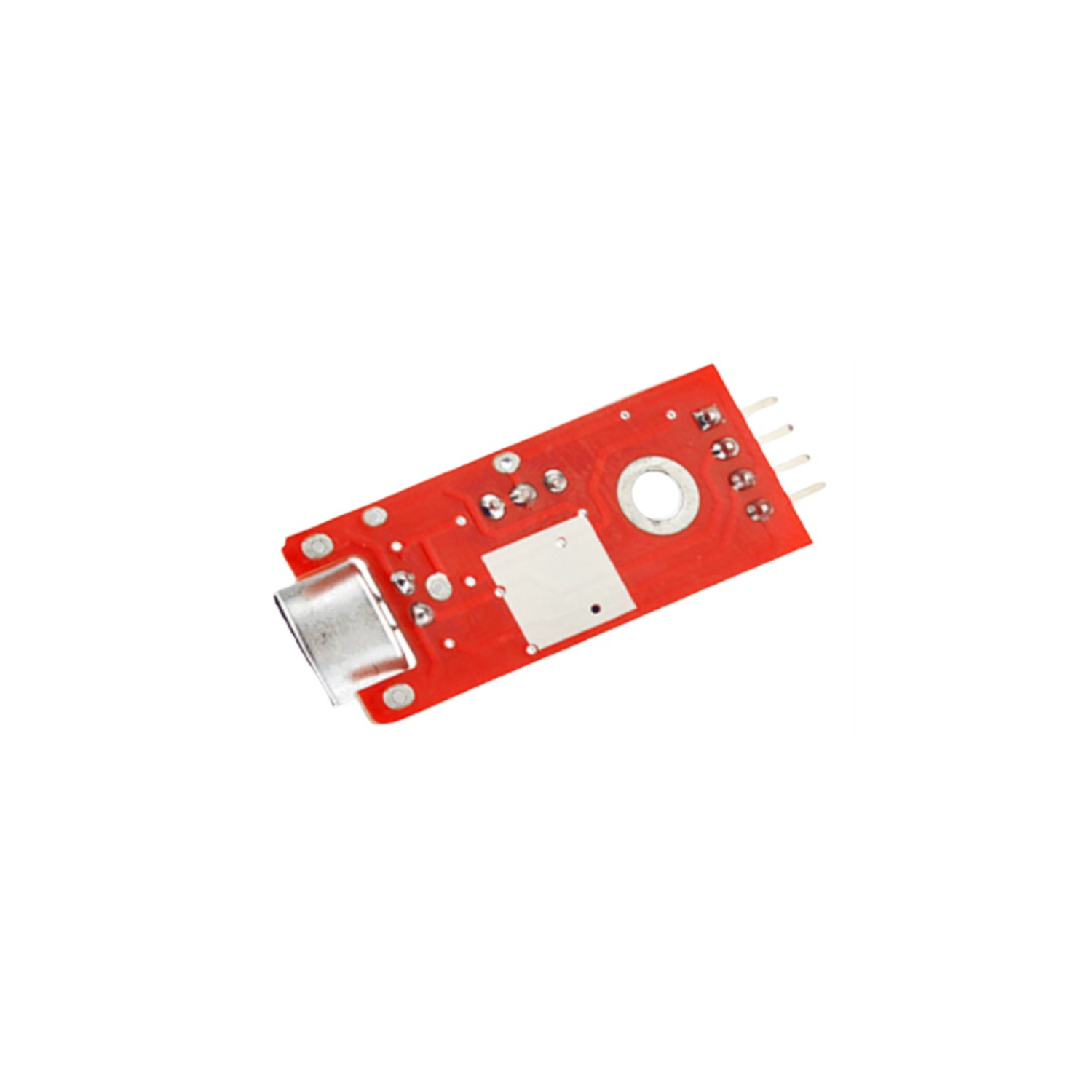

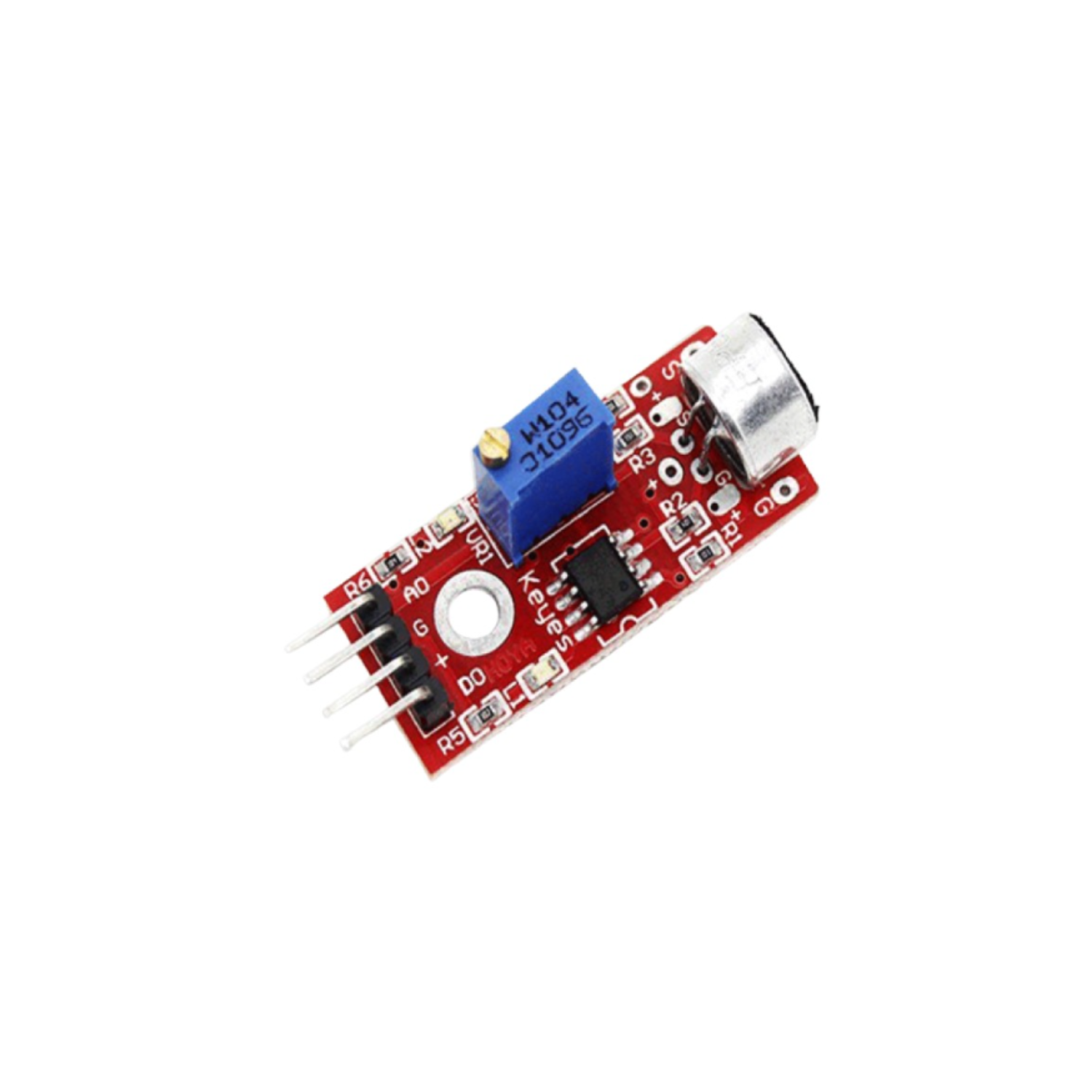

The Microphone Module is a compact and versatile sound detection sensor, perfect for various applications. It features both an Analog Output (AO) for real-time voltage signals and a Digital Output (DO) that triggers high/low signals when sound intensity crosses a threshold. Powered by the LM393 chip, it operates on 3.3V to 5V and offers adjustable sensitivity via a trim pot. The module is designed for easy integration with dimensions of 43mm x 16mm x 13mm and weighs only 0.7 grams.
