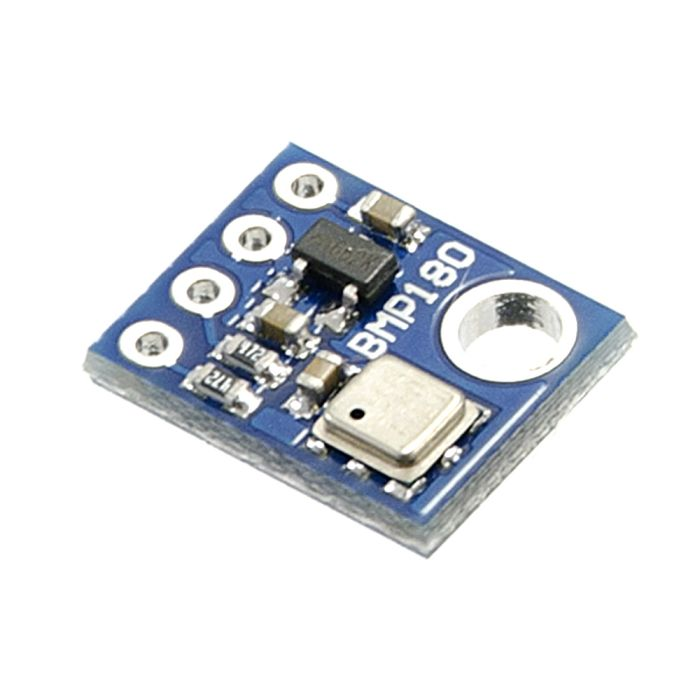

GY-68 BMP180 Sensor Overview
- Type: Barometric pressure sensor module.
- Functionality:
- Pressure Measurement: Measures atmospheric pressure with high accuracy.
- Altitude Calculation: Converts pressure measurements into altitude data.
- Temperature Measurement: Includes a temperature sensor for temperature compensation and readings.
- Specifications:
- Sensor: BMP180 by Bosch Sensortec.
- Pressure Range: 300 to 1100 hPa (hectopascals).
- Resolution: 0.01 hPa (which corresponds to approximately 0.08 meters of altitude difference).
- Temperature Range: -40 to +85°C.
- Operating Voltage: 1.8V to 3.6V (typically powered by 3.3V).
- Interface: I2C (Inter-Integrated Circuit) communication protocol.
- Features:
- High Precision: Accurate pressure and altitude readings, suitable for applications requiring precise measurements.
- Low Power Consumption: Designed for battery-operated devices, offering low power usage.
- Compact Size: Small form factor, making it easy to integrate into various projects.
Typical Uses:
- Weather Stations: Used in DIY and professional weather stations to monitor atmospheric pressure and temperature.
- Altimeters: Integrated into devices that require altitude measurement, such as drones, smartphones, and outdoor equipment.
- Environmental Monitoring: Part of environmental sensing systems for monitoring weather changes and environmental conditions.
Key Benefits:
- Accuracy: Provides high-precision pressure and temperature readings.
- Versatile Applications: Suitable for a wide range of applications from hobbyist projects to advanced environmental monitoring systems.
- Easy Integration: I2C interface allows for simple communication with microcontrollers like Arduino, Raspberry Pi, and other development boards.
Example Applications:
- Weather Station Projects: Measures atmospheric pressure and temperature to provide weather data.
- Drone Altitude Sensing: Helps drones maintain and measure altitude accurately.
- Smartphones and Wearable Devices: Used in portable devices to provide altitude information for navigation and fitness tracking.
How to Use:
- Connect to Microcontroller: Use the I2C interface (SDA and SCL pins) to connect the GY-68 BMP180 module to your microcontroller (e.g., Arduino).
- Power the Sensor: Provide the appropriate operating voltage (typically 3.3V) to the VCC and GND pins.
- Install Libraries: For Arduino, install the Adafruit BMP085/BMP180 library to simplify communication with the sensor.
- Write Code: Use the library functions to read pressure, temperature, and calculate altitude from the sensor.
- Calibrate if Necessary: Depending on the application, you might need to calibrate the sensor for the most accurate readings.
