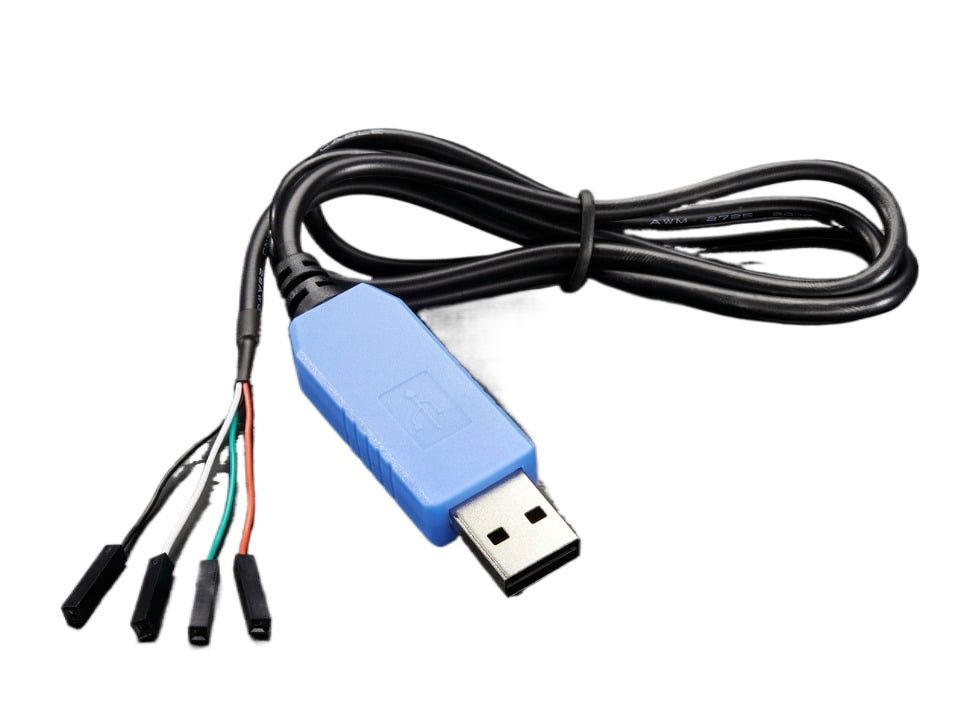

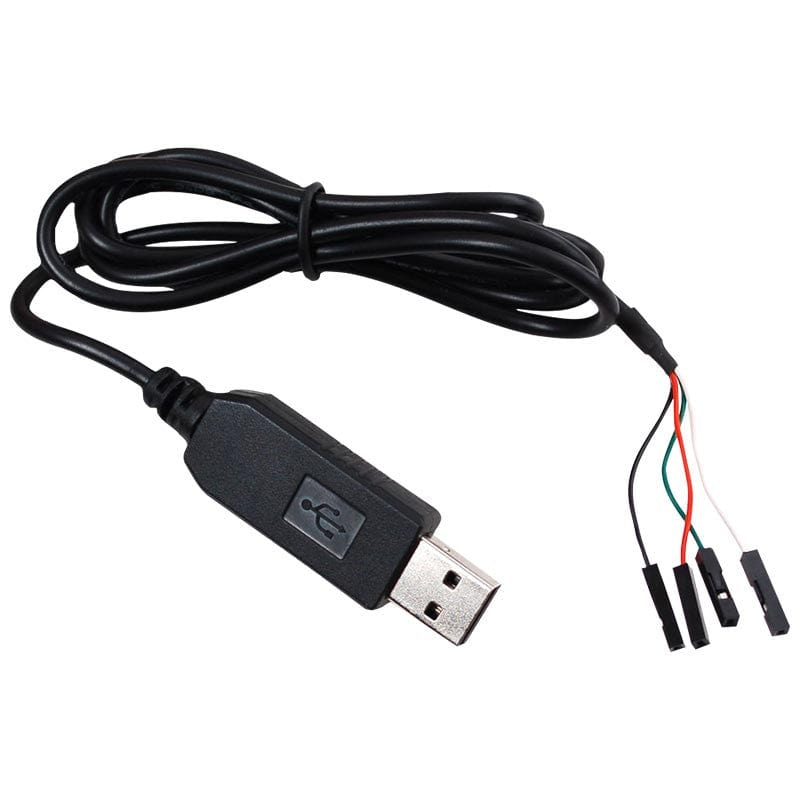

Usb to ttl Cable

### USB to TTL Cable Overview

1. **Type**: USB to TTL Serial Converter Cable

2. **Functionality**:

– **Data Communication**: Converts USB signals from a computer to TTL (Transistor-Transistor Logic) level serial signals, allowing communication with microcontrollers, development boards, and other serial devices.

– **Programming and Debugging**: Commonly used for programming microcontrollers, debugging serial interfaces, and communicating with various embedded systems.

3. **Specifications**:

– **USB Connector**: Typically features a standard USB Type-A or Type-B connector on one end.

– **TTL Connector**: The other end usually has a set of TTL pins (Tx, Rx, Vcc, GND) or a connector such as a JST or header pins.

– **Chipset**: Often includes a chipset like FTDI, CP2102, or CH340 to handle USB-to-TTL conversion.

– **Voltage Levels**: Supports common TTL voltage levels (3.3V and 5V).

4. **Features**:

– **Plug-and-Play**: Requires minimal setup; typically recognized by most operating systems without additional drivers.

– **Versatility**: Compatible with a wide range of microcontrollers and development boards, including Arduino, Raspberry Pi, and ESP8266.

– **LED Indicators**: Some models include LED indicators for power, transmit (Tx), and receive (Rx) signals.

### Typical Uses:

– **Microcontroller Programming**: Used to upload code to microcontrollers such as Arduino, ESP8266, and others.

– **Serial Communication**: Facilitates communication between a computer and a serial device for data transfer, monitoring, and debugging.

– **Embedded Systems Development**: Essential tool for developing and debugging embedded systems and IoT projects.

### Key Benefits:

– **Convenience**: Simplifies the process of interfacing with microcontrollers and serial devices via USB.

– **Versatility**: Supports a wide range of devices and applications, making it a valuable tool for developers and hobbyists.

– **Ease of Use**: User-friendly, with minimal setup required for most operating systems.

### How to Use:

1. **Connect USB**: Plug the USB end of the cable into a USB port on your computer.

2. **Connect TTL**: Attach the TTL pins (Tx, Rx, Vcc, GND) to the corresponding pins on your microcontroller or serial device.

3. **Install Drivers**: If necessary, install the appropriate drivers for the chipset (e.g., FTDI, CP2102) on your computer.

4. **Open Serial Monitor**: Use a serial terminal program (e.g., PuTTY, Tera Term, Arduino IDE Serial Monitor) to communicate with the device.

### Example Applications:

– **Arduino Programming**: Upload sketches to Arduino boards without built-in USB-to-serial converters.

– **ESP8266/ESP32 Debugging**: Monitor and debug serial output from ESP8266 or ESP32 development boards.

– **Serial Data Logging**: Collect and log data from sensors and serial devices to a computer for analysis.

### Installation Tips:

– **Check Voltage Levels**: Ensure the voltage level (3.3V or 5V) matches the requirements of your target device to avoid damage.

– **Correct Pin Connections**: Verify correct connections of Tx and Rx pins (Tx of cable to Rx of device and vice versa).

– **Driver Installation**: Install the necessary drivers for your operating system if the cable is not recognized automatically.

### Advantages:

– **Universal Compatibility**: Works with a broad range of microcontrollers and serial devices.

– **Compact and Portable**: Easy to carry and use, making it ideal for on-the-go programming and debugging.

– **Reliable Communication**: Provides stable and reliable serial communication between a computer and embedded systems.

A USB to TTL cable is an essential tool for anyone working with microcontrollers, development boards, and other serial devices. It simplifies the process of programming, debugging, and serial communication, making it a versatile and valuable addition to any electronics toolkit.
