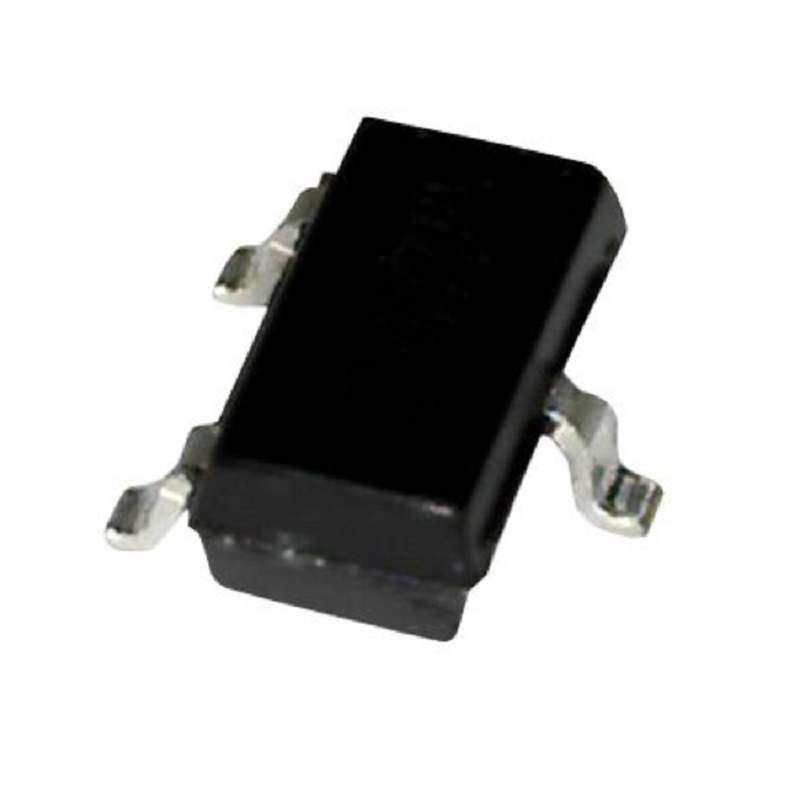

TL431BIDBZR, 215 NEXPERIA Voltage Reference, Precision, Shunt – Adjustable, AEC-Q100 TL431 Series, 2.495V to 36V, SOT-23-3

This is TL431BIDBZR, 215 NEXPERIA Voltage Reference, Precision, Shunt – Adjustable, AEC-Q100 TL431 Series, 2.495V to 36V, SOT-23-3 IC.  It belongs to Three-terminal shunt regulator family with an output voltage range between Vref and 36 V, to be set by two external resistors.

1. The TL431xDBZR types feature an enhanced stability area with a very low load capacity requirement.
2. The TL431xFDT types offer an enhanced stability area and a higher ElectroMagnetic Interference (EMI) ruggedness, for example, for Switch Mode Power Supply (SMPS) applications.
3. The TL431xSDT types are designed for standard requirements and linear applications.

Applications:

Automotive

Note: Refer to datasheet in the attachments section for more info. regd. the product.

Features:

1. Programmable output voltage up to 36 V
2. Three different reference voltage tolerances:
3. Standard grade: 2 %
4. A-Grade: 1 %
5. B-Grade: 0.5 %
6. Typical temperature drift: 6 mV (in a range of 0 C up to 70 C)
7. Low output noise
8. Typical output impedance: 0.2 ohm
9. Sink current capability: 1 mA to 100 mA
10. AEC-Q100 qualified (grade 1)

Package Includes:

1 x TL431BIDBZR, 215 NEXPERIA Voltage Reference, Precision, Shunt – Adjustable, AEC-Q100 TL431 Series, 2.495V to 36V, SOT-23-3
