SS34 DIODE DO214AC(Reel of 2000)

SS34 Schottky Diode for High-Speed Switching is a semiconductor diode formed by the junction of semiconductor and metal. It has a low forward voltage drop and a very fast switching action. The diode is ideal for free-wheeling, secondary rectification, and reverse polarity protection applications.

Features:

1. Guard ring for overvoltage protection
2. Low power losses, high efficiency
3.  Low forward voltage drop
4.  High surge capability
5. Maximum repetitive peak reverse voltage(VRRM): 40V
6. Maximum RMS voltage (VRMS): 28V
7. Maximum DC blocking voltage (VDC): 40V
8. Maximum average forward rectified current at TL (IFAV): 3A
9. Peak forward surge current(IFSM): 100A
10. Voltage rate of change (rated VR) (dV/dt): 10,000V/μs
11. Operating junction temperature range (TJ):  -55 to +125°C
12. Storage temperature range (TSTG):  -55 to +150°C

Package Includes:

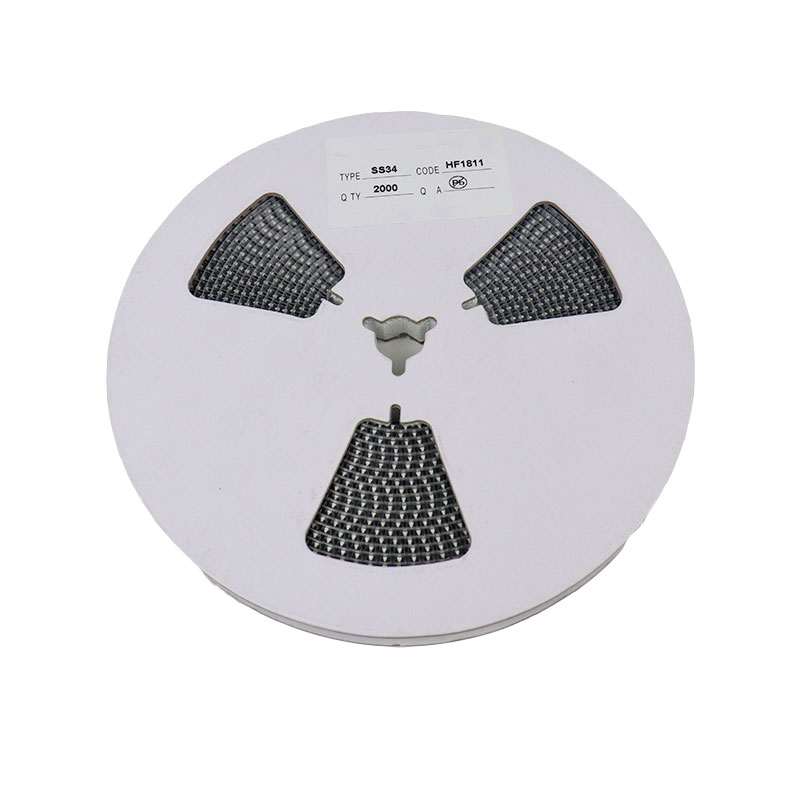

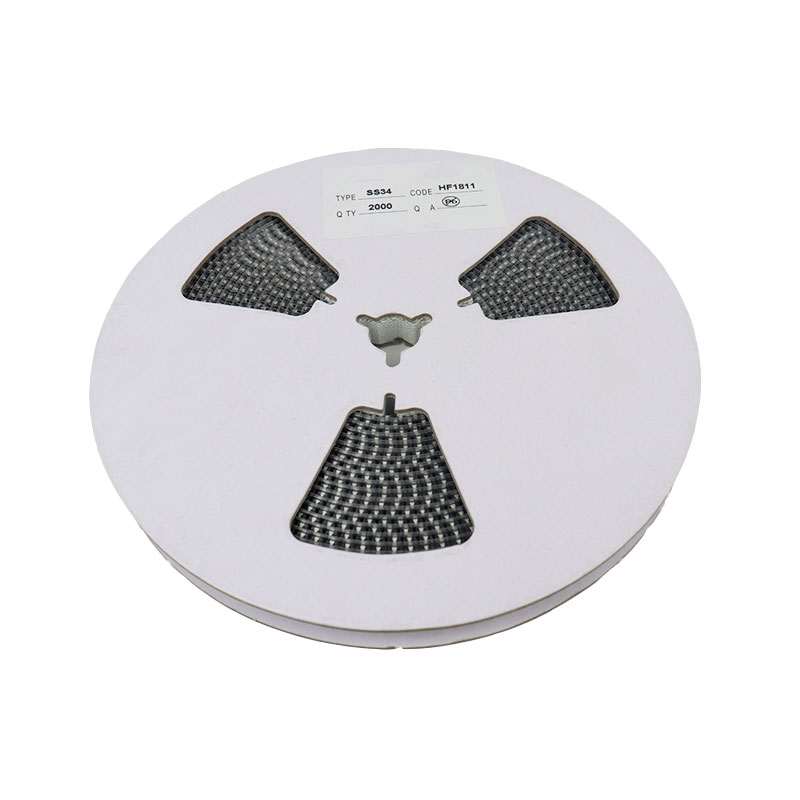

1 x SS34 DIODE DO214AC(Reel of 2000)
