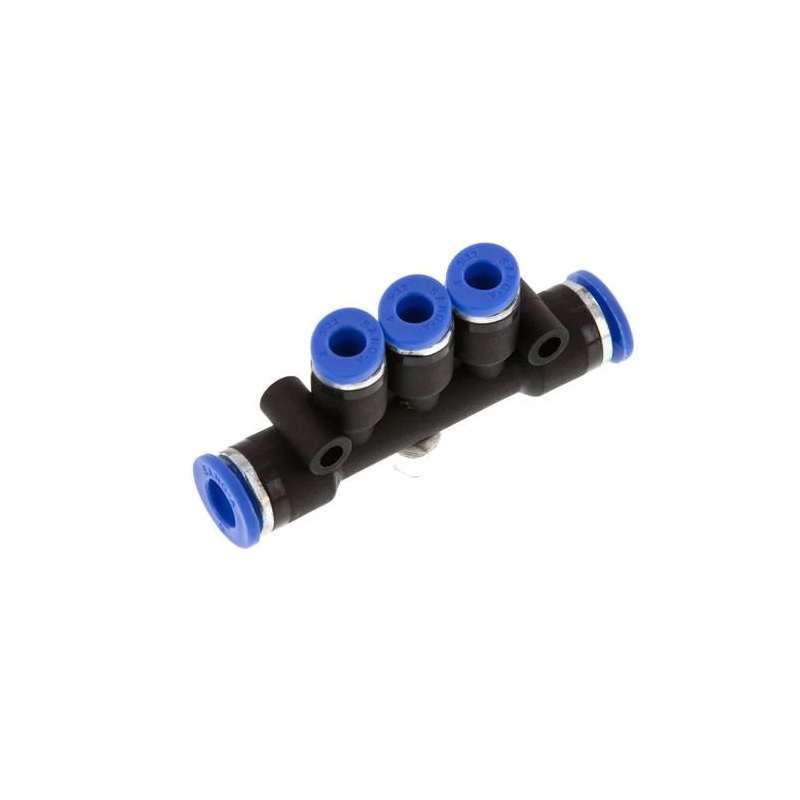

PU CONNECTOR PK 06 (6mm OD Union Manifold)

  1. Model: PK 06 3-way manifold
  2. Material: Brass/PA 66
  3. Seal material: BR (nitrile rubber)
  4. Push-in connection: 6 mm
  5. Push-on connection (smaller): 4 mm
  6. Fitting features: Vacuum
  7. Min pressure: -0.95

 458.00

Out of stock

Out of stock

17 People watching this product now!
Item Type:

Union Type

Model Type

PK Union Manifold

Outer Diameter (OD) (mm)

6

Connector Type

PU

Model Series:

PK

Model No.

PK 06

Color:

Black, Blue

Push-in connection

6 mm

Push-on connection

4 mm

Connection type

Push-in

Min pressure

-0.95

Max pressure

20, at 20 °C (bar)

Operating Temperature (°C)

-20 to 80

Material:

Brass/PA 66

Seal material

BR (nitrile rubber)

Fitting features

Vacuum

Shipping Weight 0.018 kg
Shipping Dimensions 7 × 4 × 2 cm

This is a 3-way manifold. Push-in fittings are ideal to create fast and reliable connections for pneumatic hoses. It has three outlet ports with 4 mm push-in connection and two inlet ports with 6 mm push-in connection. The body is made of brass / PA 66. The connection ports are made of brass and PA 66. The seal material is NBR. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 80 °C (-4 to 176 °F). The push-in fitting is easily installed by pushing the pneumatic tube against the release ring-end of the fitting until it stops, and the internal claw secures it into place. It is easily uninstalled by pushing the release ring inward towards the fitting and pulling the tubing back.


Features:

  1. Easy to use
  2. Easy to install
  3. Good quality product

Packages Includes:

1 x PK 06 (6mm OD Union Manifold)
