Data Sheet

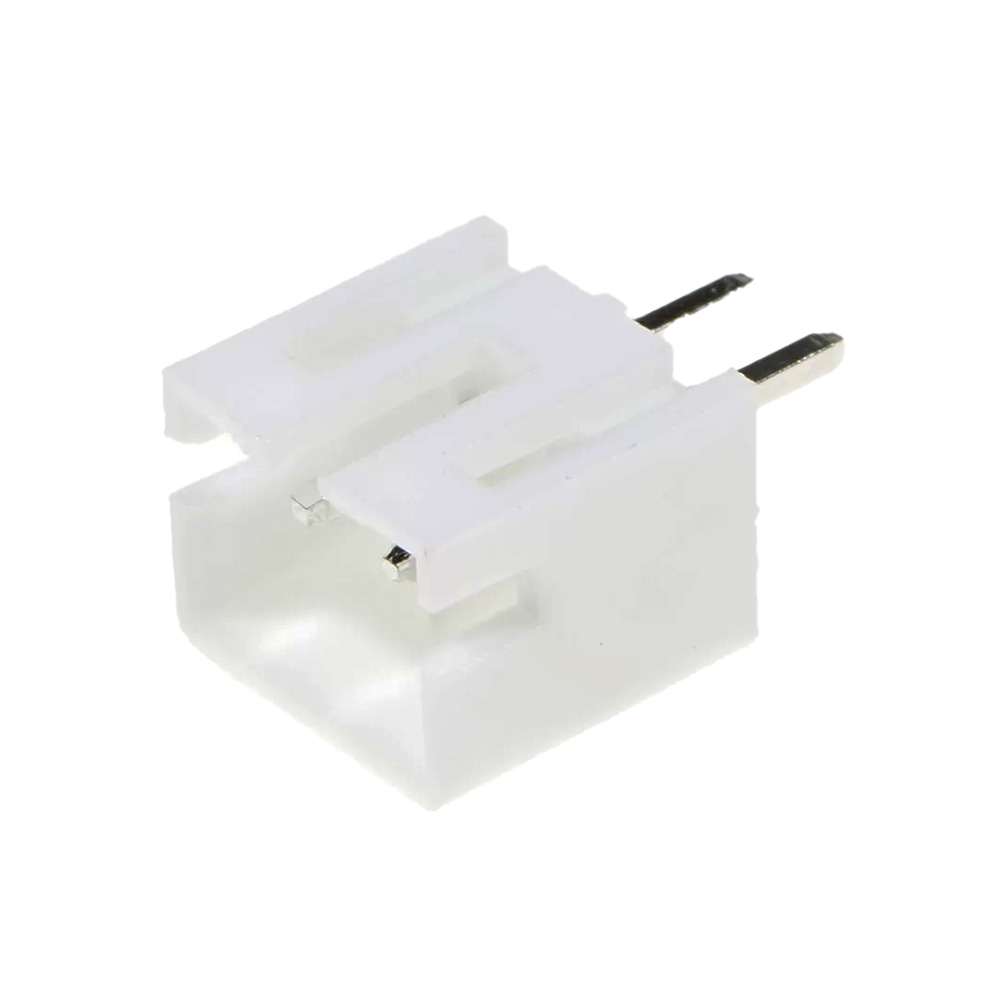

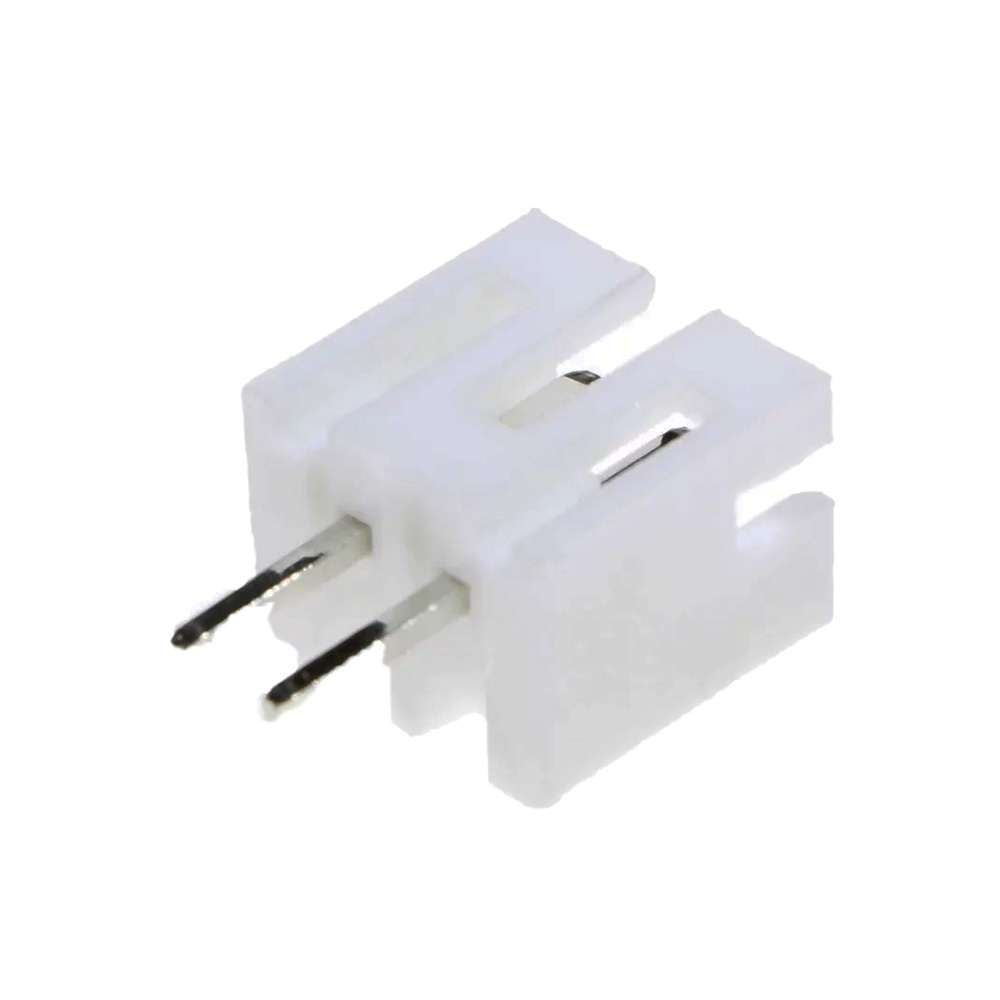

PH-A-2mm-2 pin Wafer Male Connector Through Hole Straight
- MPN:PH-A
- Brand: BOYU
- 2-pin configuration.
- Rated for a current of 2A AC/DC and voltage up to 250V AC/DC.
- Wide operating temperature range from -25°C to +85°C.
₨ 0.80
Out of stock
Out of stock
15
People watching this product now!
| Connector Type |
Wafer Male Connector |
|---|---|
| Number of Pins |
2 |
| Mounting Type |
Through Hole Straight |
| Rated Current (A) |
2A AC,DC (AWG #24) |
| Rated Voltage (V): |
250 |
| Operating Temperature (°C) |
-25 to +85 |
| Contact Resistance |
10MΩ max |
| Insulation Resistance (MΩ) |
1000 |
| Wires |
AWG #30 to #24 |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
The PH-A-2mm-2 pin Wafer Male Connector offers seamless electrical connections with its compact design and through-hole straight mounting. With a pin size of 2mm and two pins, it supports a rated current of 2A AC/DC and a voltage rating of 250V AC/DC. Its temperature range spans from -25°C to +85°C, ensuring versatility in various operating environments. The connector guarantees reliability with its high insulation resistance of 1000MΩ and a contact resistance of 10MΩ.
Features:
- Facilitates compact electrical connections.
- 2-pin configuration for simplicity.
- Straight through-hole mounting for ease of installation.
- Robust construction for durability.
- Suitable for a wide temperature range (-25°C to +85°C).
- High-rated current and voltage for versatile applications.
Package includes:
1 x PH-A-2mm-2 pin Wafer Male Connector Through Hole Straight
