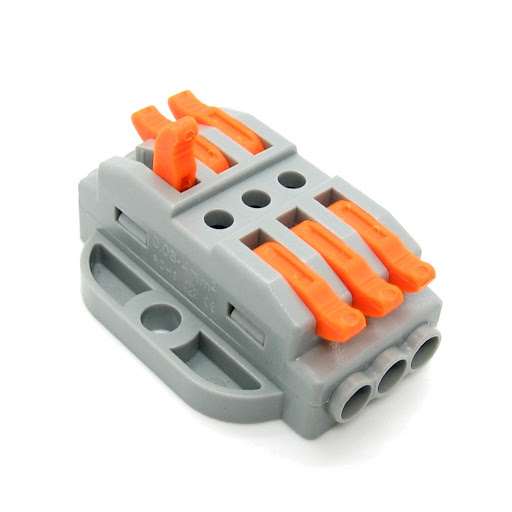

PCT-223-3 Stationary Type Quick Connection Terminal

This is a PCT-223-3 Stationary Type Quick Connection Terminal.

This  PCT-223-3  0.08~4.0 mm2  3 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.08~4.0 mm2 area or soft wire with 0.08~4.0 mm2 area. This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A and the Rated impulse Voltage is about 4 kV. The Strip length of the Connector is about 9-10 mm. Also, this connector is compatible with 28~12 AWG.

These connectors are available with different optional models, different sizes, and No. pole on which cables are locked as below Click on it to buy according to your requirement.

Features:

1. Fast and easy to use
2. The right terminal block and connector for every application
3. Minimal space requirements enable high wiring density
4. Clearly organized wiring in control cabinets and junction boxes
5. Maintenance-free installation
6. Permanent, secure connections

Specifications:

1. Rated voltage: 600V
2. Rated current: 32A
3. Number of poles: 3
4. Wire section :0.08~4.0mm2
5. Number of clamps: 6

Package Includes:

1 x PCT-223-2 Stationary Type Quick Connection Terminal
