TT555 Drawing
Orange TT555 12V 30RPM Motor Test Report

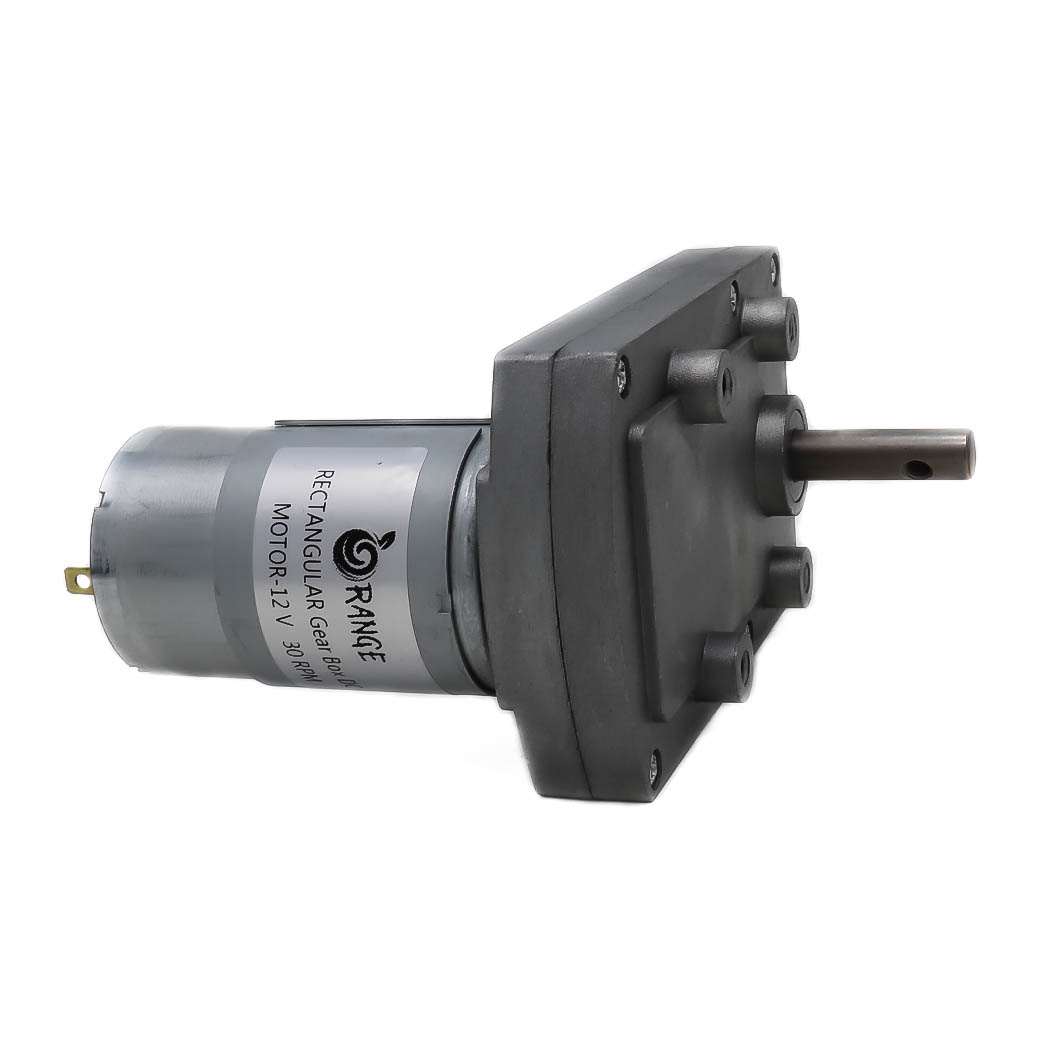

Orange TT555 12V 30RPM Rectangular gearbox DC motor for DIY Project Encoder Compatible
- Rated current (mA): ≤2000.
- Rated power (W): 5.624.
- Rated Torque (N-m): 1.983
- Rated speed: 27 RPM.
- Shaft length (mm): 27.
- Shaft diameter (mm): 8.
- Base motor RPM: 4500.
- Back shaft for Encoder Available
₨ 100.10
Out of stock
Out of stock
15
People watching this product now!
| Rated Torque (N-m) |
1.983 |
|---|---|
| Rated Power (W) |
5.624 |
| Rated Speed (RPM) |
25 ~ 27 |
| Shaft Length (mm) |
27 |
| Shaft Diameter (mm) |
8 |
| Base Motor Rated RPM |
4500 |
| Gear Ratio |
149 : 1 |
| Length (mm): |
116 |
| Width (mm): |
95 |
| Height (mm): |
60 |
| Weight (g): |
530 |
| Shipping Weight | 0.55 kg |
| Shipping Dimensions | 9 × 6 × 5 cm |
This Orange TT555 12V 30RPM Rectangular gearbox DC motor is high torque motor i.e. 19.83 N-cm with a gear ratio of 149K. The main feature of this motor is it has a 27mm long shaft with M4 tapping and a diameter of 8mm.
Normally the motor available in the market is having a shaft length of 20 ~ 22 mm long; but we have customized the shaft of this motor to meet customers’ requirements. So it’s too easy to mount a wheel or any type of coupling on the shaft.
The applications of this Orange TT555 12V 30RPM Rectangular gearbox DC motor are Central air conditioning valve, Amusement equipment, Coin refund devices, Grill, Oven; Peristaltic pump, ATM bank automatic system, Medical equipment, Office equipment, Household appliance, Automatic actuator and many more.
Features:
- Lightweight and compact-sized motor with high performance.
- 27mm long customized shaft for ease of mounting.
- The Shaft is D type hence wheel/ coupling arrangement is simple.
- The motor is useful for hobbyists and for DIY projects.
Package Includes:
1 x Orange TT555 12V 30RPM Rectangular gearbox DC motor for DIY Project Encoder Compatible.
