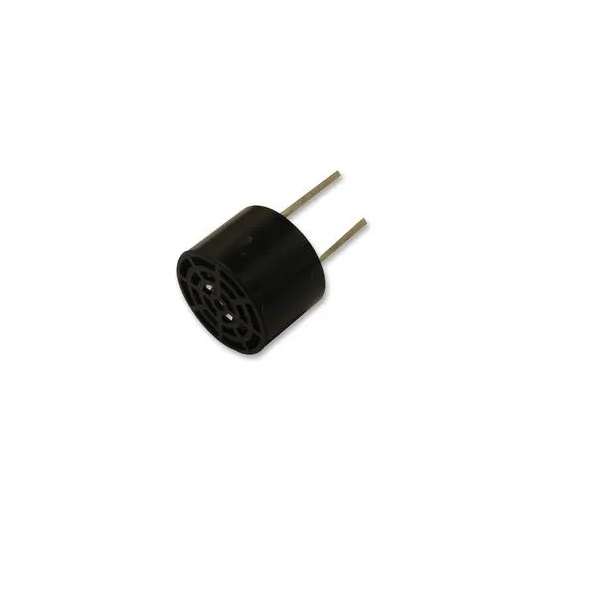

MURATA Ultrasonic Sensor, Receiver, MA40 Series, 9.9 mm Diameter, 40 kHz, -63 dB, -40 °C to 85 °C
- Product: Ultrasonic Sensor, Receiver, MA40 Series, 9.9 mm Diameter
- Insulation Resistance :> 100 Mohm
- Operating Frequency: 40.0kHz
- Capacitance: 2,550pF +/- 20%
₨ 100.10
Out of stock
Out of stock
17
People watching this product now!
| Operating Temperature (°C) |
-40 ~ +85 degC |
|---|---|
| Storage Temperature Range |
-40 ~ +85 degC |
| Input Voltage (V) |
20Vp-p at 40kHz, Square continuous wave Ratings of MA40S4R |
| S.P.L. (Sound Pressure Level) |
120 +/- 3 dB |
| Insulation Resistance |
>100 Mohm |
| Operating Frequency |
40.0kHz |
| Capacitance |
2,550pF +/- 20% |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 9 × 7 × 1 cm |
MA40S4R is an ultrasonic receiver sensor. MA40S4R consists of piezoelectric ceramics, metal plates, resonators, and resin cases. The resonator has a funnel shape to transmit ultrasonic waves which are generated by the vibration of the resonator to the air efficiently(or to concentrate ultrasonic waves from the air on the center of resonance). Sound pressure level(S.P.L.) is the most important characteristic of ultrasonic transducers. For example, in measuring distance application, a high S.P.L. transducer enables to detect the further distance. High S.P.L. and high sensitivity Compact size (10.0mm dia.) Open type structure (used for indoor applications)
Features:
- High S.P.L. and high sensitivity
- Compact size(10.0mm dia.)
- Open type structure
Package Includes:
1 x Ultrasonic Sensor, Receiver, MA40 Series, 9.9 mm Diameter, 40 kHz,
