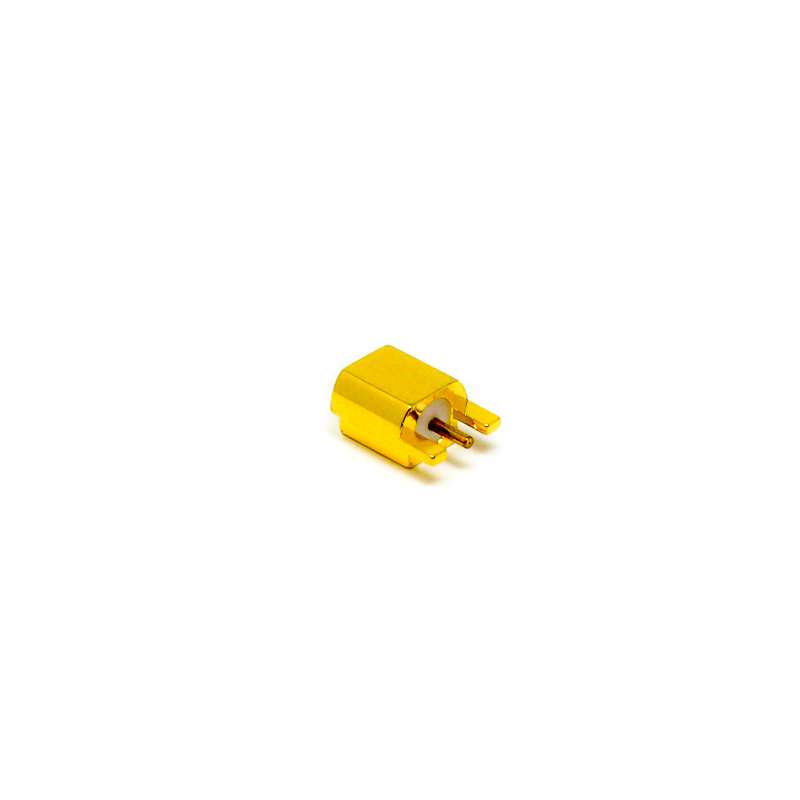

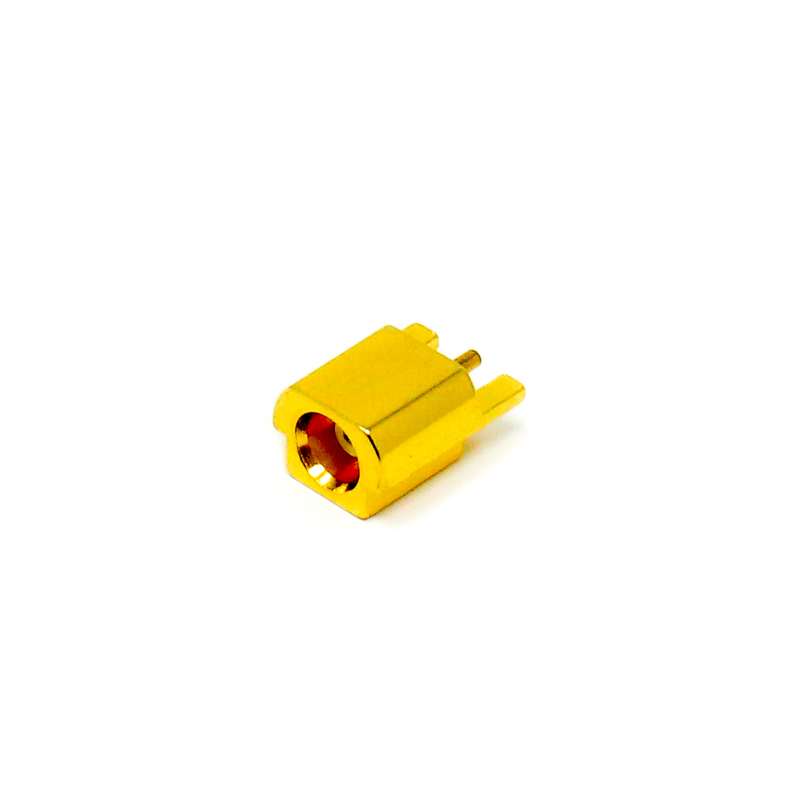

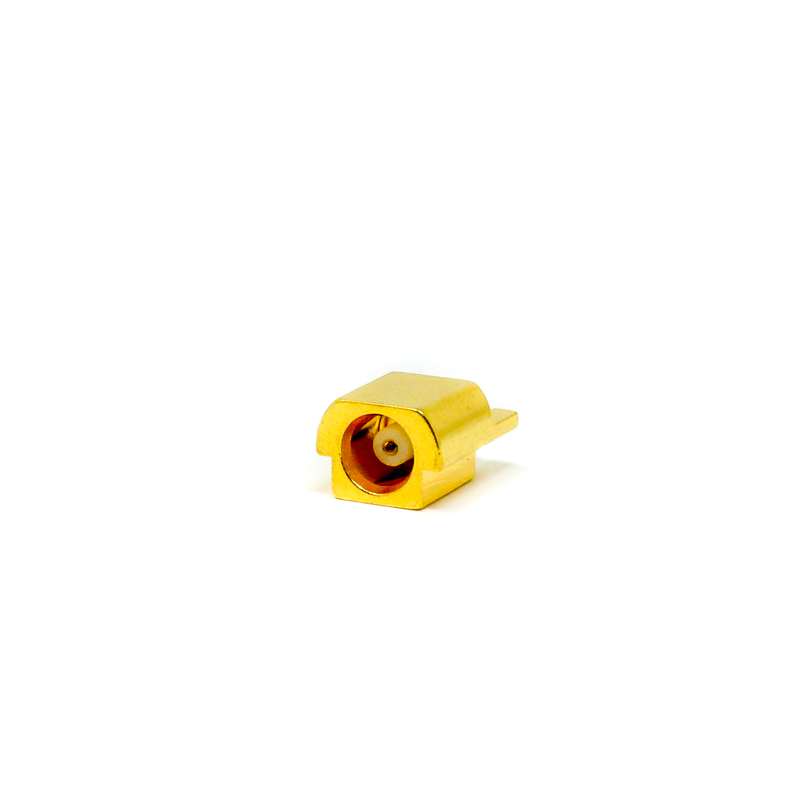

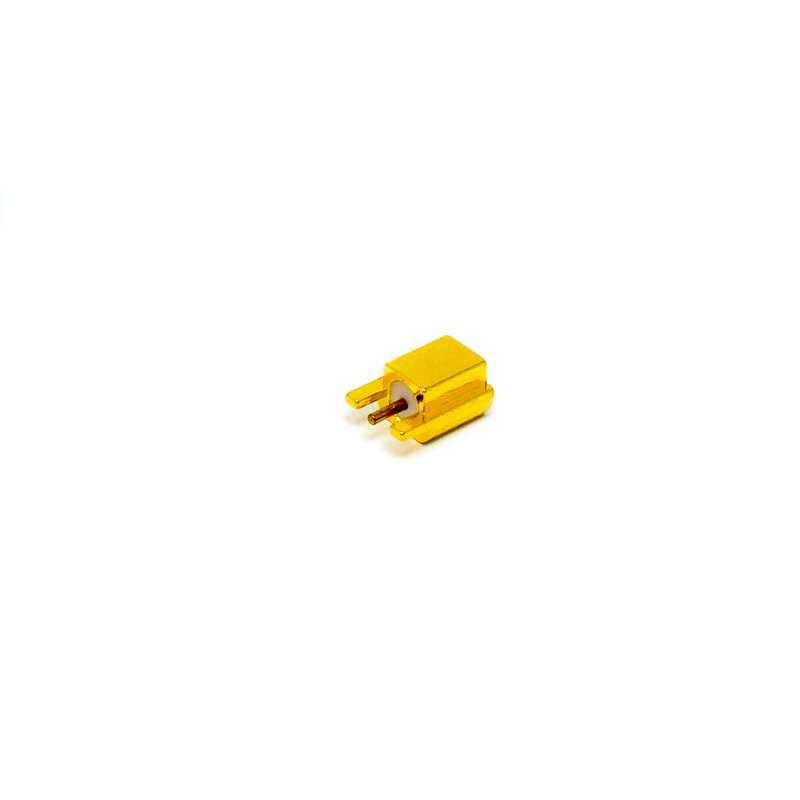

MCX Edge Mount For PCB Mount Female Connector 180 Degree Gold Plating

We at robu offers, a full range of cable mount as well as PCB mount RF connectors. These connectors are designed to match industry-standard 50 ohm and 75-ohm cables with longer life.  This connector is a miniature quick connect/disconnect radio frequency connector used for wide range of applications like GPS and Network connectivity appliactions.

A wide range of standard connectors is listed in the category. Explore the Category for more cable mount as well as PCB/Panel Mount RF connectors that suits your needs  Click Here

Applications:

Features and Specifications:

Features:

1. MCX  Connector,Female/Jack, Straight/180°,Offset Type,PCB Mount,50Ohm,Gold Plating
2. 30% smaller than SMB with same contact and insulator size, make MCX connector lighter and work in smaller space;
3. Snap-on Interface ideal for quick Installation and discount;
4. High cost-effective with excellent broadband performance and low reflections.
5. High-Quality product

Specifications:

Electrical Characteristics

1. Impedance：50 ohm
2. Frequency Range: 0~6 Ghz
3. VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
4. Dielectric Withstanding Voltage: 1000 V rms
5. Working Voltage: 335 V rms
6. Center Contact Resistance ≦ 5.0 mΩ  (Milliohms max.)
7. Outer Contact Resistance  1.0 mΩ  (Milliohms max.)
8. Insultation Resistance ≧ 1000 mΩ

Mechanical Characteristics

1. Coupling: Snap-on/Snap-off
2. Contact Retention: 4 lbs min.
3. Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

1. Environmental Characteristics: Teflon -65°C ~ +155°C
2. Vibration: MIL-STD-202 Meth.204
3. Corrosion Resistance: MIL-STD-202 Meth. 101

Note: Refer Schematic Image for Dimensional Details

Package Includes:

1 x MCX Gold Plated PCB Edge Mount Female Connector
