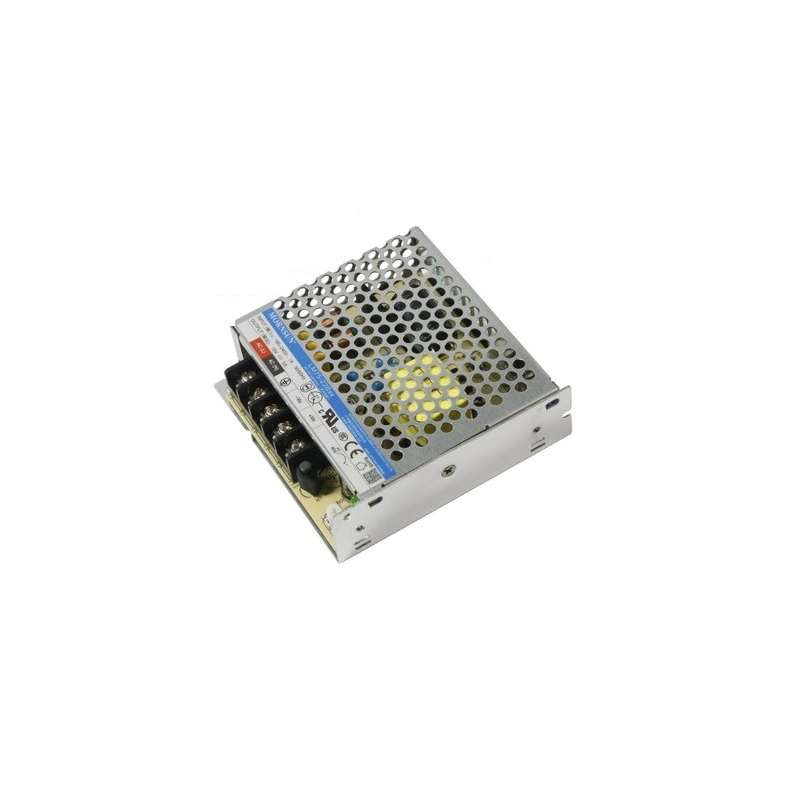

LM100-22B15 Mornsun SMPS – 15V 7A – 105W AC/DC Enclosed Switching Single Output Power Supply

  1. Output Power:105 W
  2. Output Voltage:15V
  3. Output Current:7.0 A
  4.  Operating ambient temperature range: -30℃ to +70℃
  5.  Low standby power consumption, high efficiency
  6.  High I/O isolation test voltage up to 4000VAC
  7. Low ripple & noise

₨ 100.10

Out of stock

Out of stock

Compare
Add to wishlist
14 People watching this product now!
Model

LM100-22B15
Input voltage

165- 264 VAC, 200-370 VDC
Output Voltage (VDC)

13.5-18
Output Power(Watt)

105
Length (mm):

130
Width (mm):

95
Height (mm):

30
Weight (g):

295
Shipping Weight 0.325 kg
Shipping Dimensions 14 × 10.5 × 4 cm

This is an LM100-22B15 Mornsun SMPS. It features universal AC input and at the same time accepts DC input voltage, is cost-effective, has low no-load power consumption, high efficiency, and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, IEC/EN60335, GB4943, IEC/EN61558 standards, and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home, etc.

Features:

  1.  Accepts AC or DC input (dual-use of the same terminal)
  2.  Operating ambient temperature range: -30℃ to +70℃
  3.  Low standby power consumption, high efficiency
  4. High I/O isolation test voltage up to 4000VAC
  5.  Low ripple & noise
  6. Output short circuit, over-current, over-voltage protection

Package Includes:

1 x LM100-22B15 Mornsun SMPS
