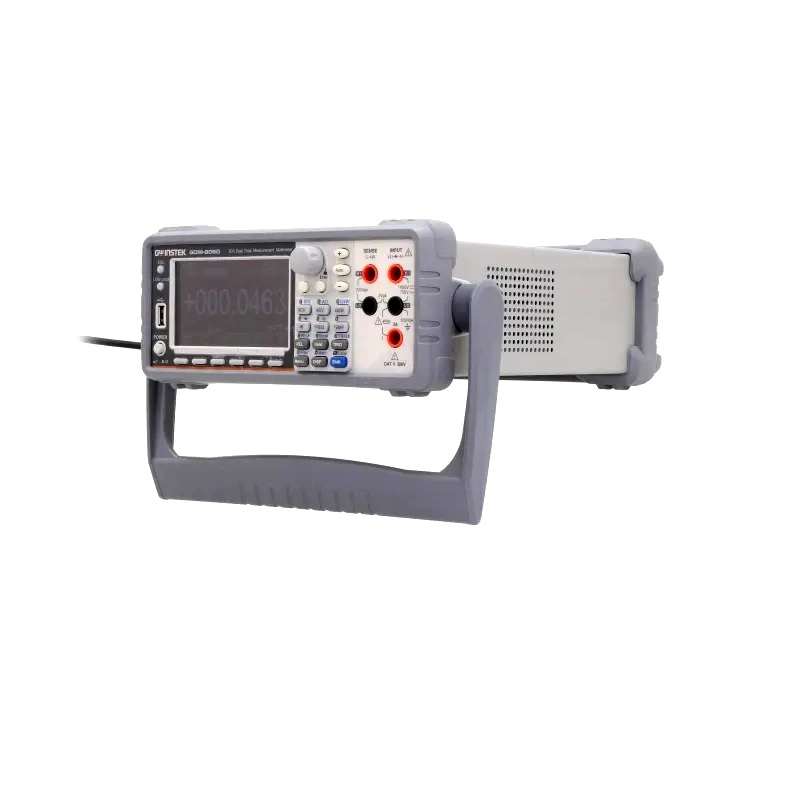

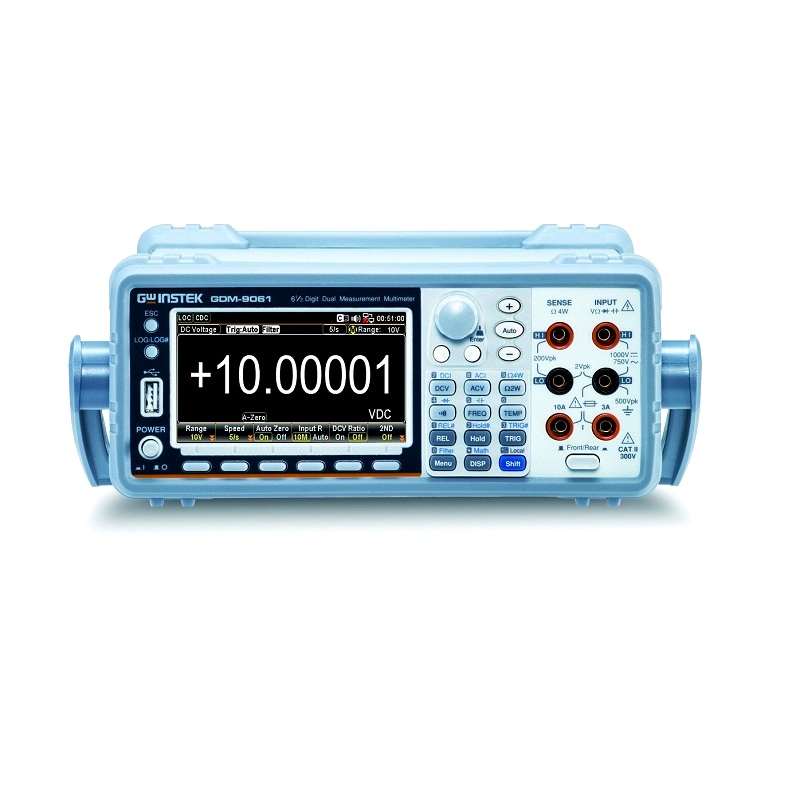

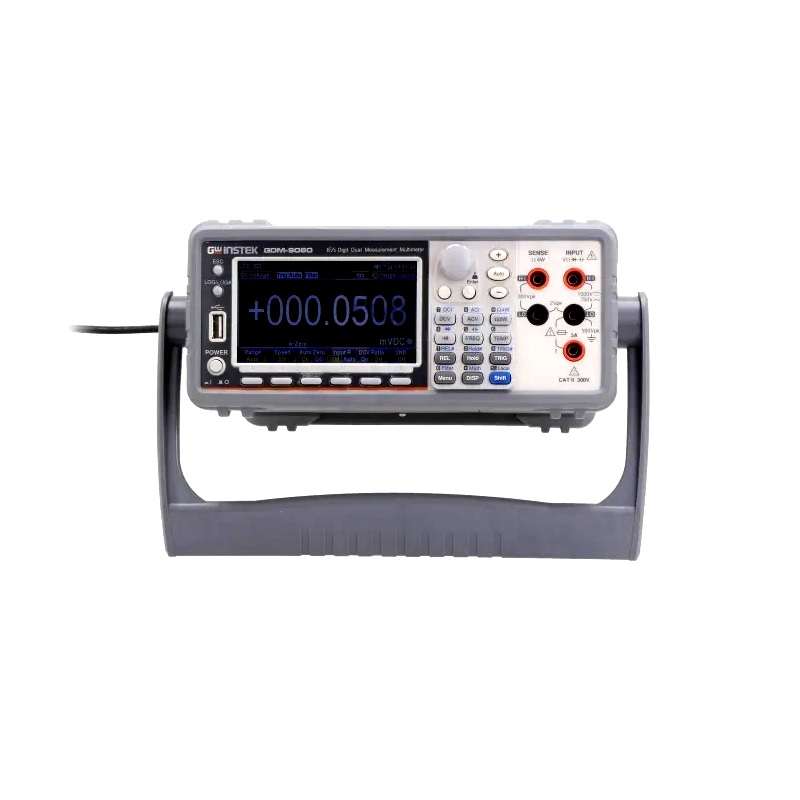

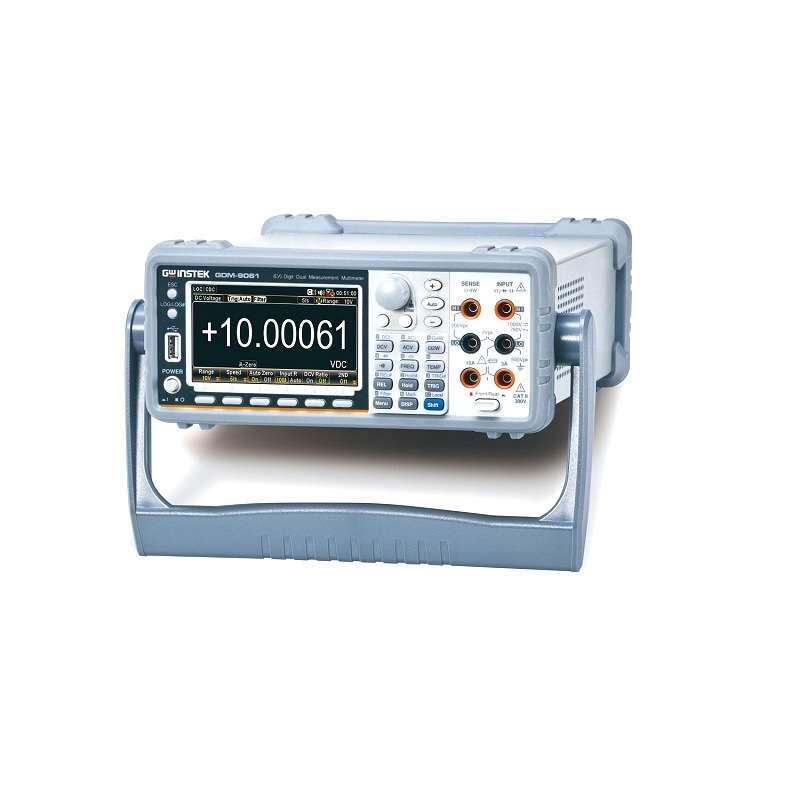

GW Instek GDM 9060 Bench Digital Multimeter

  1. 6 1/2 Digit Display:1,200,000 Counts
  2. 4.3-inch color TFT Graphic LCD Display
  3. DCV Basic Accuracy:0.0035%(GDM-9061)/0.0075%(GDM-9060)
  4. 12 Measurement Functions: DCV, ACV, DCI, ACI, 2-wire and 4-wire Resistance, Frequency, Period, Diode, Continuity, Temperature, and Capacitance
  5. Sampling Rate up to 10k SPS (GDM-9061)
  6. Dual Measurement Function to Providing Two Selected Measurement Simultaneously
  7. Offer Graphical Capabilities including Histogram, Bar Meter, and Trend
  8. Temperature Measurement Support RTD, Thermistor as Well as Thermocouple
  9. Standard Interfaces: USB Host/Device, RS-232C, LAN, Digital I/O
  10. Optional Interface: GPIB

₨ 100.10

Out of stock

Out of stock

Compare
Add to wishlist
11 People watching this product now!

Datasheet

DOWNLOAD

User Manual

DOWNLOAD

Model

GW Instek GDM 9060
Type of Meter

Benchtop Multimeter
Measurement Memory

10000 measurements
Display

4.3 inch Color TFT 6,5 digit, (Resolution: 480×272)
Sampling Rate

1000/sec
DC Measuring Range

DC voltage measuring range 100m/1/10/100/1000V
DC voltage measuring accuracy ±(0,01
DC current measuring range 100µ/1m/10m/100m/1A/10A
DC current measuring accuracy ±(0,05% of readout + 0,005% of range) 4% of readout + 0,001% of range)
AC Measuring Range

AC voltage measuring range 1…750V
AC voltage measuring accuracy
AC current measuring range 1m/10m/100m/1/10A
AC current measuring accuracy ±(0,13% of readout + 0,04% of range)±(0,09% of readout + 0,04% of range)
Temperature Measuring Range

-200 to 1372°C (with K-type thermocouple)
-200 to 1372°C (with J-type thermocouple)
-200 to 1372°C (with T-type thermocouple)
-50 to 1870°C (with R-type thermocouple)
-50 to 1870°C (with S-type thermocouple)
-200 to 1372°C (with E-type thermocouple)
-200 to 1372°C (with N-type thermocouple)
True effective value measurement

True RMS AC
Resistance measuring range

100/1k/10k/100k/1M/10M/100MΩ
Accuracy ±(0,014% of readout + 0,001% of range)
Math functions

dB, dBm, Compare, MX+B, Percent, 1/X
Connectivity/Interface

RS232C,USB Host/Device,Lan,Digital I/O
Length (mm):

267
Width (mm):

302
Height (mm):

107
Weight (kg):

3.5
Shipping Weight 4 kg
Shipping Dimensions 33 × 33 × 10 cm

GW Instek GDM 9060 Bench Digital Multimeter is a newly launched Multimeterfrom GDM-906X series 6 ½ digit dual measurement multimeter, featuring high precision DC voltage accuracy, fast sampling rate, 12 measurement functions, 6 mathematical functions to provide comprehensive measurement capabilities, higher speed, and accuracy.

A very unique feature of the GW Instek digital multimeters is the ability to simultaneously perform two different measurement functions. The functions are executed parallel to each other and the measurement results are displayed separately as numerical values or graphs.

The GDM-9060 is equipped with USB, RS232, and LAN as standard interfaces. It is also possible to connect a GPIB interface. Via these interfaces and the PC software, it is possible to manage the meter settings via a PC. In addition, it is also possible to observe and store the measured data on the PC.

For more specific technical details about the product please go through the datasheet in the attachments

Features:

  1. 6 1/2 digit display dual measurement multimeter
  2. 4.3″ color TFT WQVGA (480 x 272)
  3. 0.0075% DCV basic accuracy
  4. DCV, ACV, DCI, ACI, resistance, frequency, period, diode, continuity, temperature, and capacitance
  5. Sampling rate up to 10Ksps
  6. Dual measurement function to providing two selected measurement simultaneously
  7. Offer graphical capabilities including histogram, bar meter, and trend
  8. Temperature measurement support RTD, thermistor, and thermocouple
  9. USB host/device, RS232C, LAN, digital I/O interfaces

Package Includes:

1 x Power Cord

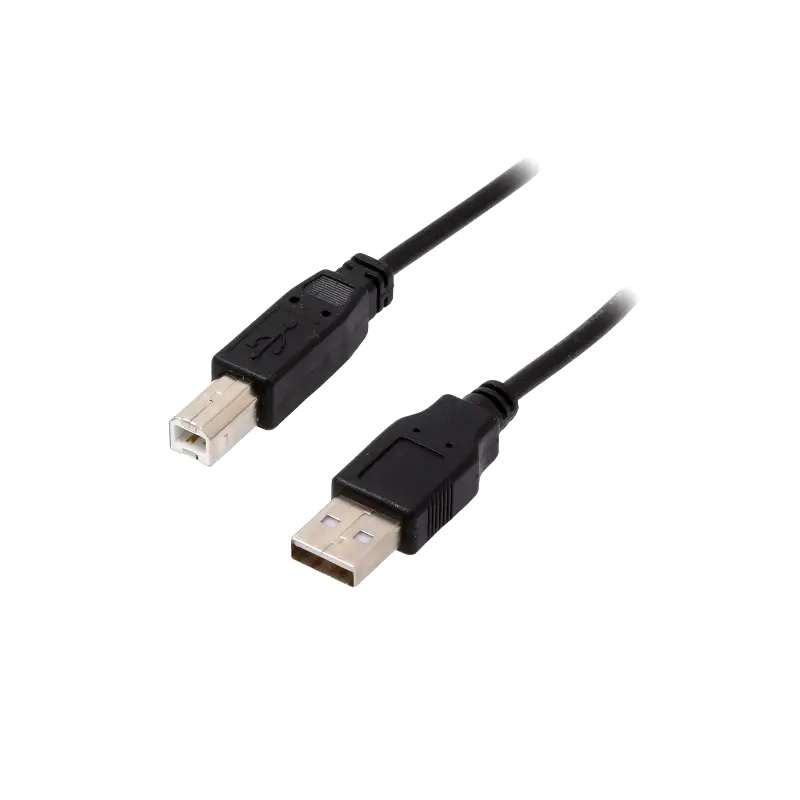

1 x USB cable GTL-246

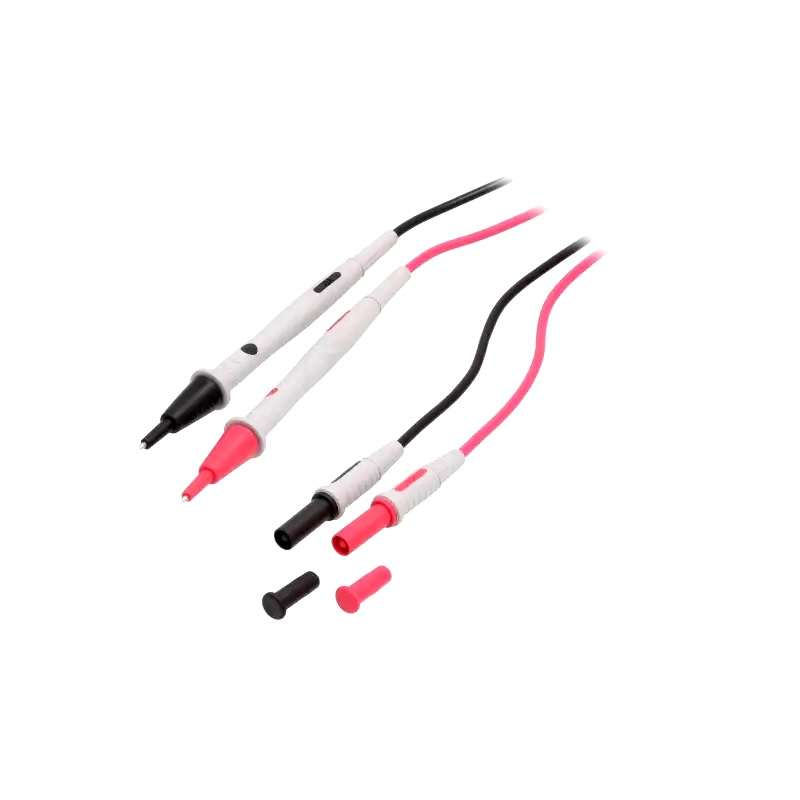

1 x Test lead GTL-217 x1
1 x Safety Instructions x1
1 x CD (including the complete user manual, upgrade program, and PC software, DMM-Viewer2)
