Datasheet

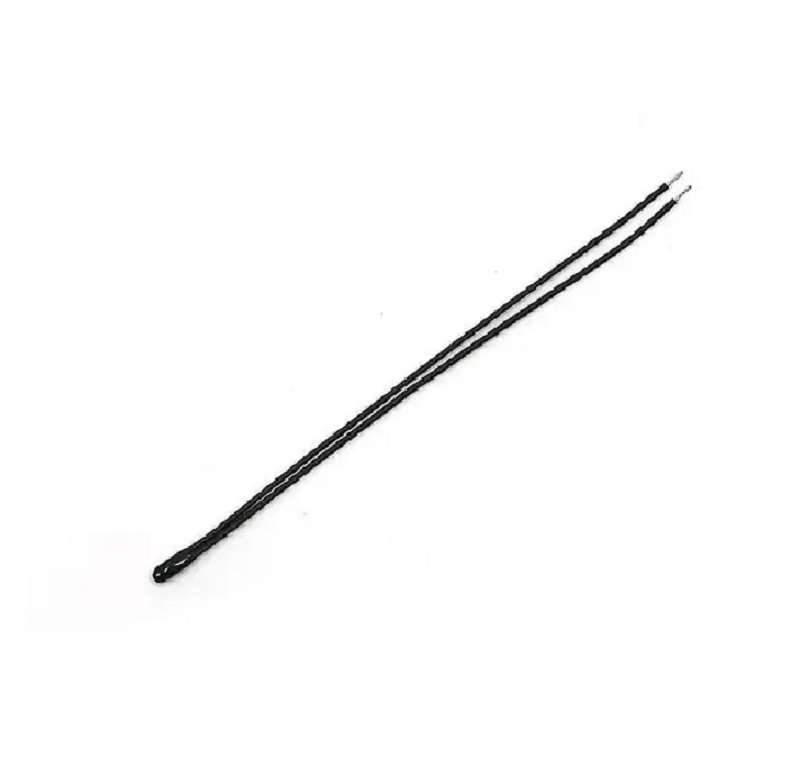

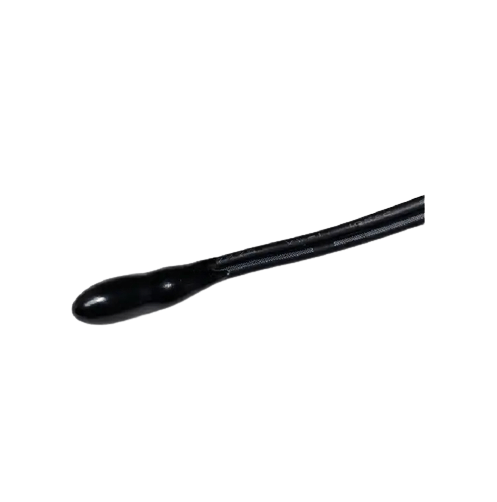

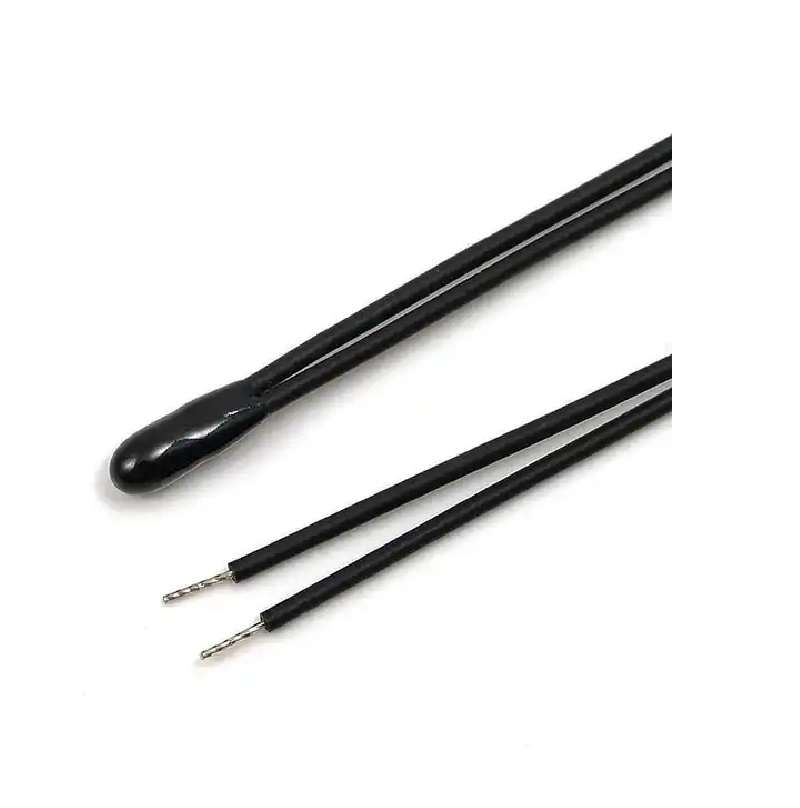

FocuSens MFE2A Epoxy Resin 6.8K 3977 NTC Thermistor Temperature Sensor for Seat Heating
- Model: MFE2A
- Type: Thermal Resistor
- Resistance: 10 Ω to < 1 MΩ
- Operating Temperature: -40 to+125
₨ 170.00
Out of stock
Out of stock
20
People watching this product now!
| Model |
MFE2A |
|---|---|
| Product Type |
Thermal Resistor |
| Rated resistance(kohm) |
6.8±2% |
| Time constant(s) |
60 |
| Dissipation factor(mW) |
Approx. 6.0 |
| Insulation Resistance (Mohm) |
100 |
| Maximum Power Rating(mW) |
60 |
| Operating Temperature (°C) |
-40 to 105 |
| Cable Length (m): |
3 |
| Shipping Weight | 0.019 kg |
| Shipping Dimensions | 10 × 7 × 3 cm |
The MFE2A Epoxy Resin 6.8K 3977 NTC Thermistor Temperature Sensor is a specialized component designed for seat heating applications. Encased in epoxy resin, it operates as a sensitive temperature sensor with a resistance of 6.8K at 25°C. This NTC thermistor offers accurate temperature measurement (3977 beta value) for seat heating systems, ensuring comfort and safety. Its rugged design and reliable performance make it a vital component in the automotive industry for maintaining comfortable seat temperatures.
Features:
- Epoxy resin encapsulation for durability.
- High accuracy with a 3977 beta value.
- Designed for precise temperature sensing.
- Ideal for seat heating systems in the automotive industry.
- Ensures comfort and safety.
Package Includes:
1 x FocuSens MFE2A Epoxy Resin 6.8K 3977 NTC Thermistor Temperature Sensor for Seat Heating
