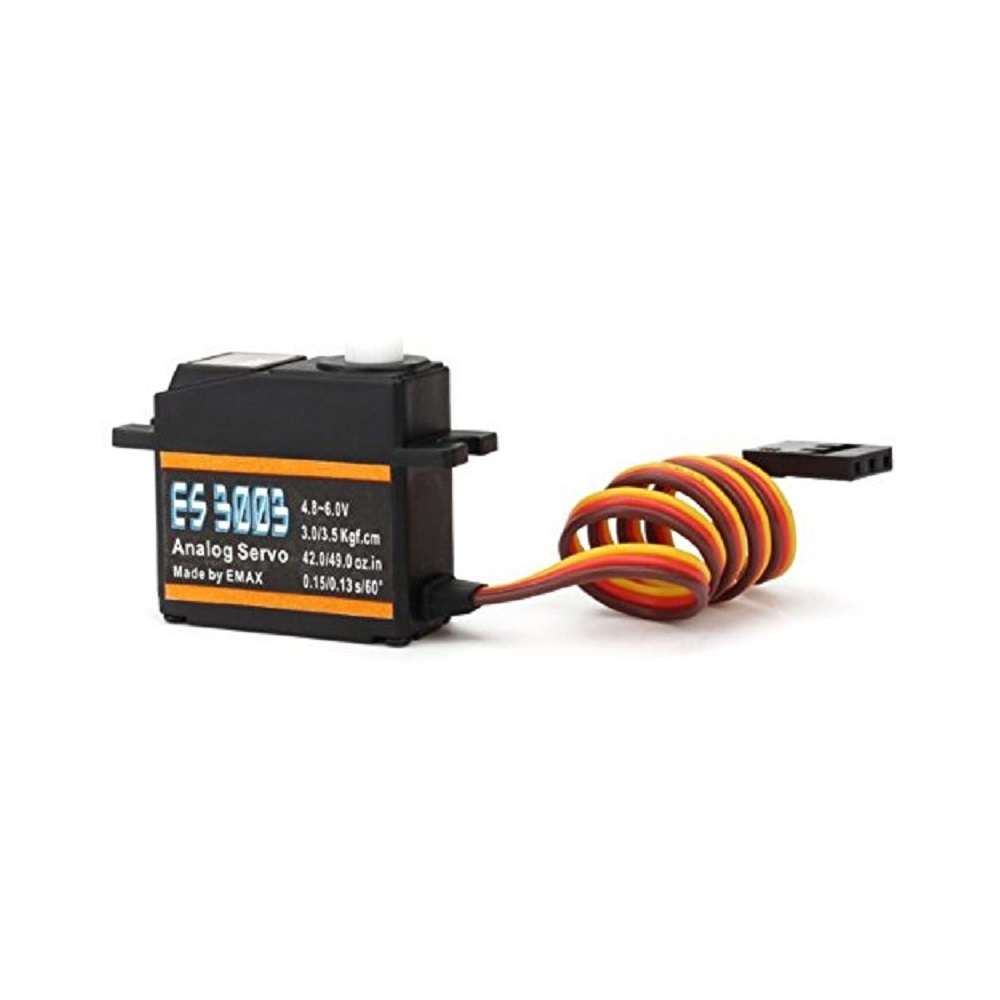

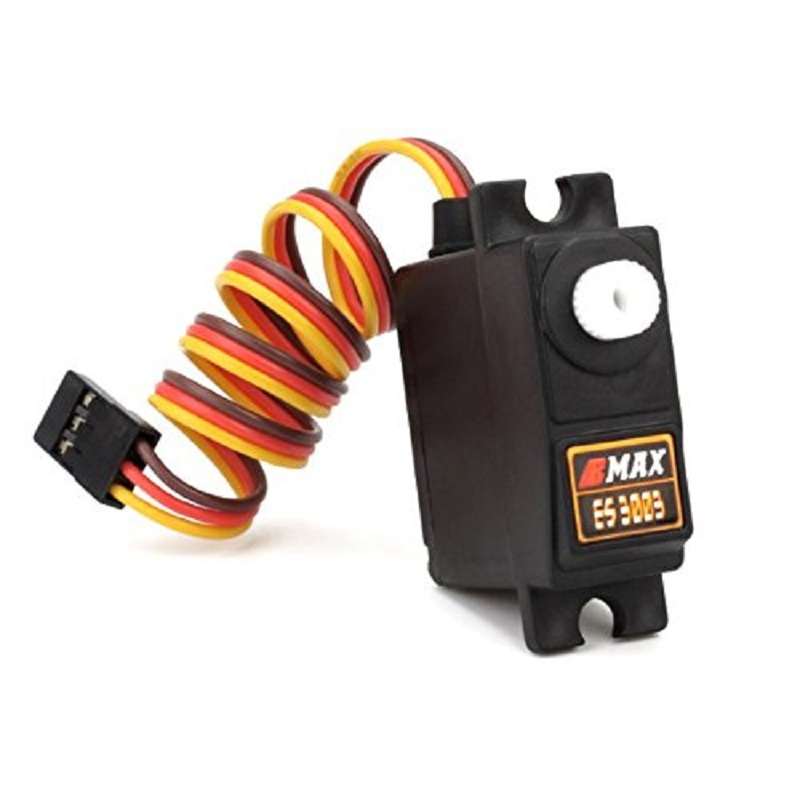

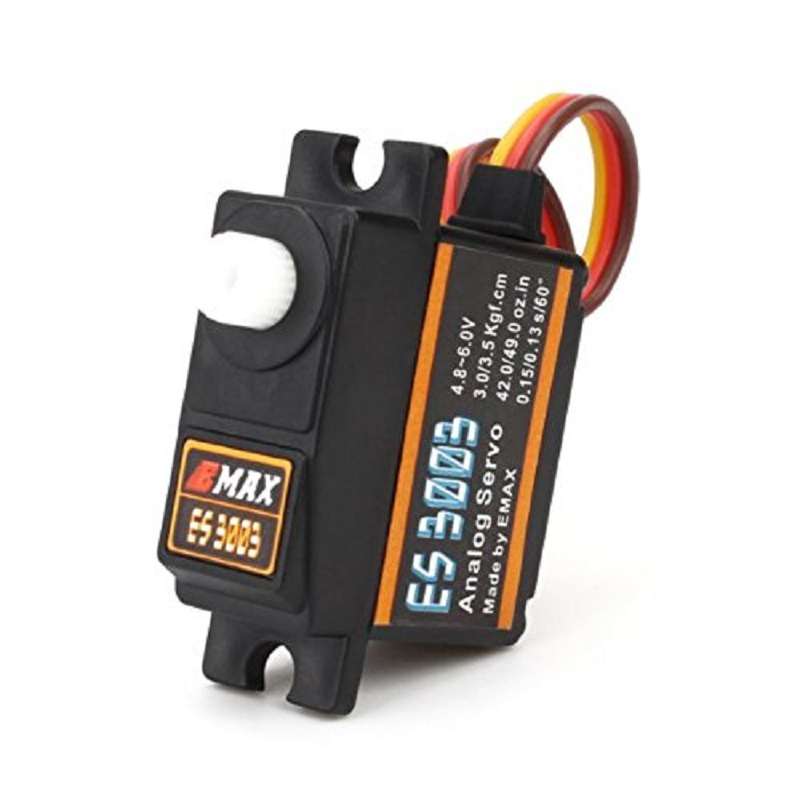

EMAX ES3003 17g 3.5kg 0.13sec 23T Plastic Gear Analog Servo for RC Airplane-(original)
- Voltage: 4.8-6.0 V
- Torque: 3.0 / 3.5kgf.cm
- Rate: 0.15 / 0.13 s / 60 degrees
- STD Direction: Counter Clockwise/ Pulse travelling 1500 to 1900 μsec
- Gears: Plastic Gears
₨ 1,498.00
Out of stock
Out of stock
13
People watching this product now!

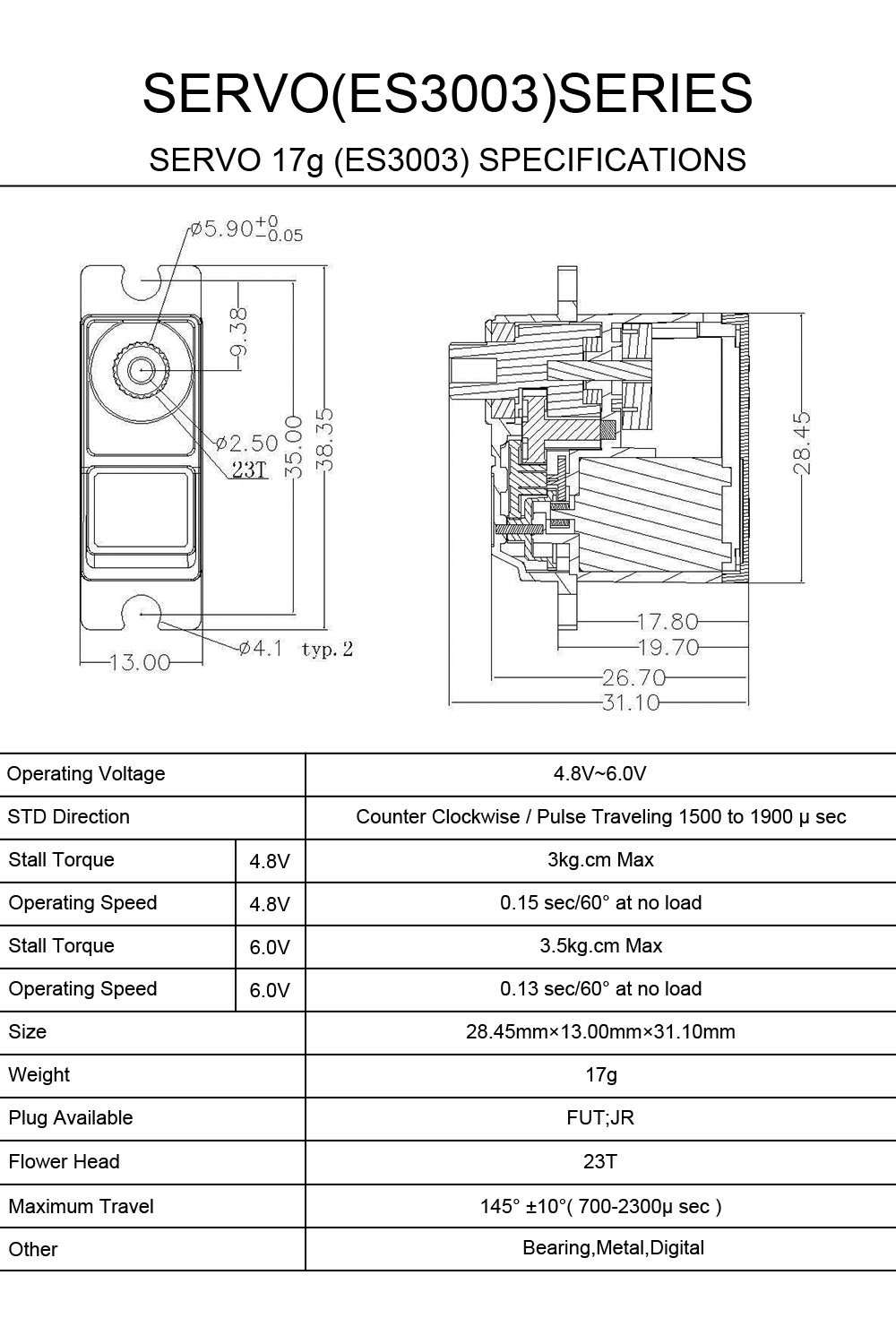

| Model |
ES3003 |
|---|---|
| Operating Voltage (VDC): |
4.8 ~ 6 |
| Operating Speed @4.8V |
0.15 sec/60° at no load |
| Stall Torque @ 4.8V (Kg-Cm) |
3 |
| Operating Speed @6.0V |
0.13 sec/60° at no load |
| Stall Torque @ 6.0V (Kg-Cm) |
3.5kg.cm Max |
| Gear Type |
Plastic |
| Maximum Travel |
145°±10° (700-2300μ sec) |
| Servo Plug |
FUT;JR |

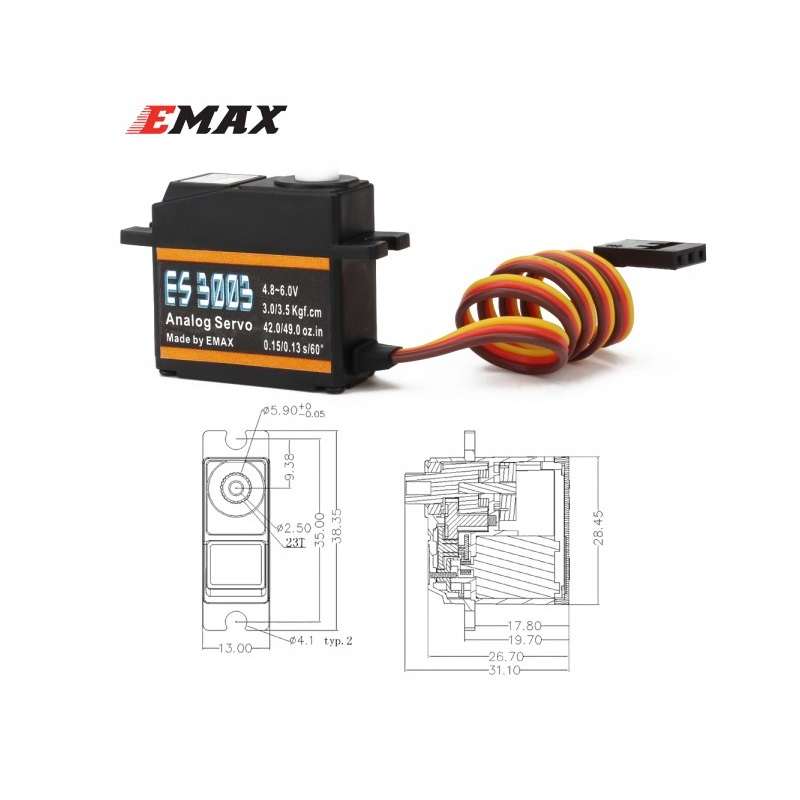

| Length (mm): |
28.45 |
| Width (mm): |
13 |
| Height (mm): |
31 |
| Weight (g): |
17 |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 5 × 4 × 3 cm |
This is EMAX ES3003 17g 3.5kg 0.13sec 23T Plastic Gear Analog Servo for RC Airplane Small size but powerful enough for up to 3kgcm Applications
Wire Description:
- RED – Vcc (Positive)
- Brown – GND (Negative)
- Orange – PWM (Signal)

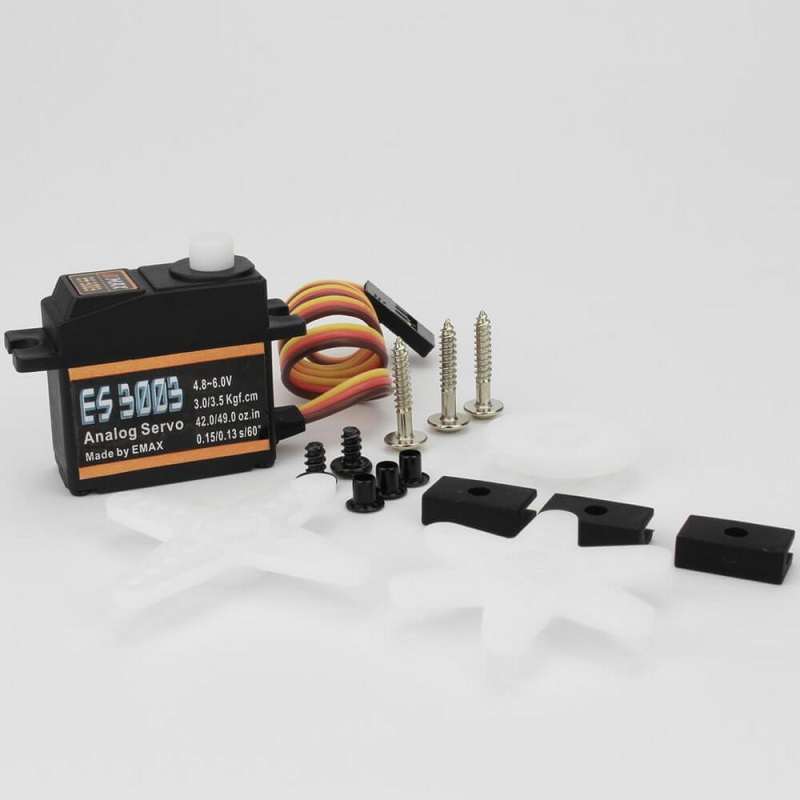

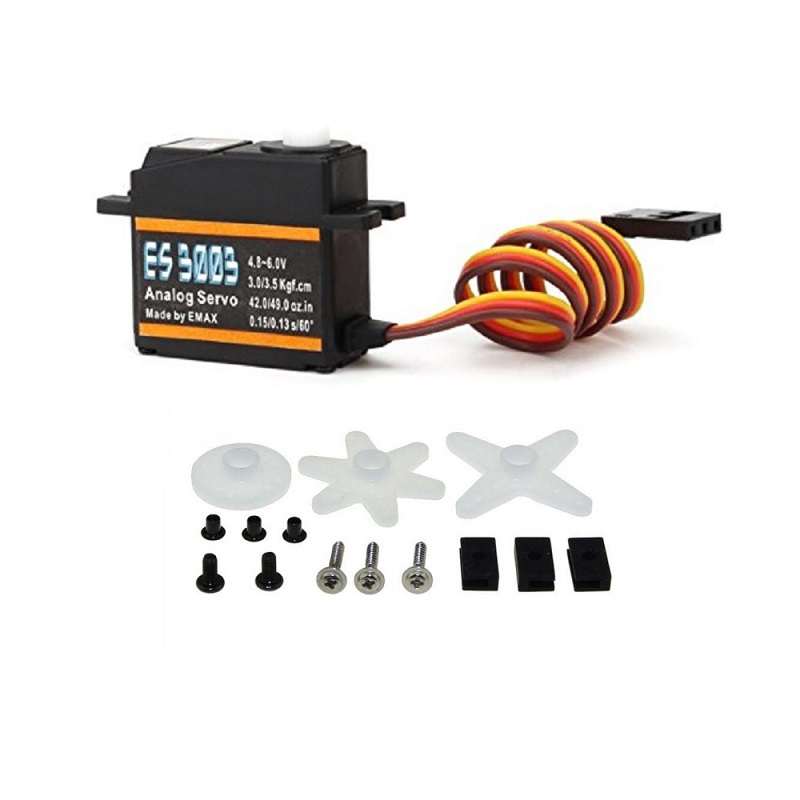

Package Includes:
1 x EMAX ES3003 17g 3.5kg 0.13sec 23T Plastic Gear Analog Servo
1 x Servo horns and Accessories Set
