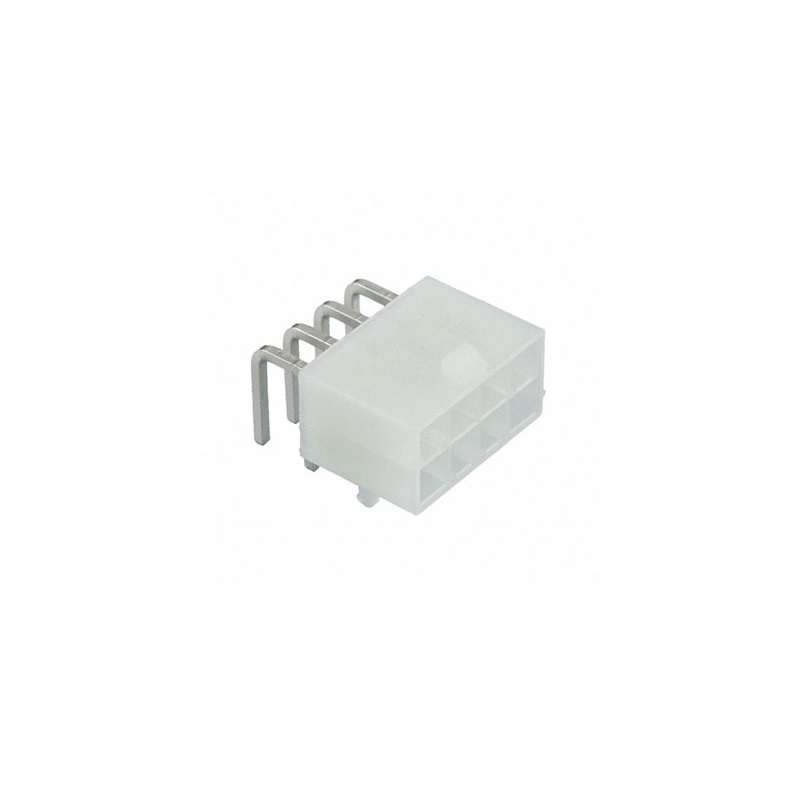

39301080-Connector, Header, 8Pos, 2Row

39301080- Pin Header, Right Angle, Power, 4.2 mm, 2 Rows, 8 Contacts, Through Hole Right Angle

Features:

1. Positive locking housings
2. Polarized mating geometry
3. Scoop-proof housings
4. Receptacles and plugs accept standard Mini-Fit and Mini-Fit Plus crimp terminals

Specifications:

1. Breakaway: No
2. Circuits (Loaded): 8
3. Circuits (maximum): 8
4. Color: Resin Natural
5. Durability (mating cycles max): 30
6. First Mate / Last Break: No
7. Flammability: 94V-2
8. Glow-Wire Compliant: No
9. Guide to Mating Part: No
10. Keying to Mating Part: None
11. Lock to Mating Part: Yes
12. Material – Metal: Brass
13. Material – Plating Mating: Tin
14. Material – Plating Termination: Tin
15. Material – Resin: Nylon
16. Net Weight: 2.915/g
17. Number of Rows: 2
18. Orientation Right Angle
19. PCB Locator: Yes
20. PCB Retention:Yes
21. PCB Thickness – Recommended: 1.78mm
22. Packaging Type: Bag
23. Pitch – Mating Interface: 4.20mm
24. Pitch – Termination Interface: 4.20mm
25. Plating min – Mating: 5.080μm
26. Plating min – Termination: 5.080μm

Package Includes:

1 x 39301080-CONNECTOR, HEADER, 8POS, 2ROW,
