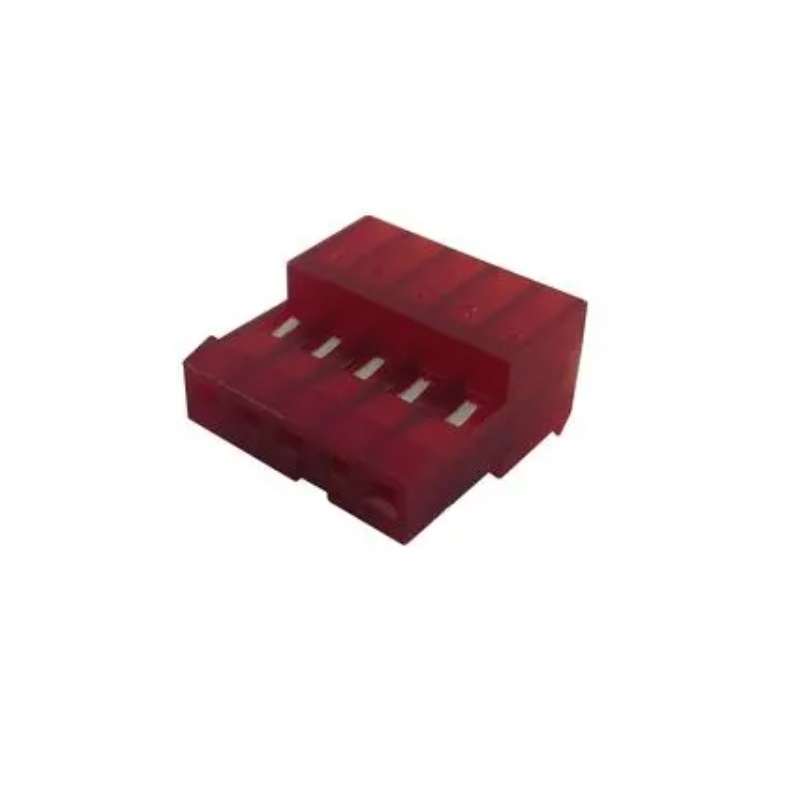

Idc Connector, Idc Receptacle, Female, 2.54 Mm, 1 Row, 5 Contacts, Cable Mount RoboNepal.com Nepal Buy in Nepal
Click to enlarge

3-640440-5.-HOUSING, 22AWG, 5WAY

  1. IDC Connector Type: IDC Receptacle
  2. Contact Gender: Female
  3. Pitch Spacing: 2.54mm
  4. No. of Rows: 1 Row
  5. No. of Contacts: 5Contacts

₨ 56.00

Out of stock

Out of stock

Compare
Add to wishlist
14 People watching this product now!
Connector Type

IDC Receptacle
Gender:

Female
Pitch Spacing (mm)

2.54
No. of Rows

1
No. of Contacts

5
Mounting Type

Cable Mount
Contact Material

Phosphor Bronze
Contact Plating

Tin Plated Contacts
Model Series:

MTA Series
Shipping Weight 0.002 kg
Shipping Dimensions 14 × 7 × 1 cm

IDC Connector, IDC Receptacle, Female, 2.54 mm, 1 Row, 5 Contacts, Cable Mount. The 3-640440-5 from TE Connectivity is a MTA-100, single row, 5 position wire to board receptacle connector assembly with strain relief.  It has closed end connector design and 90° cable exit angle. This wire to board connector is used with MTA.100 headers and MTA.100 IDC posted connectors. It is approved by UL E28476 and CSA standards.

Features:

  1. Operating voltage of 250VAC and contact current rating of 5A
  2. Tin-plated and matte-finished contact mating area
  3. Under plating material is nickel
  4. Contact termination area plating material is tin with a matte finish
  5. The contact base material is a copper alloy
  6. IDC termination method to wire/cable
  7. Red color nylon housing
  8. Wire/cable size is 22AWG
  9. Operating temperature range from -55°C to 105°C
  10. UL94 V-2 flammability rating

Package Includes:

1 x 3-640440-5.-HOUSING, 22AWG, 5WAY
