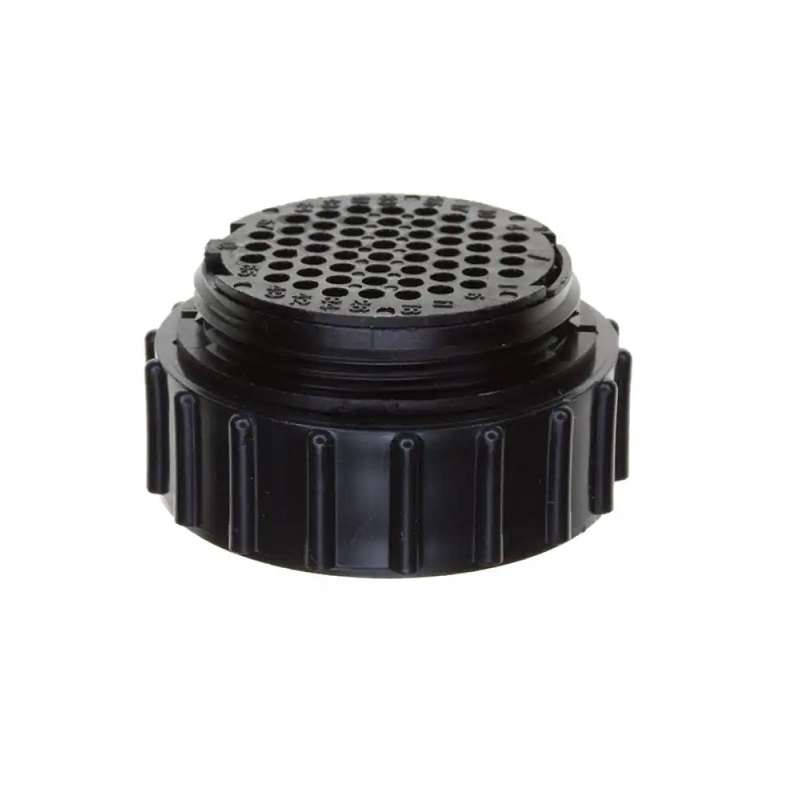

206437-1-Circular Connector Plug, Size 2

The 206437-1 is a 57-position straight Free Hanging Plug with pin type contacts and 23-57 insert arrangement. The reverse sex circular plastic connector is made of UL94V-0 rated black thermoplastic. The series 2 connector accepts size 20 DF (precision formed) and size 20 DM (screw-machined) pin contacts. Maximum current carrying capability is 7.5A.
Applications:

Commercial, Signal Processing, Power Management

Features:

1. Lightweight
2. Quick connect/disconnect capability with thread assist, positive detent coupling
3. Polarized for proper mating of connector halves
4. Keyed mating alignment
5. Threaded coupling mating retention
6. Contact protection

Package Includes:

1 x 206437-1-CIRCULAR CONNECTOR PLUG SIZE 2
