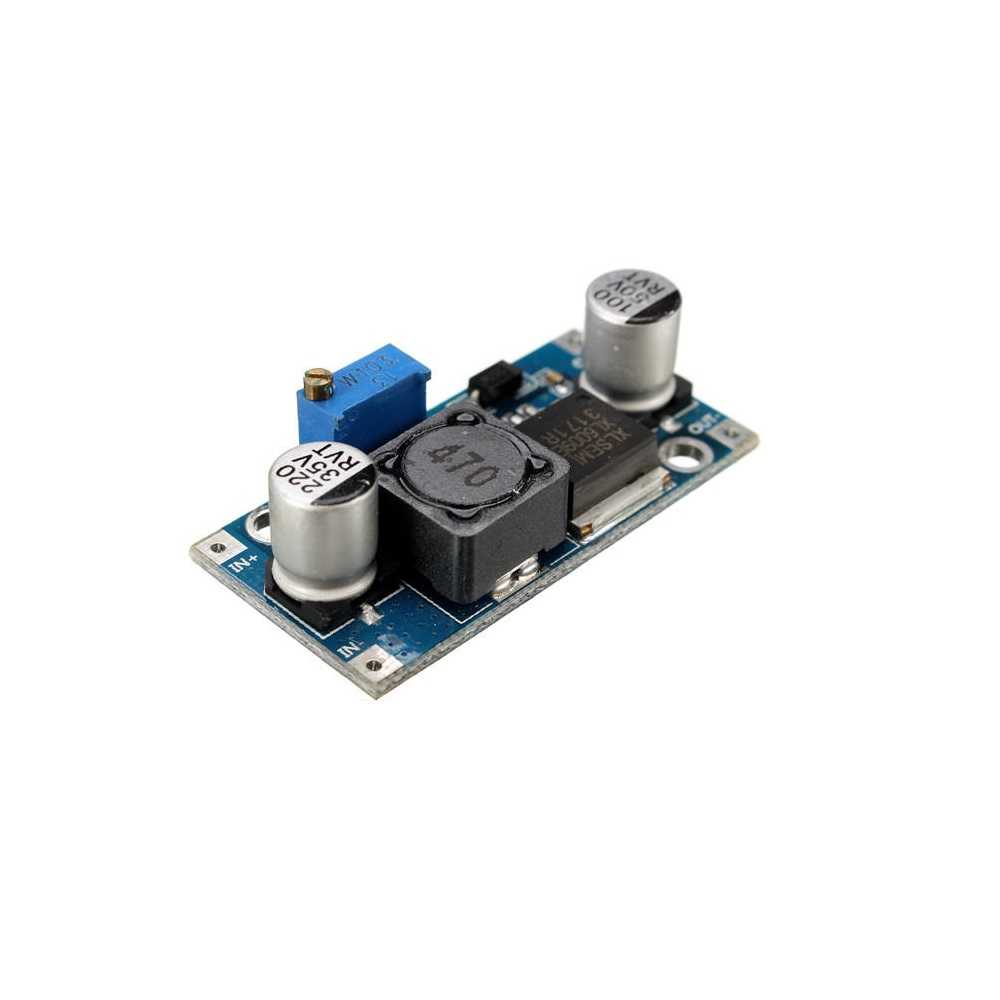

XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board
Add to Wishlist
₨ 98.00
Out of stock
Out of stock
18
People watching this product now!
| Input Voltage (V) |
3 to 32 |
|---|---|
| Input Current(A) |
4 |
| Output Voltage(V) |
5 ~ 35 |
| Output Ripple(mV) |
50 |
| Efficiency |
94% |
| Switching Frequency(KHz) |
400 |
| Load Regulation |
±0.5% |
| Voltage Regulation |
±0.5% |
| Length (mm): |
43 |
| Width (mm): |
20 |
| Height (mm): |
12 |
| Weight (g): |
12 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 5 × 3 × 2 cm |
This XL6009 DC-DC Step-Up Converter Performance Ultra LM2577 Booster Circuit Board is a non-isolated step-up (boost) voltage converter featuring adjustable output voltage and high efficiency.
The module uses the second generation of high-frequency switching technology XL6009E1 core chip performance than the first generation technology LM2577. XL6009 boost module at a lower cost, superior performance.
It equips 4A high-efficiency MOSFET switches, so as to provide a conversion efficiency of up to 94%.
High switching frequency 400KHz, you can use a small -capacity filter capacitors that can achieve very good results, the ripple is smaller and smaller
Pins
Features :
- The performance is much higher than LM2577.
- Non-isolated Boost converter.
- It has a non-synchronous rectifier.
- Small and Handy voltage regulator module.
Package Includes :
1 x CN6009 XL6009 DC-DC Step-up converter module.
