Waveshare PL2303 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector

This is Waveshare PL2303 USB UART Board (Type C), USB To UART (TTL) Communication Module, USB-C Connector.

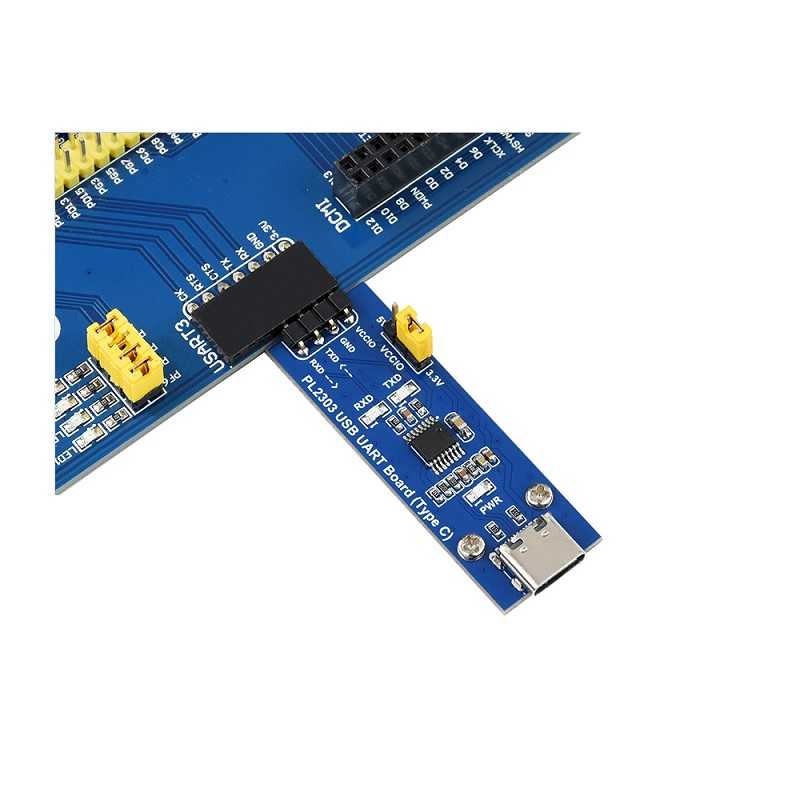

This is the PL2303 USB UART converter Board. This is a great little tool for embedded systems that require a serial connection to a computer. The board can simply attach to a USB-C bus and will appear as a standard COM port.

Pin connections of PL2303 USB UART Board:

1. VCCIO ↔ 3.3V or 5V output (the module is powered from USB, and the onboard jumper should be shorted to 3.3V or 5V)
2. GND ↔ GND
3. TXD ↔ MCU.RX (signal direction: MCU.RX << PL2303 << PC.TX)
4. RXD ↔ MCU.TX (signal direction: MCU.TX >> PL2303 >> PC.RX)

Features:

1. Adopts PL2303GS new version device
2. Supports windows XP/7/8/10/11/…
3. 3x LED indicators: TXD, RXD, PWR

Package Includes:

1 x PL2303 USB UART Board (Type C)

1 x 4-pin custom connector jumper wire
