Waveshare Flexible RGB full-color LED matrix panel adjustable brightness and bendable PCB

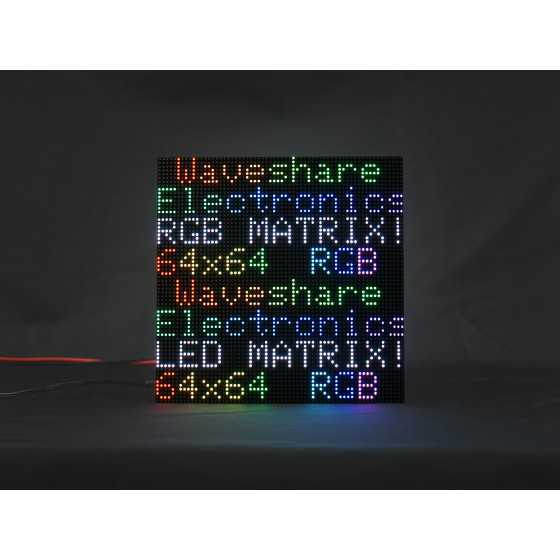

The Waveshare Flexible RGB full-color LED matrix panel is a display panel that consists of an array of individually addressable RGB LEDs arranged in a 64×64 grid with a 3mm pixel pitch. The panel is designed with a flexible, bendable printed circuit board (PCB) that allows it to be curved or bent to fit various shapes and surfaces.

The panel’s RGB LEDs are capable of producing a full range of colors and can be adjusted for brightness using a PWM signal. The panel is controlled using a compatible microcontroller or development board, which communicates with the panel using a data and clock signal.

Features:

1. 4096 individual RGB LEDs, full-color display, adjustable brightness

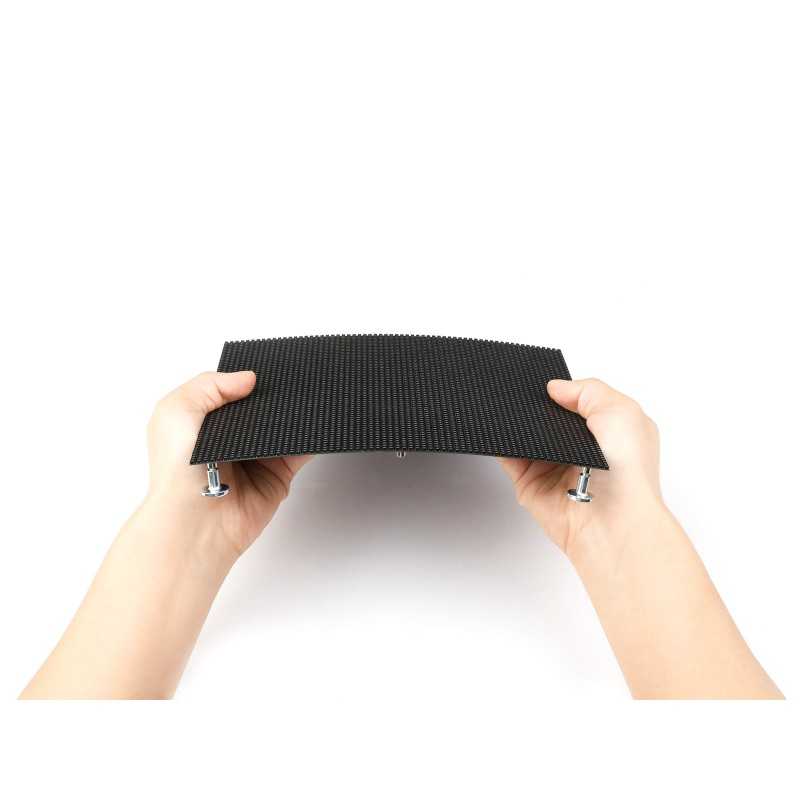

2. Flexible PCB material can be gently bent and suitable for some application scenarios such as cylinders, spheres, and other curved surface

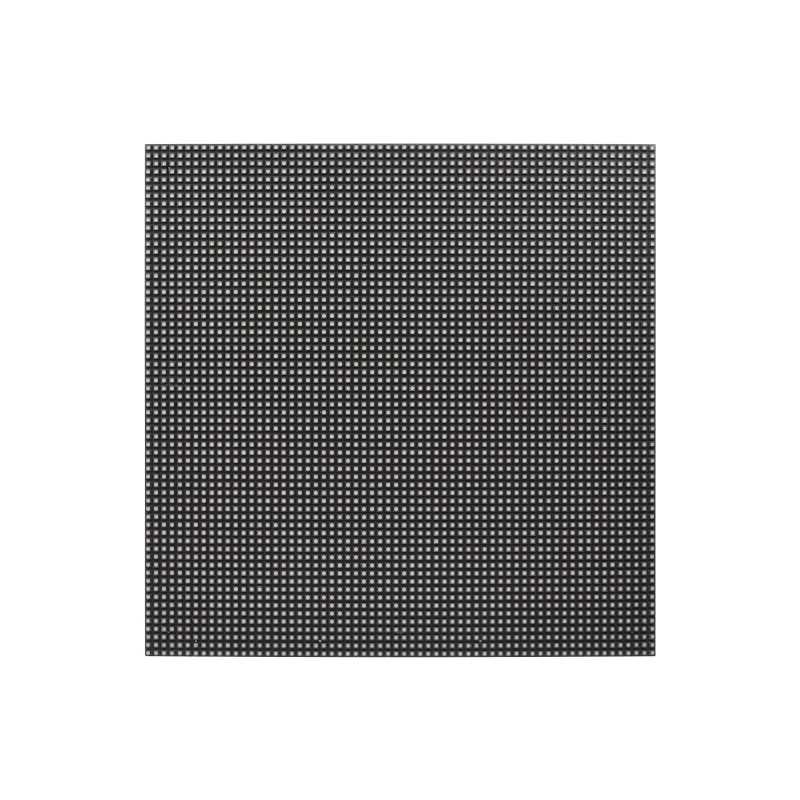

3. 64×64 pixels, 3mm pitch, allows displaying text, colorful images, or animation
4. 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

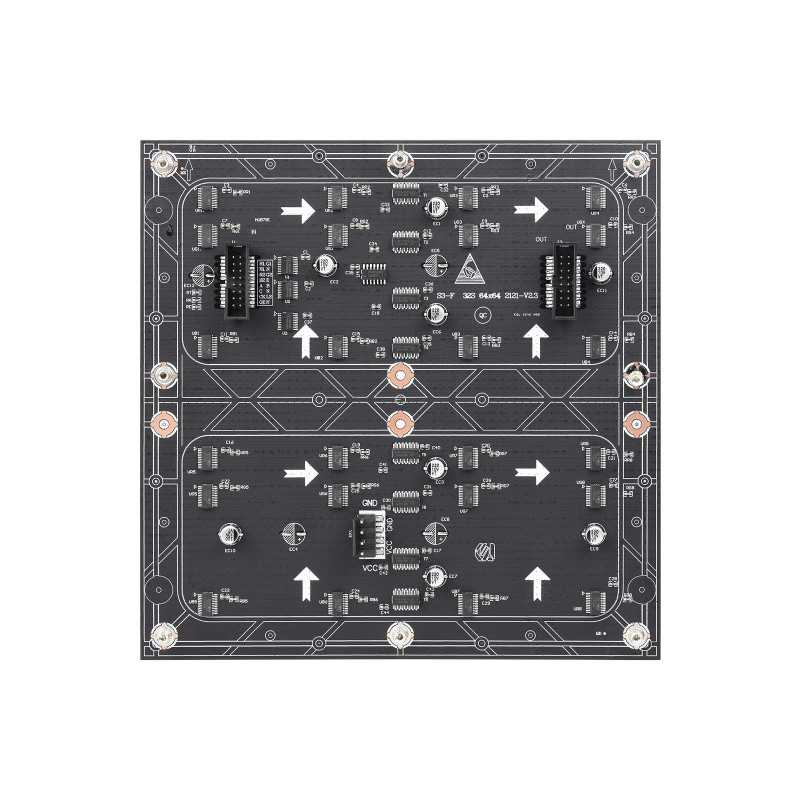

5. Onboard two HUB75 headers, one for controller data input, one for output, chain support
6. Provides open-source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

Package Includes:

1 x Waveshare Flexible RGB full-color LED matrix panel 3mm Pitch 64×64 pixels, adjustable brightness, and bendable PCB
