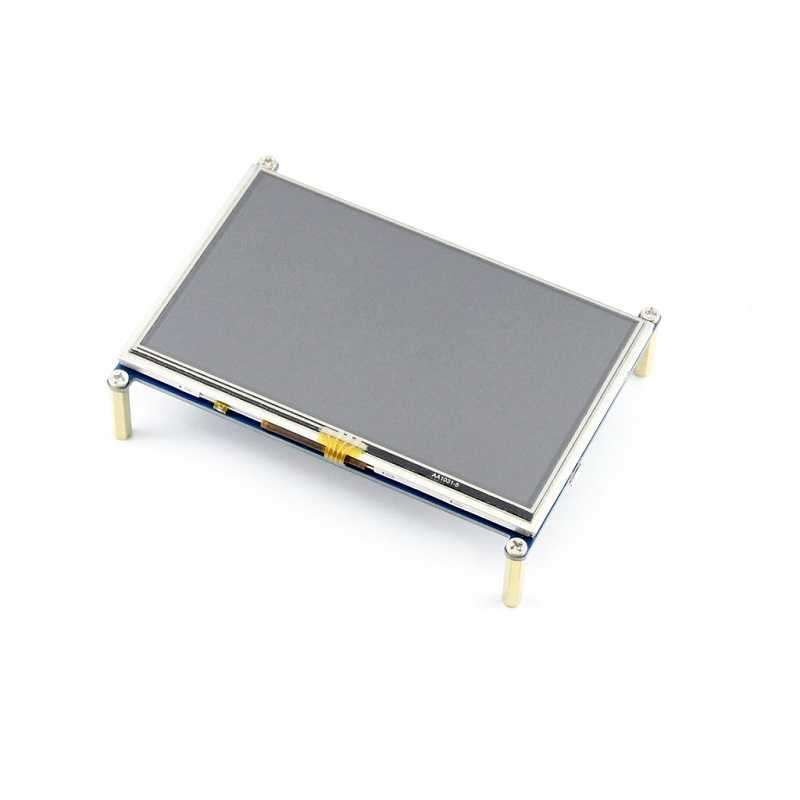

Waveshare 5 Inch Resistive HDMI LCD Display 800×480

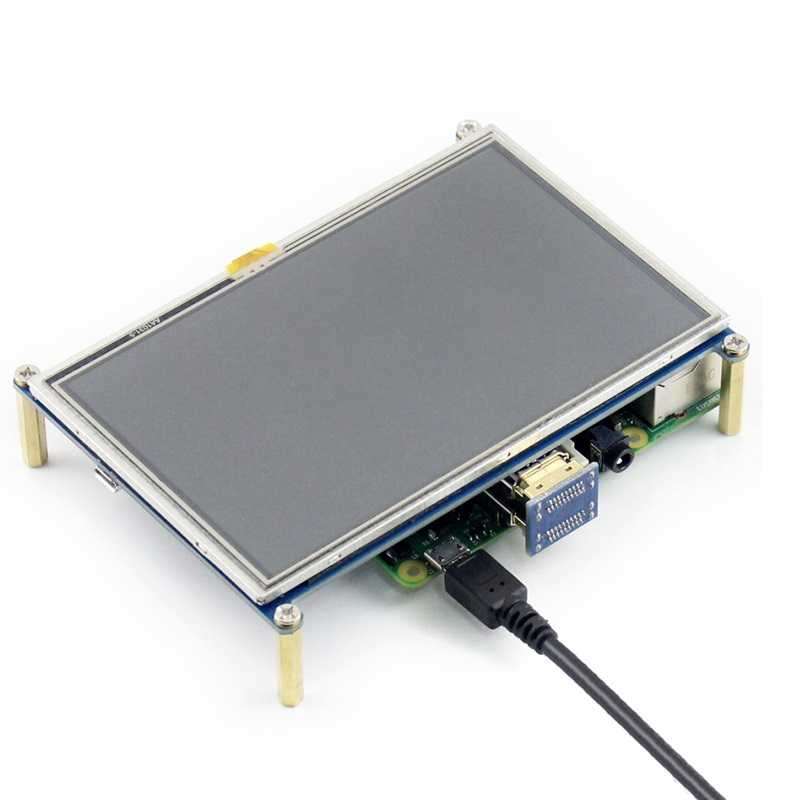

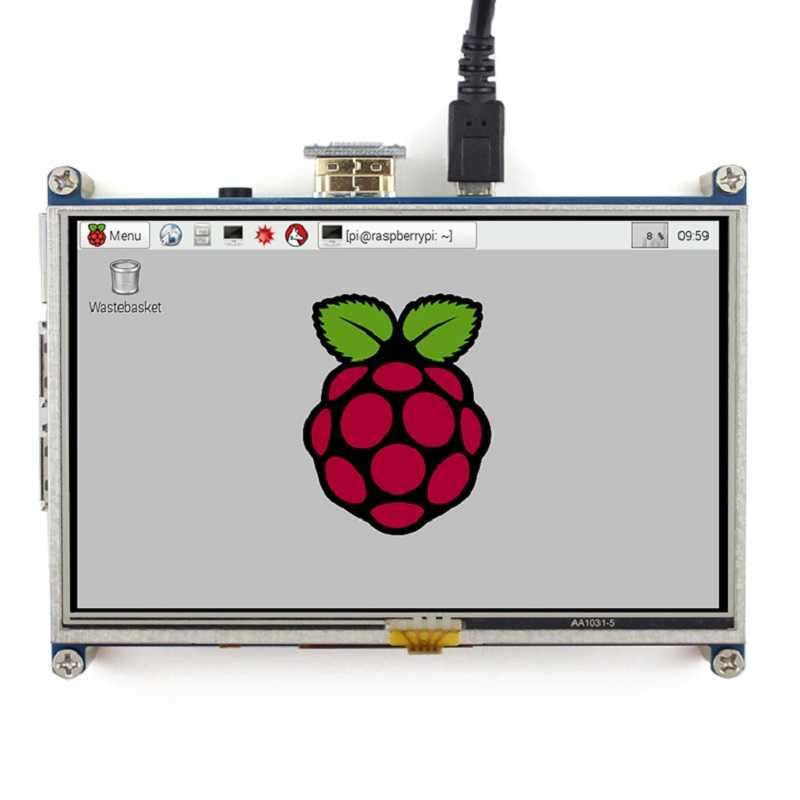

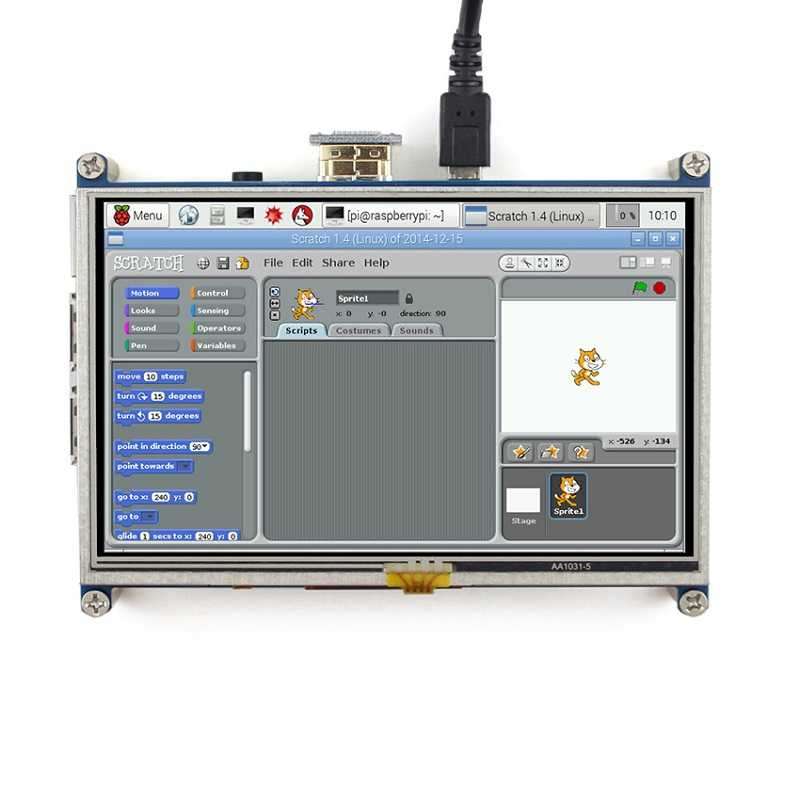

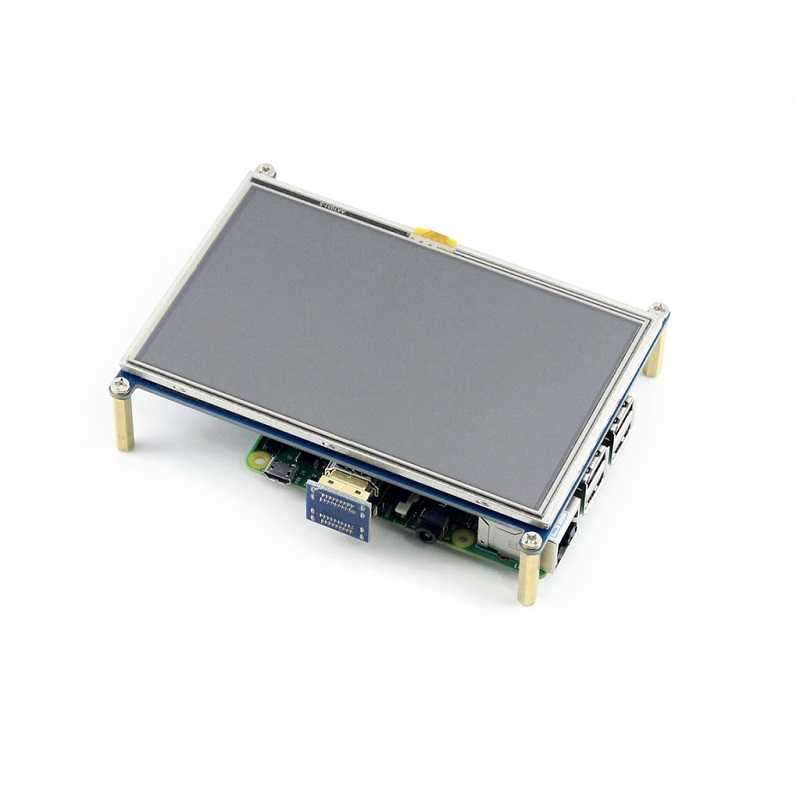

This is a Waveshare 5 Inch Resistive HDMI LCD Display 800×480 with the latest V2 version and a resolution of 800×480 which supports Raspberry Pi. This LCD can support Raspbian / Ubuntu / Kali / Retropie systems. It is compatible and can be directly inserted into any version of Raspberry Pi (except the Pi 1 Model B or Pi Zero, which requires an HDMI cable).

Note: This product can only work on a Raspberry Pi but not work on a PC. If the HDMI interface of the LCD is connected to the HDMI interface on a PC, the LCD will not display anything.
To operate this display with Raspberry Pi, refer to the given Software setting and touchscreen calibration

Features:

1. 1. 800×480 hardware resolution.
   2. Resistive touch control.
   3. It is compatible and can be directly inserted into any version of Raspberry Pi.
   4. Provide driver. (support RaspbianUbuntuKali and Retropie system).
   5. When only used for display, does not occupy any I/O resources.
   6. Only the touch function will occupy I/O resources.
   7. Support backlight control, more power saving.

   New features of the latest version of V2:

   1. Improve the backlight drive scheme, lower power consumption. (The power consumption of the V1 version is larger)
   2. Improve the screw locking method, which is more scientific and reliable.
   3. Improve PCB silkscreen, mark LCD occupied pins. (V1 version is not intuitive enough)

Package Includes:

1. 1 x 5 inch HDMI LCD

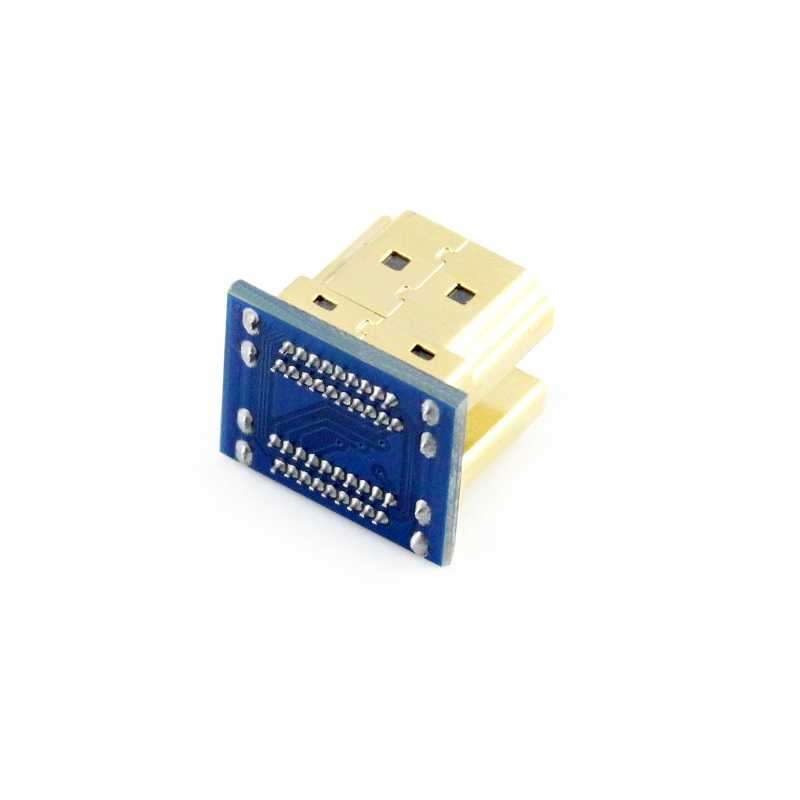

2. 1 x HDMI connector

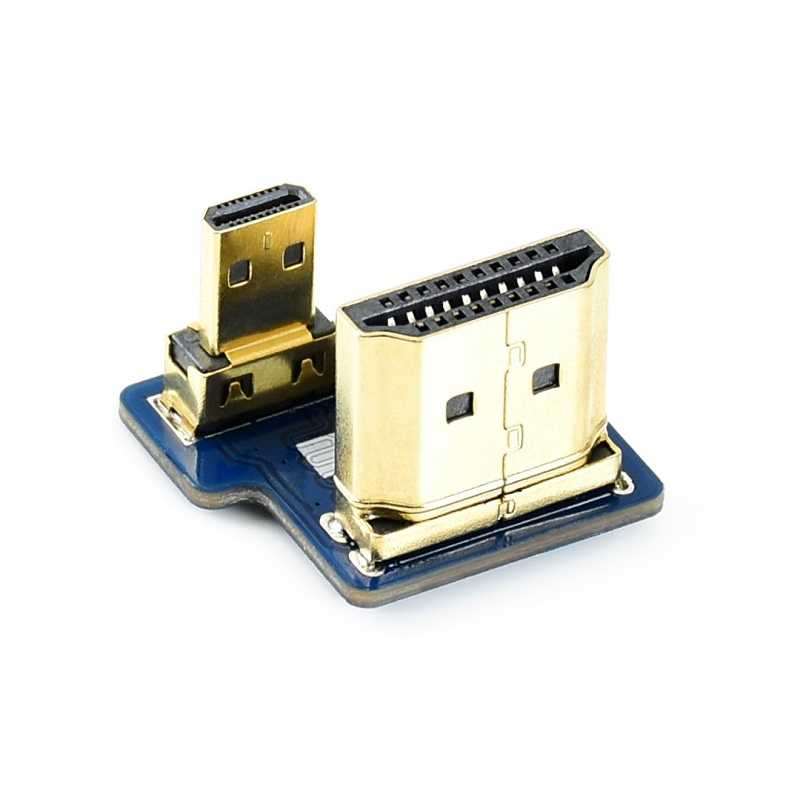

3. 1 x HDMI to micro HDMI connector
4. 1 x Touch pen

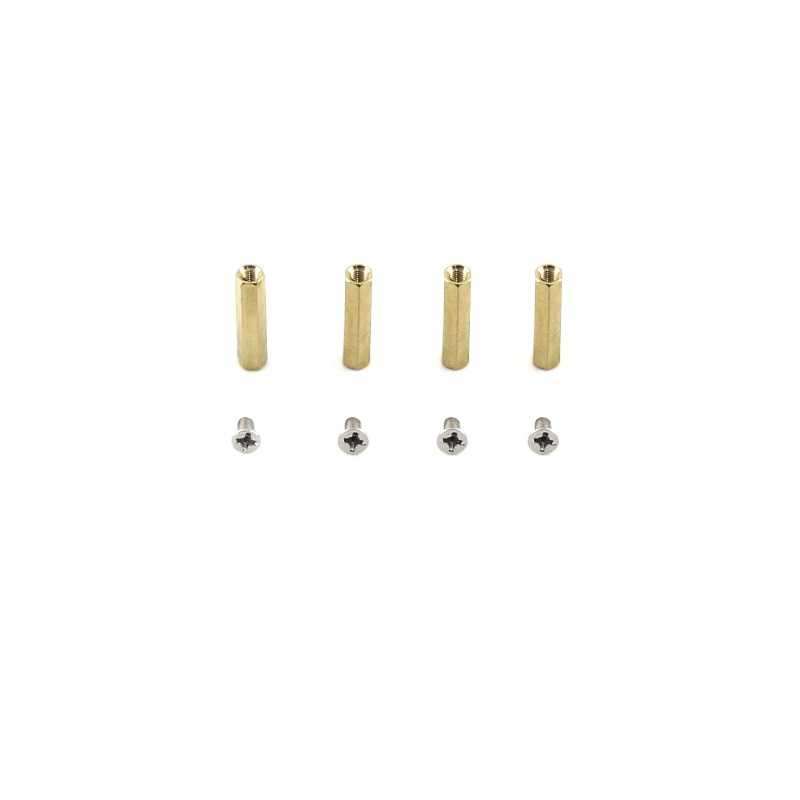

5. 1 x RPi screws pack (4pcs)
6. 1 x Quick start sheet
