Waveshare 1.9inch LCD Display Module, SPI Interface, IPS, 262K Colors

Waveshare 1.9-inch LCD Display Module with a 170×320 Resolution. It supports SPI Interface, IPS, and 262K Colors output quality.

The built-in driver of the 1.9-inch LCD Module is ST7789V2, which is the LCD controller with 240 x RGB x 320, and the resolution of the LCD is 170 (H) RGB × 320 (V). Moreover, the internal RAM of the LCD is not fully used as it can be initialized as a portrait and horizontal screen. This LCD supports the input RGB format of 12 bits, 16 bits, and 18 bits, that is, RGB444, RGB565, and RGB666. The demo used here is RGB565, which is the RGB format we generally used. As the LCD adopts a 4-wire SPI, it is not only faster in communication but also saves more GPIO headers.

Features:

1. 170×320 resolution, 262K colors, clear and colorful displaying effect

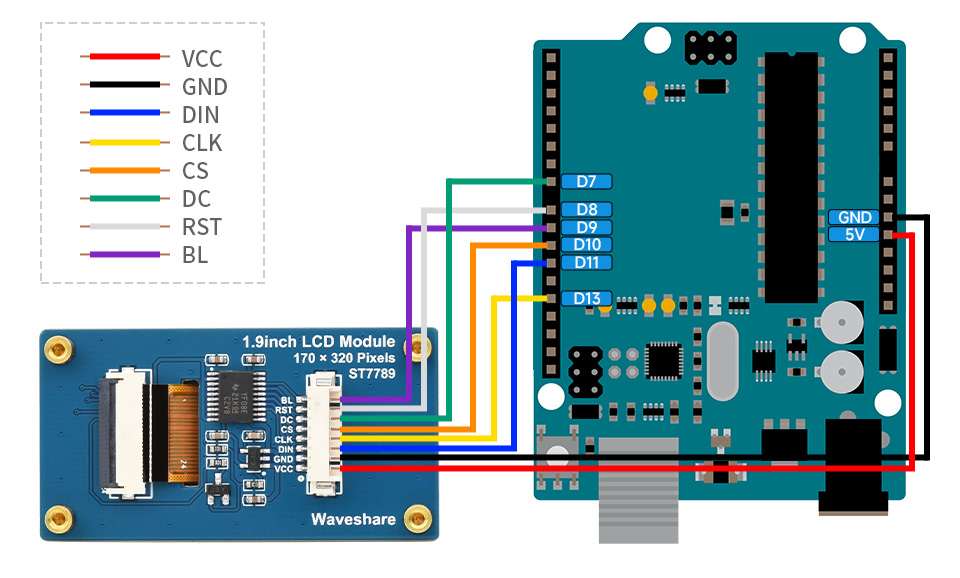

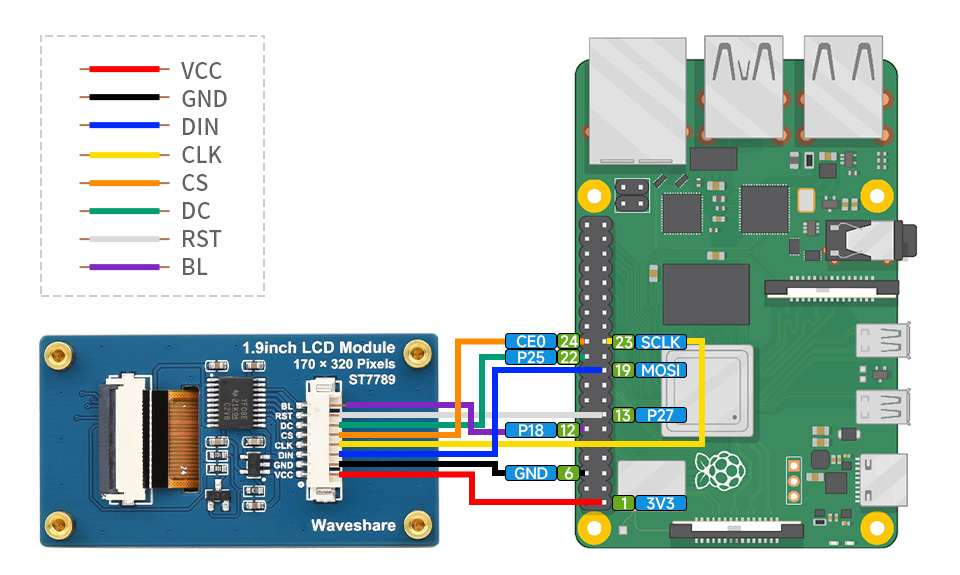

2. SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
3. Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

Package Includes:

1 x Waveshare 1.9inch LCD Display Module
