| Operating Voltage |
3.3V/5V (IO high-level voltage is as same as the power supply.) |
|---|---|
| Communication interface |
4-wire SPI / I2C |
| Screen type |
OLED |
| Control chip |
SSD1315 |
| Resolution |
128 × 64 Pixels |
| Outline dimensions |
26.0mm × 26.0mm |
| Display size |
21.74mm × 11.18mm |
| Display colors |
Blue/White/Blue and Yellow (1/4 yellow on the top) |
| Operating temperature |
-20°C ~ 70°C |
| storage temperature |
-30°C ~ 80°C |
| Viewing angle |
> 160° |
| Shipping Weight | 0.017 kg |
| Shipping Dimensions | 7 × 6 × 3 cm |
Waveshare 0.96inch OLED Display Module 128×64 Resolution SPI / I2C Communication
- Operating voltage: 3.3V/5V (IO high-level voltage is as same as the power supply.)
- Communication interface: 4-wire SPI / I2C
- Screen type: OLED
- Control chip: SSD1315
- Resolution: 128 × 64 Pixels
₨ 898.00
Out of stock
Out of stock
13
People watching this product now!

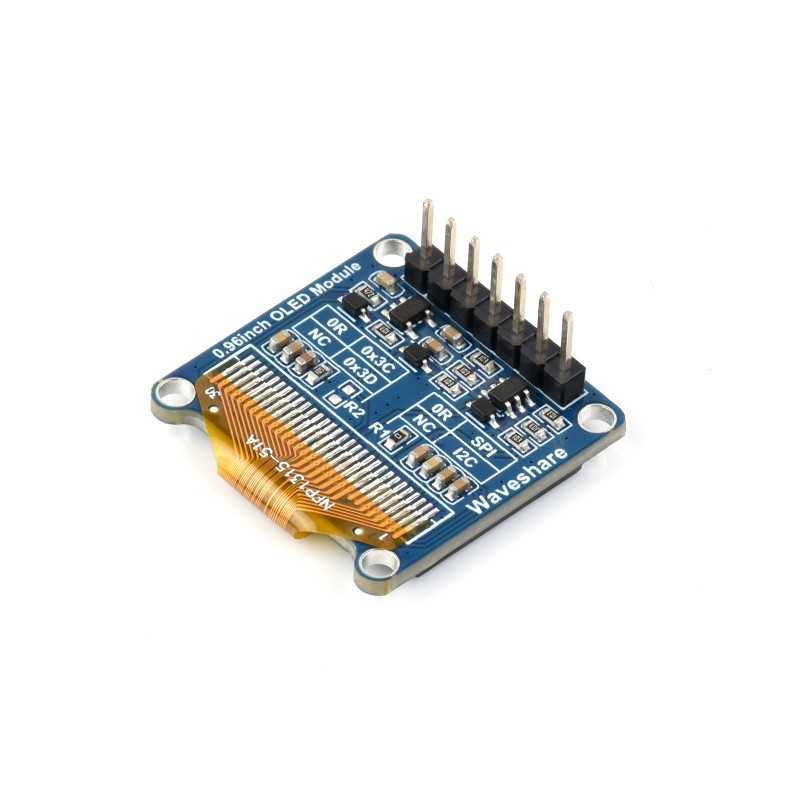

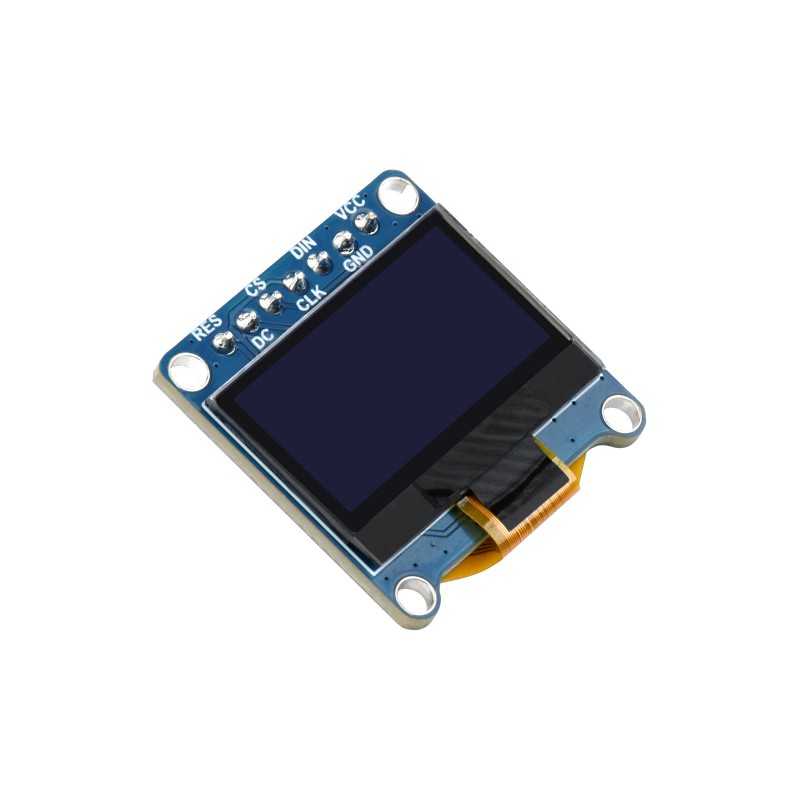

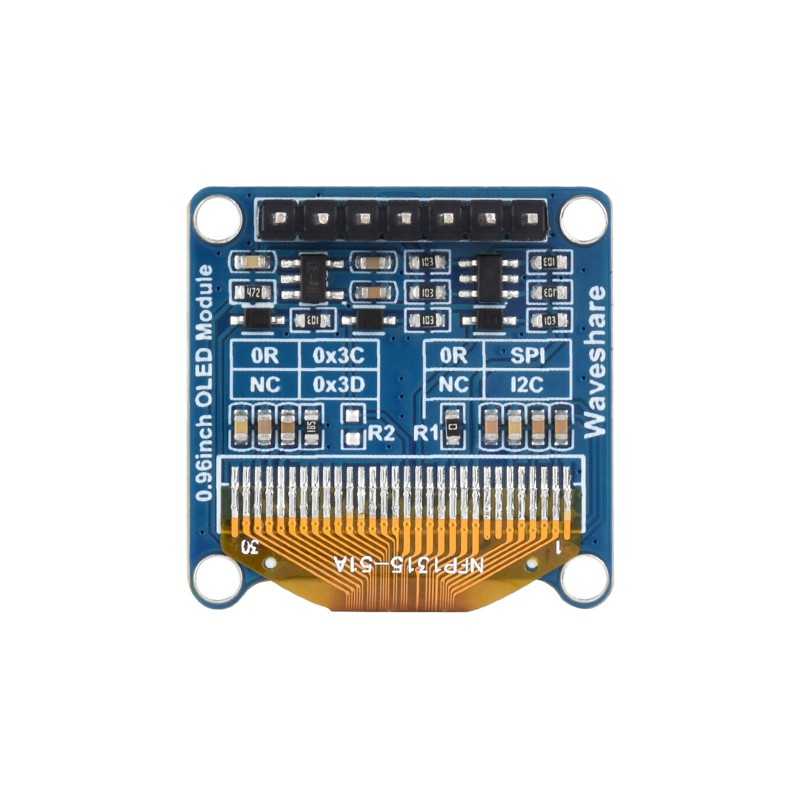

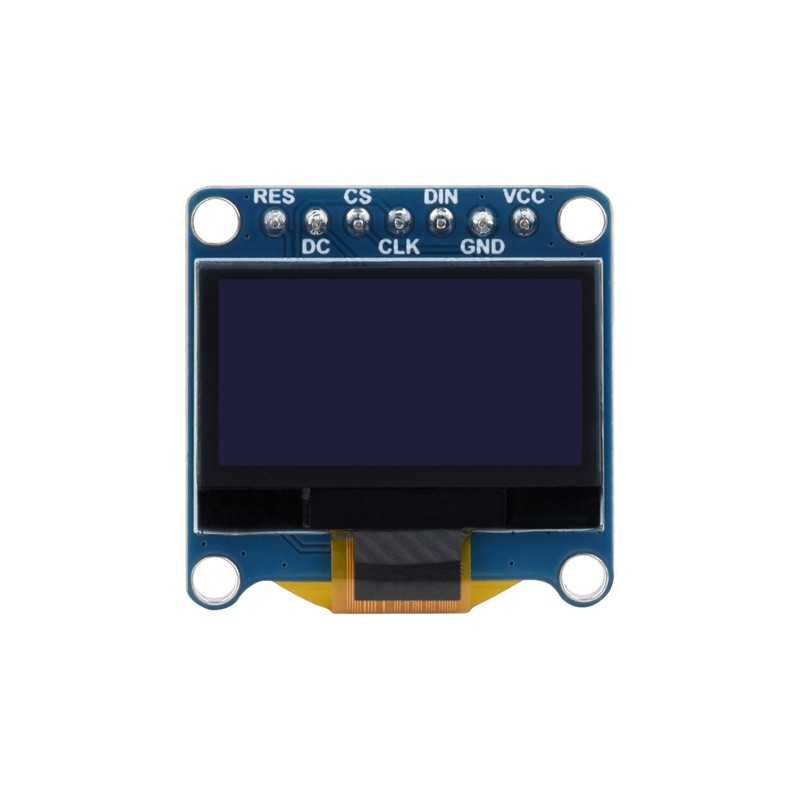

The Waveshare 0.96-inch OLED Display Module is a compact and versatile display solution designed for embedded systems and small electronic projects. It features a high-contrast 128×64 resolution OLED display, which provides clear and sharp images even in low-light conditions.
This version of the module, known as version C, has a dual-color design with an upper yellow section and a lower blue section. This makes it ideal for displaying graphical data, such as charts and graphs, as well as text-based information.
Features:
- Ultra-narrow bezel, compact size, with onboard voltage translator
- Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
- Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Package Includes:
1 x Waveshare 0.96inch OLED Display Module 128×64 Resolution SPI /I2C Communication
