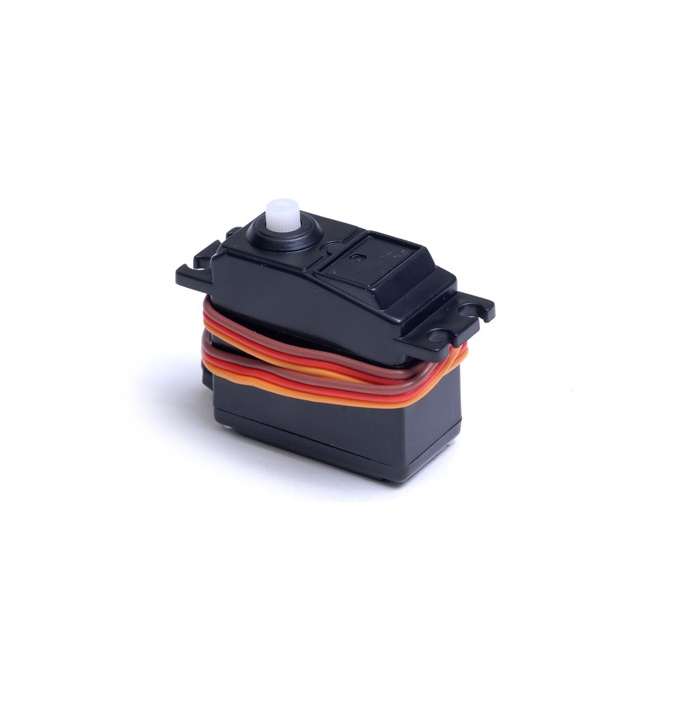

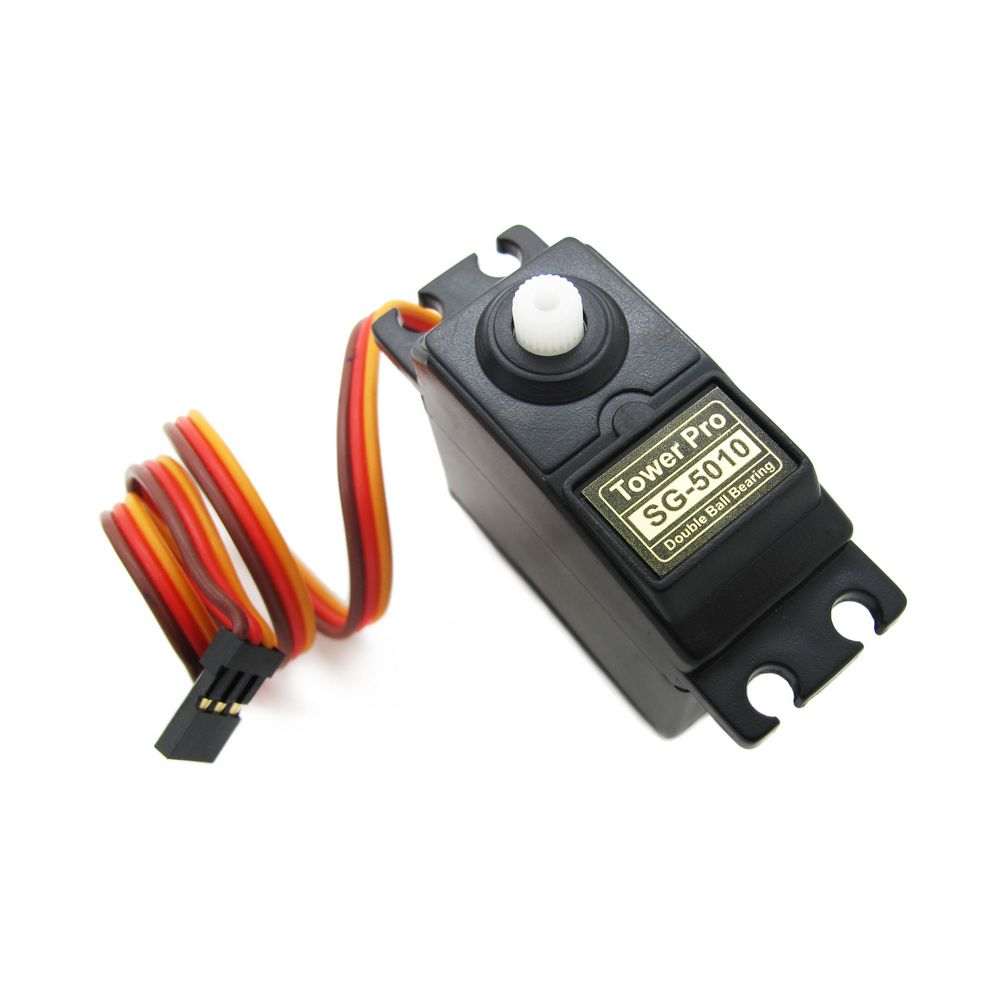

TowerPro SG-5010 Plastic Gear Servo Motor (180° Rotation)-Standard Quality
Add to Wishlist
₨ 436.00
Out of stock
Out of stock
14
People watching this product now!
| Item Type: |
TowerPro Servo Motor |
|---|---|
| Model Series: |
SG Series |
| Rotation (Degree): |
180 |
| Torque Rating (kg-cm): |
5.5 to 6.5 |
| Model No. |
SG5010 |
| Operating Voltage (VDC): |
4.8 ~ 6.6 |
| Operating Speed @4.8V |
0.20sec/60° |
| Operating Speed @6.6V |
0.16sec/60° |
| Stall Torque @ 4.8V (Kg-Cm) |
5.5 |
| Stall Torque @6.6V (Kg-Cm) |
6.5 |
| Operating Temperature (°C) |
0 to 55 |
| Dead BandWidth (μs) |
1 |
| Gear Type |
Glass Fiber |
| Servo Plug Type |
JR |
| Cable Length (cm) |
30 |
| Length (mm): |
38 |
| Width (mm): |
20 |
| Height (mm): |
40 |
| Weight (g): |
39 |
| Shipping Weight | 0.039 kg |
| Shipping Dimensions | 10 × 8 × 6 cm |
TowerPro Servo Motors are optimum-quality and affordable cost servos.! They are suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.
When you purchase TowerPro motors in India, they are almost usually NOT ORIGINAL, and these are no exception… These are NOT ORIGINAL Tower Pro Servos, either. However, they are dead cheap and Serve the purpose. We put them to the test and found them to be of good quality for the price.
You can buy E Max Servos OR Orange servos if you’re seeking high-quality servos.
Wire Description
Features :
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power

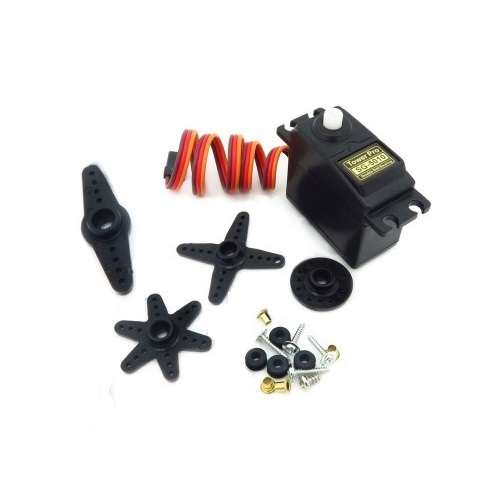

Package Includes :
1 x TowerPro SG-5010 standard Servo
1 x Set of Horns
- Two Point
- Four Point
- Six Point
1 x Set of Screws
1 x Circular Disc
