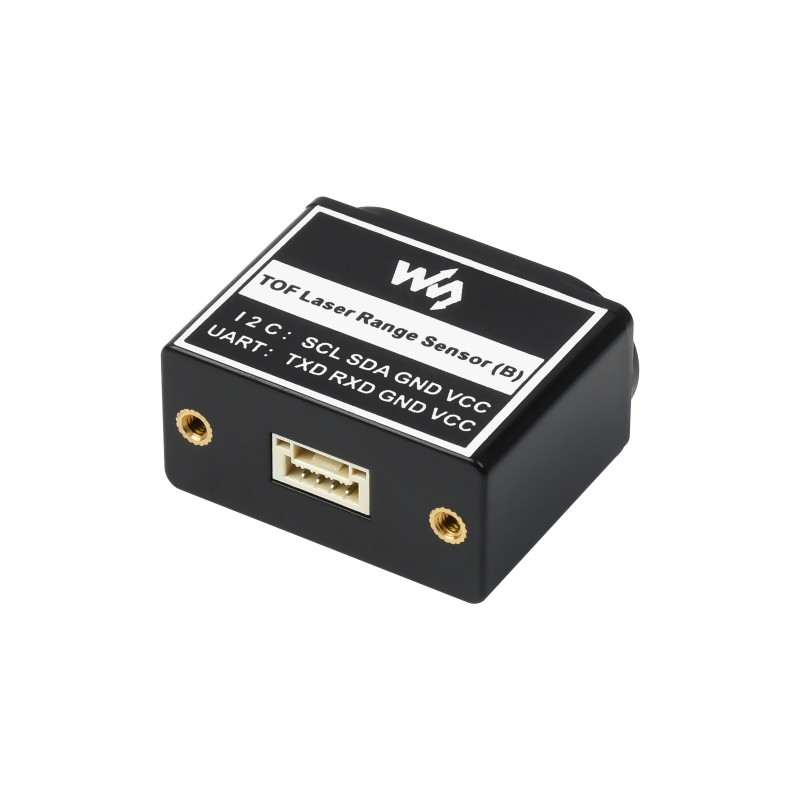

TOF (Time Of Flight) Laser Range Sensor (B), UART / I2C Bus, Long Range
- Typical measuring range 0.10 ~ 15.0m
- Typical measuring accuracy 0.10 ~ 2m ±2cm; 2 ~ 15m ±2%
- Resolution 1mm
- Field of View: 1° ~ 2°
- Interfaces: UART , I2C
₨ 100.10
Out of stock
Out of stock
14
People watching this product now!
| Typical measuring range(m) |
0.10 ~ 15.0m |
|---|---|
| Typical measuring accuracy |
0.10 ~ 2m ±2cm; 2 ~ 15m ±2% |
| Resolution |
1 mm |
| Depth Field of View (Deg.) |
1° ~ 2° |
| Interfaces |
UART , I2C |
| Power Consumption |
610mw |
| Operating Temperature (°C) |
-10°c ~ 60°c |
| I2C |
up to 400kbps |
| Power Supply(V) |
3.7 ~ 5.2v |
| Wavelength (nm) |
750 ~ 830nm |
| Baudrate uart |
115.2kbps ~ 3000kbps |
| Weight (g): |
7.7 |
| Dimensions (mm) |
22.7 × 28 × 13.6mm |
| Shipping Weight | 0.013 kg |
| Shipping Dimensions | 7 × 5 × 2 cm |

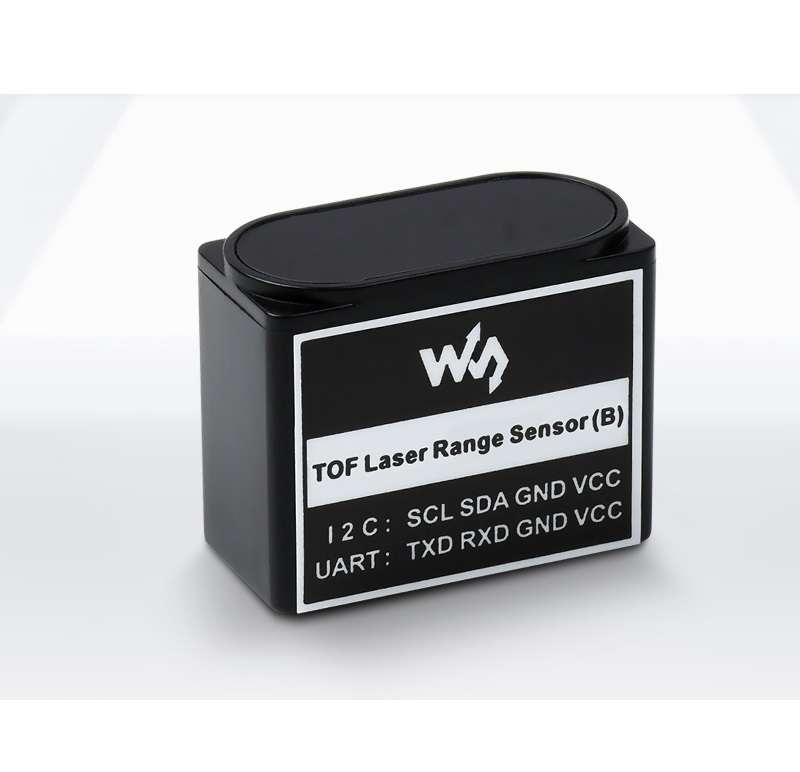

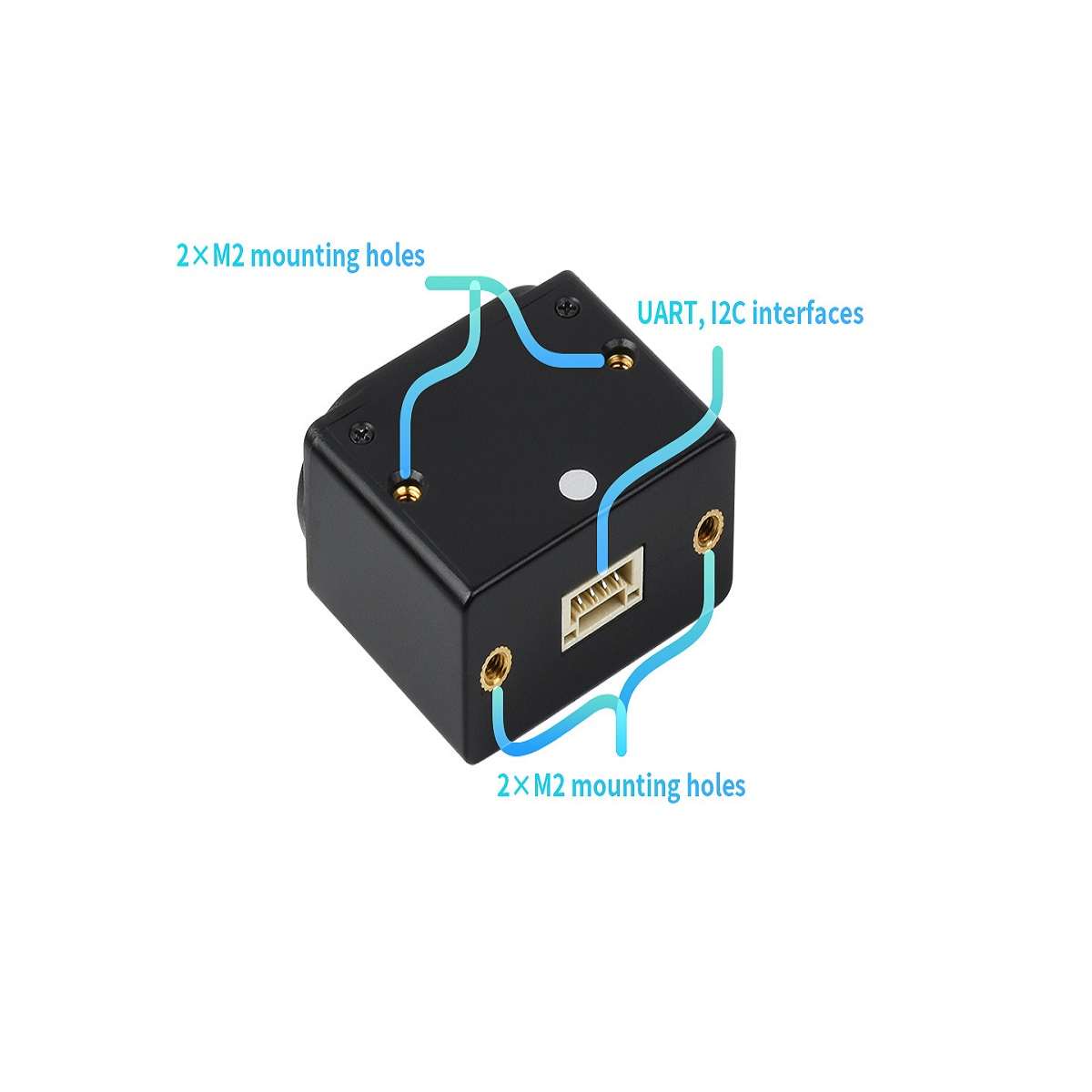

The TOF Laser Range Sensor (B) is a TOF-based (time of flight) laser ranging sensor with an embedded MCU and ranging algorithm, which is capable of offering up to 15m measuring range, ±2% accuracy, and 1mm resolution. It supports UART or I2C communication bus, features a longer measuring distance and higher light interference resistance capability due to its ultra-narrow FOV, suitable for either indoor or outdoor conditions.
This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance/route planning, as well as drone altitude setting/ceiling detection, and more…
Useful link:
TOF Laser Range Sensor (B) tutorial.
Features:
- Long Range Zone: 15M
- Short Blind Zone: 1ocm
- Refresh Rate: 15Hz
- Field of View: 1° ~ 2°
- Interfaces: UART , I2C
Package Includes:
1 x TOF (Time Of Flight) Laser Range Sensor (B)
