TMC2130 V1.1 Stepper Motor Driver Module
- Two-phase stepper motor single-phase current 1.2A (peak 2.5A) motor current can be adjusted.
- Only SPI support.
- Broken down into 256.
- Combines maximum efficiency and best motor torque for noiseless operation.
₨ 846.00
Out of stock
Out of stock
20
People watching this product now!
| Model Series: |
TMC Series |
|---|---|
| Voltage Rating (V): |
5.5 to 45 VDC |
| Current Rating (A): |
1.2 to 2.5 |
| Logic Voltage (V) |
3 ~ 5 |
| Single Phase Current (A) |
1.2 |
| Micro Step |
1/256 |
| Length (mm): |
20.5 |
| Width (mm): |
15.5 |
| Height (mm): |
18 |
| Weight (g): |
11 |
| Shipping Weight | 0.016 kg |
| Shipping Dimensions | 10 × 7 × 2 cm |

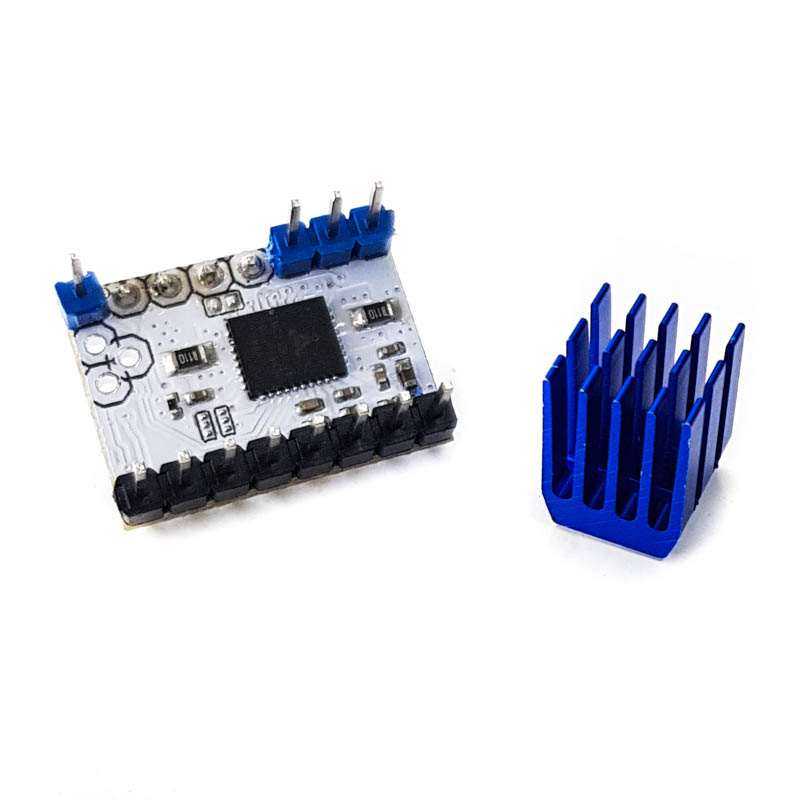

TMC2130 V1.1 Stepper Motor Driver Module can be used separately or in combination with a CNC shield or 3D printer. This V1.1 has the SPI pins soldered upwards so that they are accessible from above. These Stepper Drivers offer high-efficiency noiseless operations at variable loads, with a full complement of extra features too!
Note: The motor direction is reversed with respect to the A4988 and DRV8825 based drivers. You can make changes to the software or mirror the motor pins (hardware).
Features:
- Two-phase stepper motor single-phase current 1.2A (peak 2.5A) motor current can be adjusted
- Only SPI support
- Broken down into 256
- Combines maximum efficiency and best motor torque for noiseless operation.
- High-precision sensorless motor load detection.
- Reduce energy consumption by 75%.
- High-load drive without out-of-step.

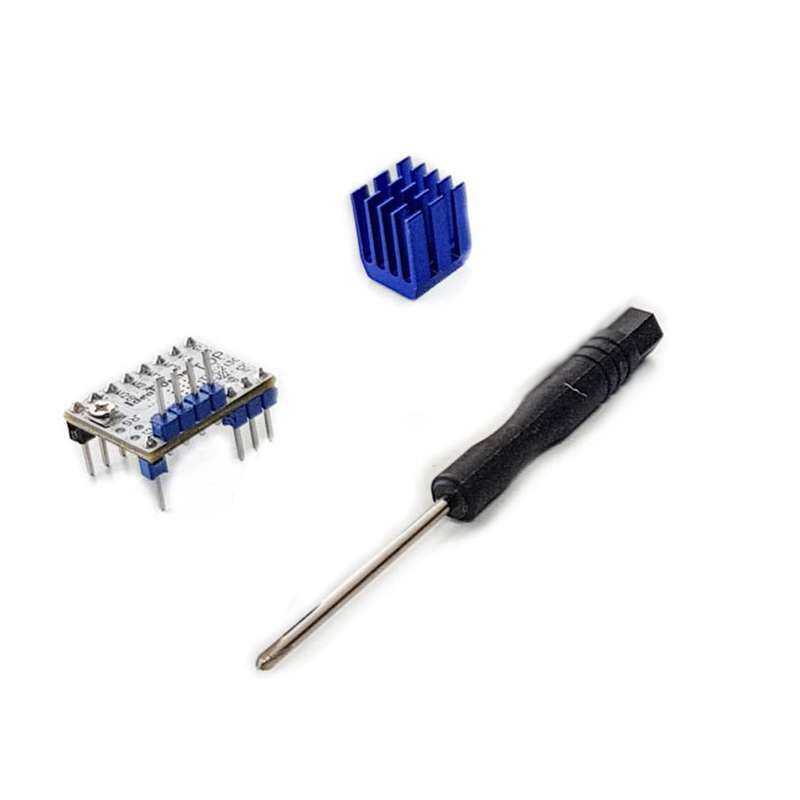

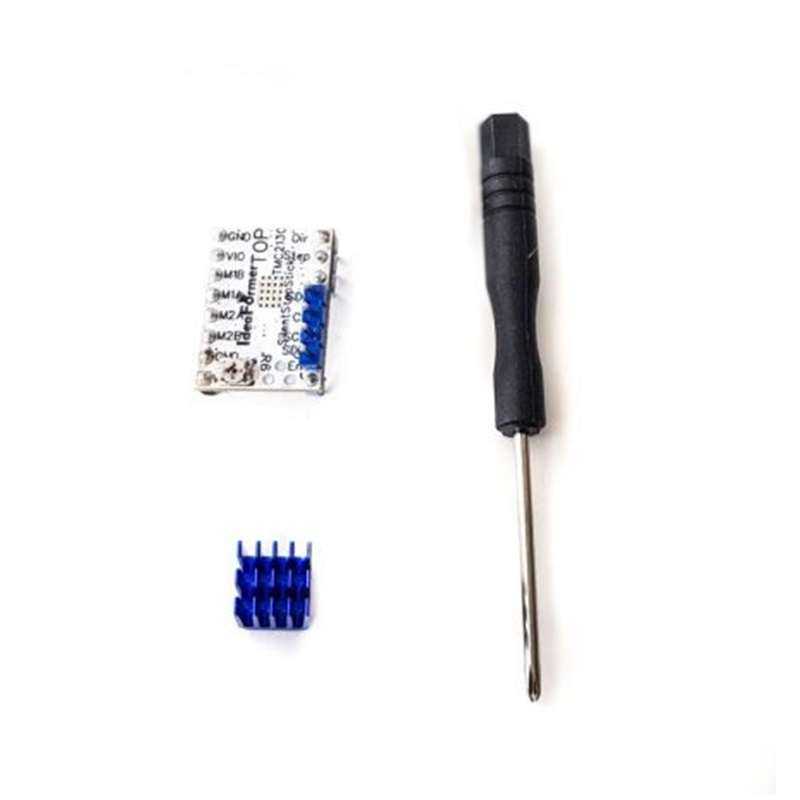

Package Includes:
1 x TMC2130 V1.1 stepper motor driver.
1 x Heat Sink.
1x Screwdriver.
