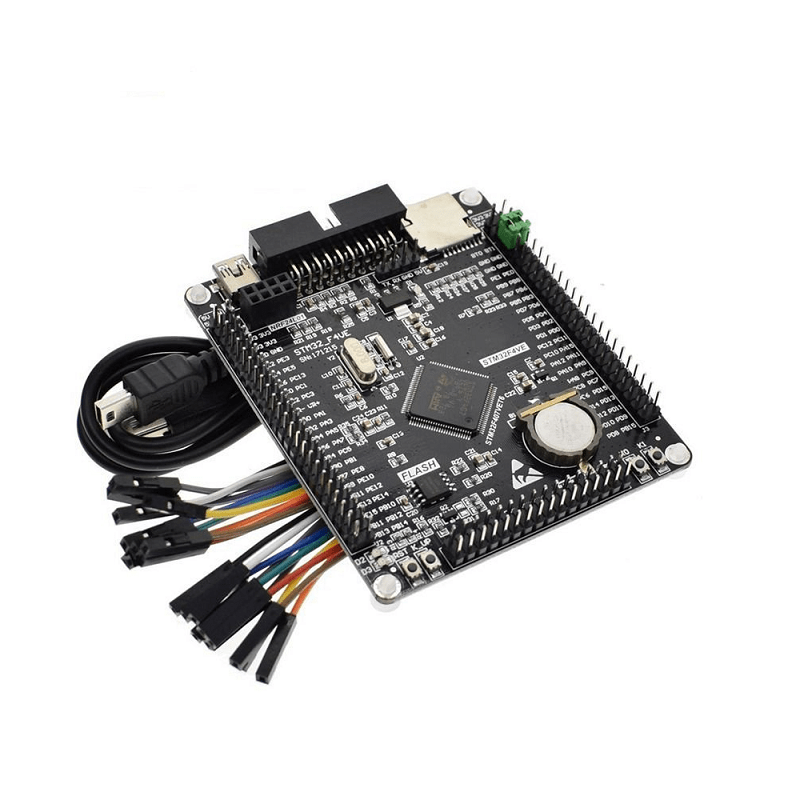

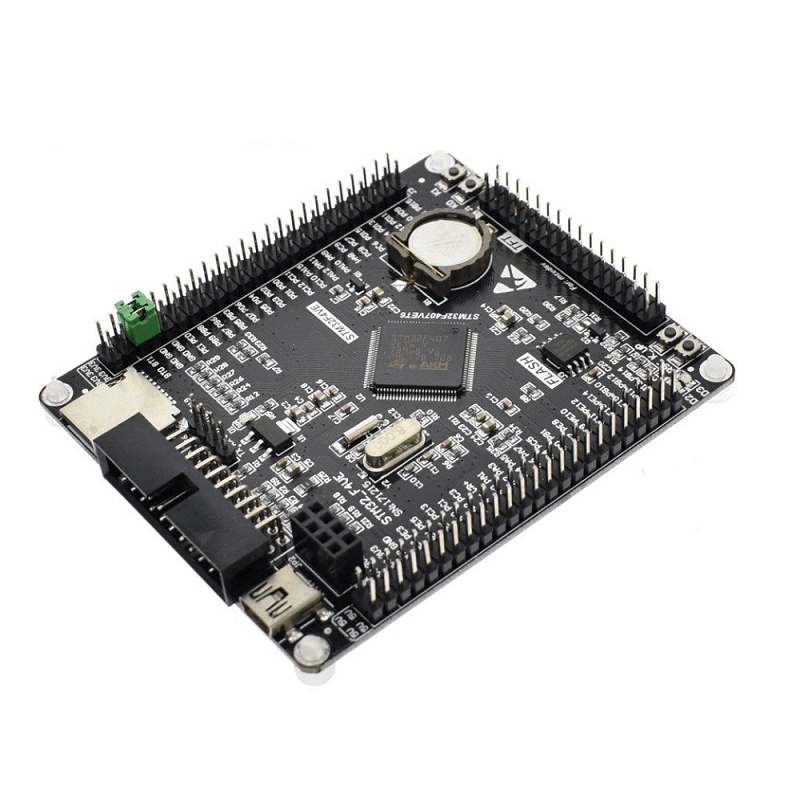

STM32F407VET6 Arm Cortex-M4 core with DSP and FPU

The STM32F405xx and STM32F407xx family is based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.

NOTE : STM32F407VET6  and STM32F407ZGT6 on chip working is same.

Features:

1. Core: Ar  32-bit Cortex-M4 CPU with FPU
2. LCD parallel interface, 8080/6800 modes
3. Low-power operation
4. 3×12-bit, 2.4 MSPS A/D converters
5. 2×12-bit D/A converters
6. General-purpose DMA
7. Up to 17 timers
8. Up to 140 I/O ports with interrupt capability

Package Includes:

1 x STM32F407VET6 Arm Cortex-M4 core with DSP and FPU

10 x Female-Female Jumper Cable

1 x USB Cable
