Sound Detection Sensor Module

Add to Wishlist

 92.00

Out of stock

Out of stock

18 People watching this product now!
Operating voltage

3.3V-5V

Digital switching output (high and low levels)

0 and 1

Operating current (Vcc=5V)

4-8mA

Microphone sensitivity (1Khz)

52-48dB

Microphone Impedance

2.2KΩ

Microphone Frequency

16-20Khz

Microphone S/N ratio

54dB

Shipping Weight 0.003 kg
Shipping Dimensions 4 × 3 × 2 cm

A sound sensor is defined as a module that detects sound waves through their intensity and converts it to electrical signals.

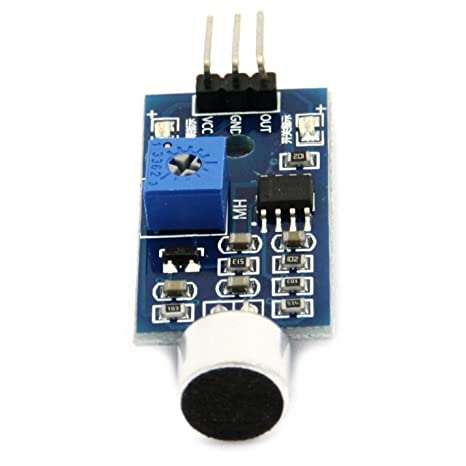

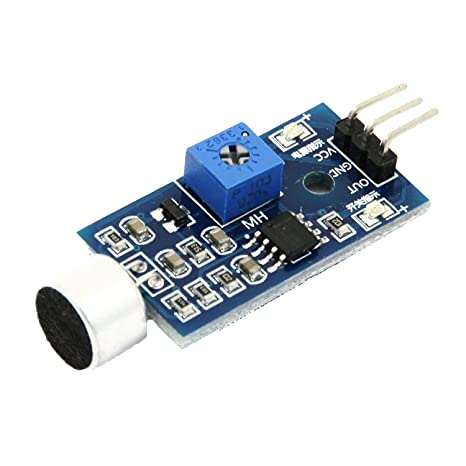

The sound detection sensor module for Arduino detects whether the sound has exceeded a threshold value. Sound is detected via microphone and fed into an LM393 op-amp. The sound level set point is adjusted via an onboard potentiometer. When the sound level exceeds the set point, an LED on the module is illuminated and the output is sent low.


Features:

  1. Operating voltage 3.3V-5V
  2. Outputs digital switching output (high and low levels 0 and 1
  3. Operating current (Vcc=5V): 4-8mA
  4. Microphone sensitivity (1Khz): 52-48dB
  5. Microphone Impedance: 2.2KΩ
  6. Microphone Frequency: 16-20Khz
  7. Microphone S/N ratio: 54dB
  8. Signal output indication
  9. Single-channel signal output
  10. Outputs low level and the signal light when there is sound

Package Includes:

1 x Sound Detection Sensor Module
