| Operating Voltage (VDC): |
5V -1A |
|---|---|
| Resolution |
480×480 |
| WIFI |
wifi IEEE 802.11 b/g/n 2.4 GHz Bluetooth 5 (LE) |
| Operating Temperature (°C) |
-10 – 50degree C |
| Working Humidity Range |
0 – 90%RH |
| Length (mm): |
96.2 |
| Width (mm): |
92.2 |
| Height (mm): |
19 |
| Weight (g): |
231 |
| Shipping Weight | 0.241 kg |
| Shipping Dimensions | 14 × 13 × 5 cm |

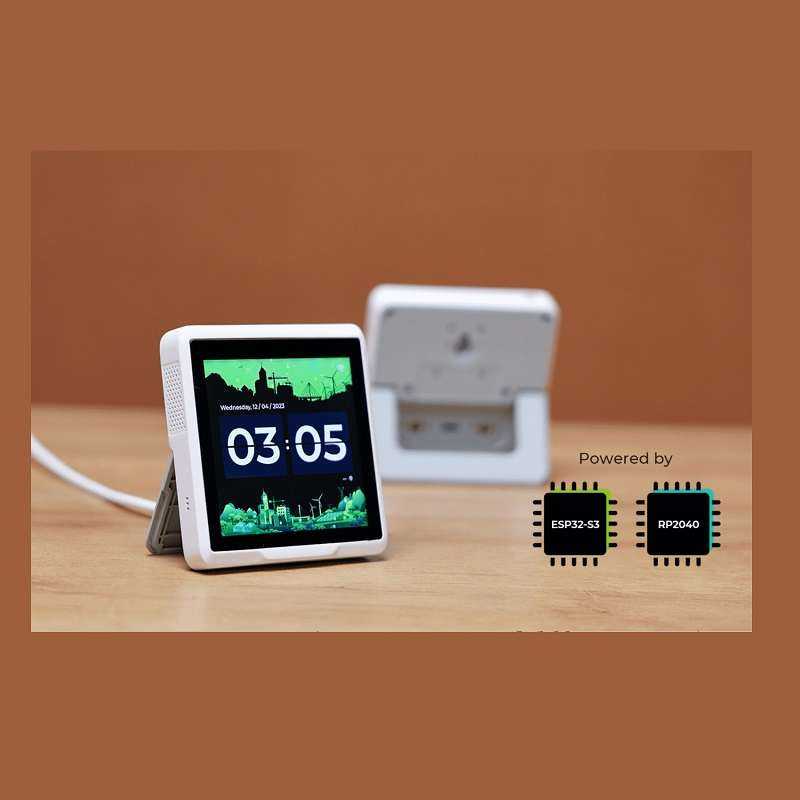

SenseCAP Indicator D1, 4-Inch Touch Screen IoT development platform powered by ESP32S3 & RP2040
- Screen: 3.95 Inch, Capacitive RGB Touch Screen
- Screen Resolution: 480 x 480 pixels
- Power Supply: 5V DC, 1A
- Processor: ESP32-S3: Xtensa® dual-core 32-bit LX7, up to 240MHz / RP2040: Dual ARM Cortex-M0+ up to 133MHz
- Flash: ESP32S3: 8MB/ RP2040: 2MB
- External Storage: Support up to 32GB Micro SD Card (not included)
₨ 100.10
Out of stock
Out of stock
14
People watching this product now!
SenseCAP Indicator D1 4-Inch Touch Screen IoT development platform powered by ESP32S3 & RP2040 driven by ESP32 and RP2040 dual-MCU and supports Wi-Fi/BLE communication.
The board comes with a USB Type-C and two Grove interfaces, supports ADC and I2C transmission protocols, and can easily connect to other peripherals with rich GPIOs.

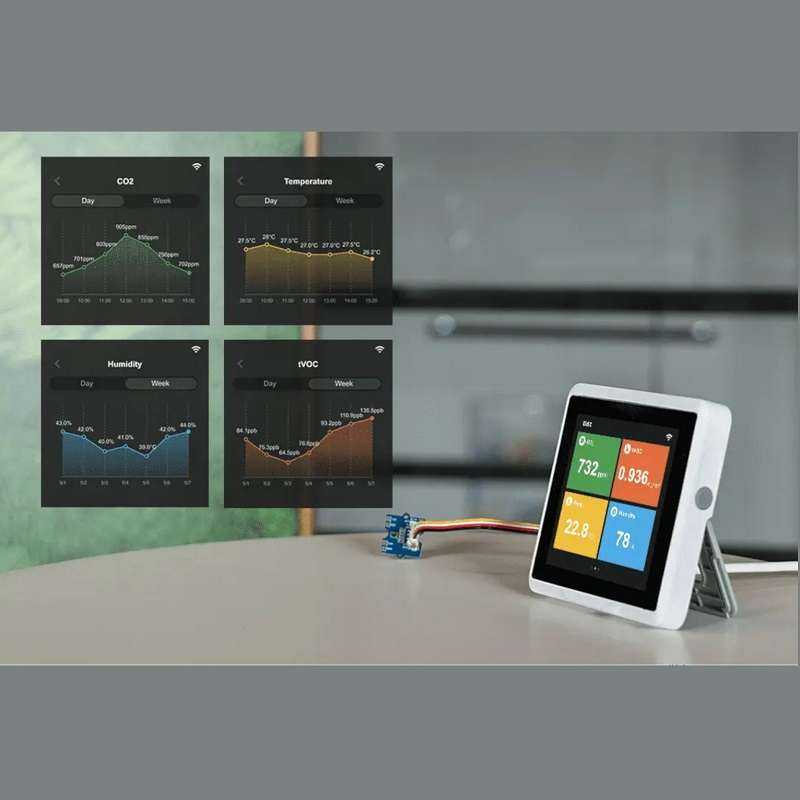

SenseCAP Indicator is a fully open-source powerful IoT development platform for developers. Native firmware enables you to use it as a desktop air quality detector or you could customize one of your own styles. There are built-in tVOCs and CO2 sensors, and a Grove TH sensor is provided to connect externally to reduce heat interference to get more accurate temperature and humidity results.
Features:
- Dual MCUs and Rich GPIOs
- Real-time Air Quality Monitoring
- Fully Open Source Platform
Package Includes:
1 x Sense CAP Indicator
1 x USB-C Cable (1M)
