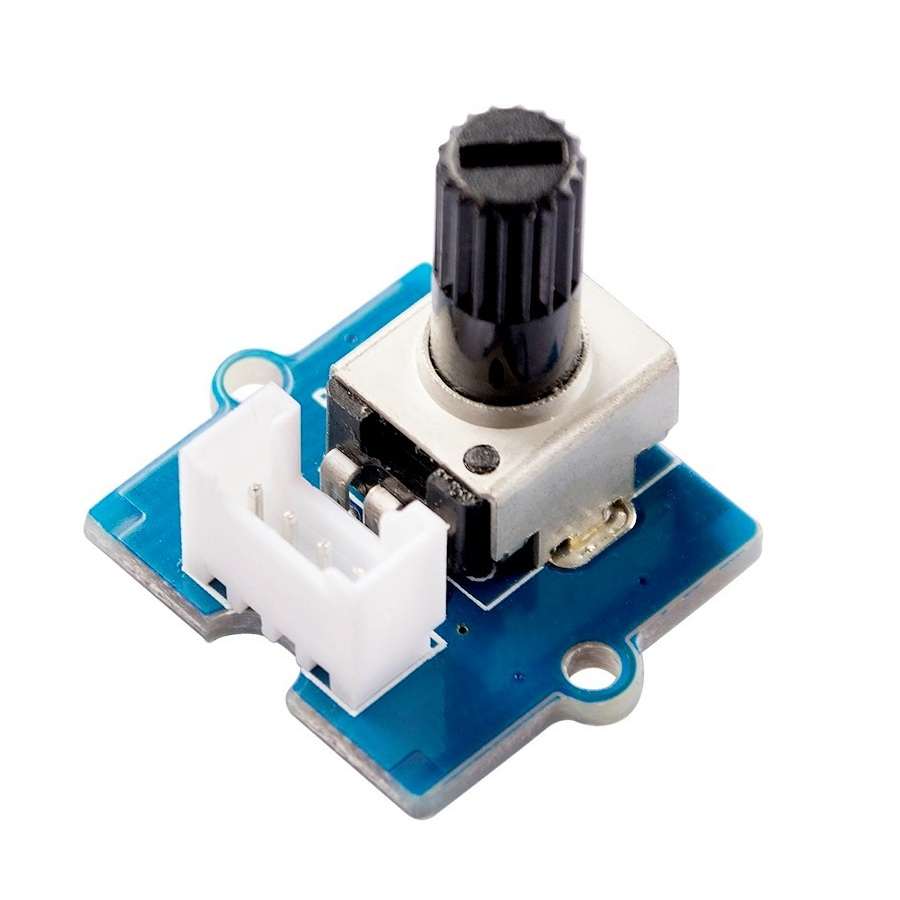

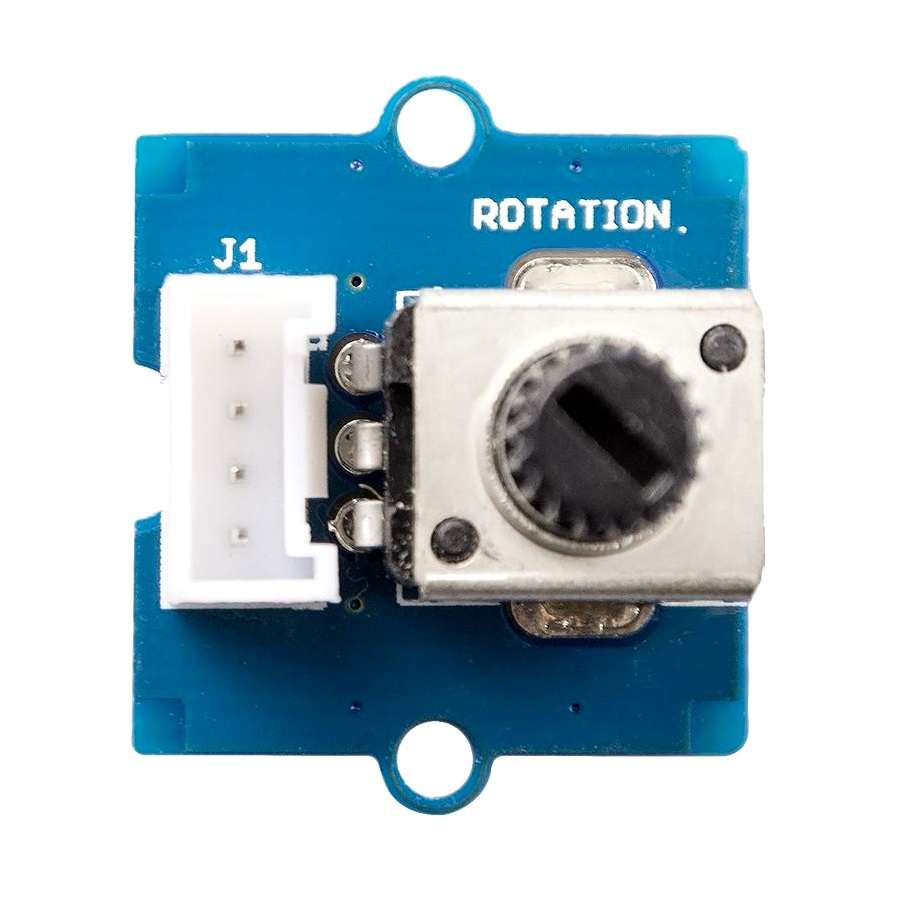

SeeedStudio Grove Rotary Angle Sensor

Do you need a sensor to produce analog output values between zero volt and Vcc? So, We have a module, the Grove – Rotary Angle Sensor especially for you. It comes with an inbuilt potentiometer. You can produce a wide range of analog output values between 0 and Vcc (5V DC with Seeeduino) on its D1 connector with the potentiometer twig. The angular range is 300 degrees with a linear change in value and the resistance value is 10 kΩ which is perfect for use with Arduino. The sensor is a Grove base module with compatible interface with the Grove system.

For all Grove users (especially beginners), Seeed Studio provides guidance PDF documents. Please download and read through Preface – Getting Started and Introduction to Grove before using the product. This is a suitable product for not only Grove users but also all electronic enthusiasts. So, why wait? Buy now!

Features:

1. Angular range: 300˚
2. Output range: 0 to Vcc
3. Grove compatible interface
4. Easy to use
5. Grove base module

Useful Links:
Tutorial

Project Links:

Using Grove-Rotary Angle Sensor(P) to Control Grove LED

Package Includes:

1 x Grove – Rotary Angle Sensor
