User Manual
RunCam Phoenix 2 JB Micro FPV Camera for Quadcopters
- Model : RunCam Phoenix 2
- Image Sensor : 1/2″ COMS Sensor
- Horizontal Resolution : 1000TVL
- Lens : 2.1mm ​(M12)​ FOV155° (4:3)
- Signal System : PAL / NTSC Switchable
₨ 100.10
Out of stock
Out of stock
12
People watching this product now!
| Max. Operating Current (mA) |
200mA@5V ; 85mA@12V |
|---|---|
| Electronic Shutter Speed |
Auto |
| Lense Viewing Angle (FOV) |
2.1mm ​(M12)​ FOV155° (4:3) |
| Horizontal Resolution (TVL) |
1000 |
| Screen Format |
4:3 / 16:9 Switchable |
| Max Gain |
Auto |
| S/N Ratio (dB) |
>50dB (AGC OFF) |
| Signal System |
PAL/NTSC Non Switchable |
| Housing Material |
ABS |
| Length (mm): |
19 |
| Width (mm): |
19 |
| Height (mm): |
20 |
| Net weight (g): |
9 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 7 × 5 × 4 cm |

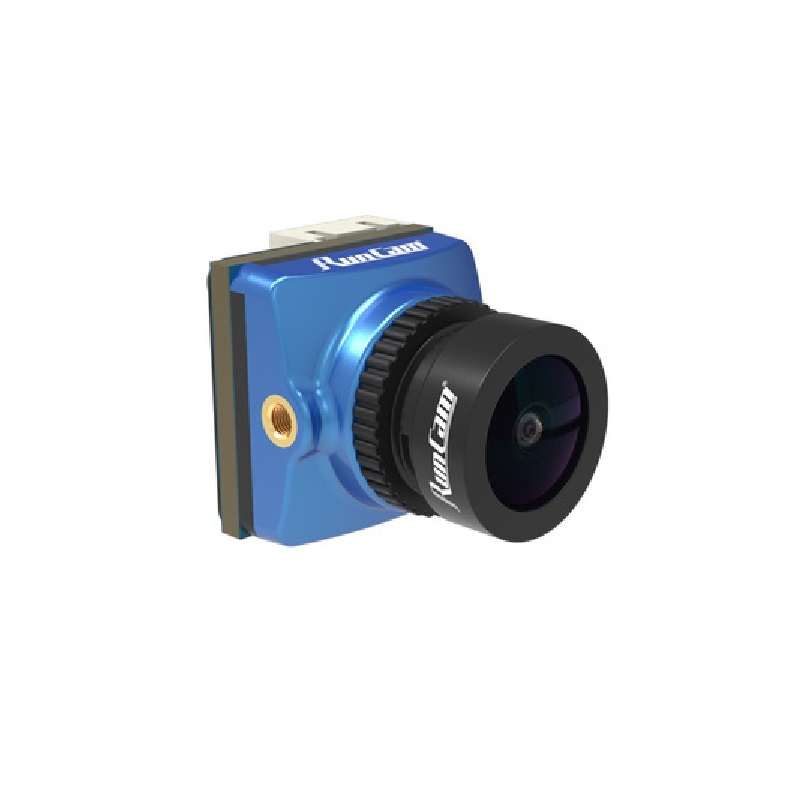

This is a RunCam Phoenix 2 JB Micro FPV Camera for Quadcopters.

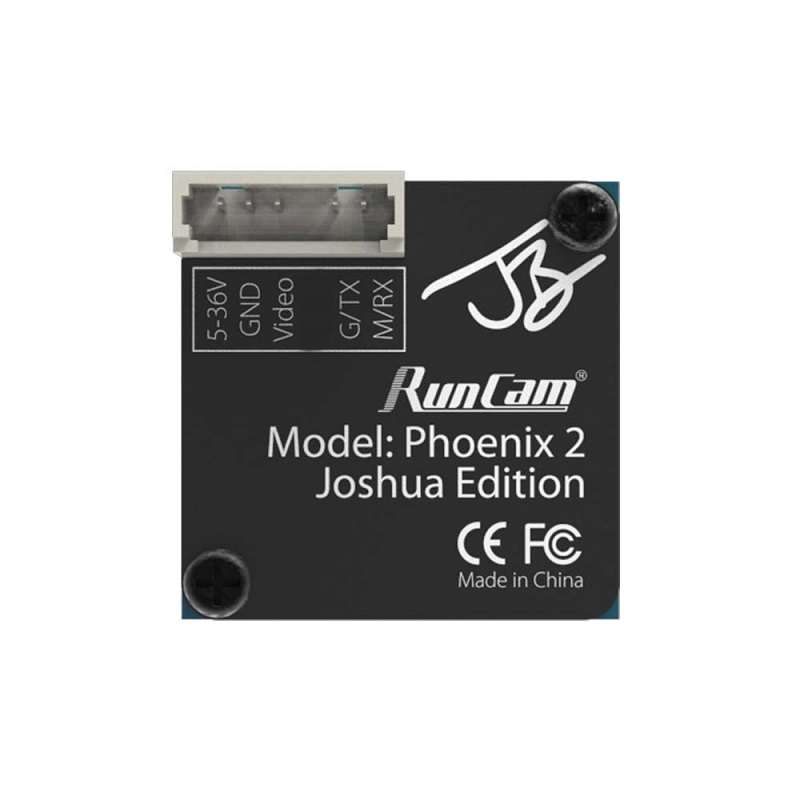

The Runcam Phoenix 2 – Joshua Bardwell Edition is the new successor of the previous Runcam Phoenix 2 editions. The Joshua Bardwell Edition comes with a UART control mode, which will be displayed at the top left corner of your screen.
Just like the last editions, this camera works great in the day and night time due to its f/2.0 big aperture. With upgraded CPU and upgrade 1/2″ high-performance image sensor, the RunCam Phoenix 2 produces vivid high-resolution pictures rich yet natural color.
The high quality 6 layers of glass lens have an f/2.0 aperture, which brings less red flare and less purple fringing effect. This camera also has less shimmer than some FPV cameras.
NOTE : Camera color may be different.
Features :
- New upgraded CPU for better performance
- High quality 6 layer glass lens for better picture
- PAL/NTSC & 4:3/16:9 Switchable
- Supports Image Mirror & Flip
- Low latency, high performance
- Excellent low light performance
Package Includes:
