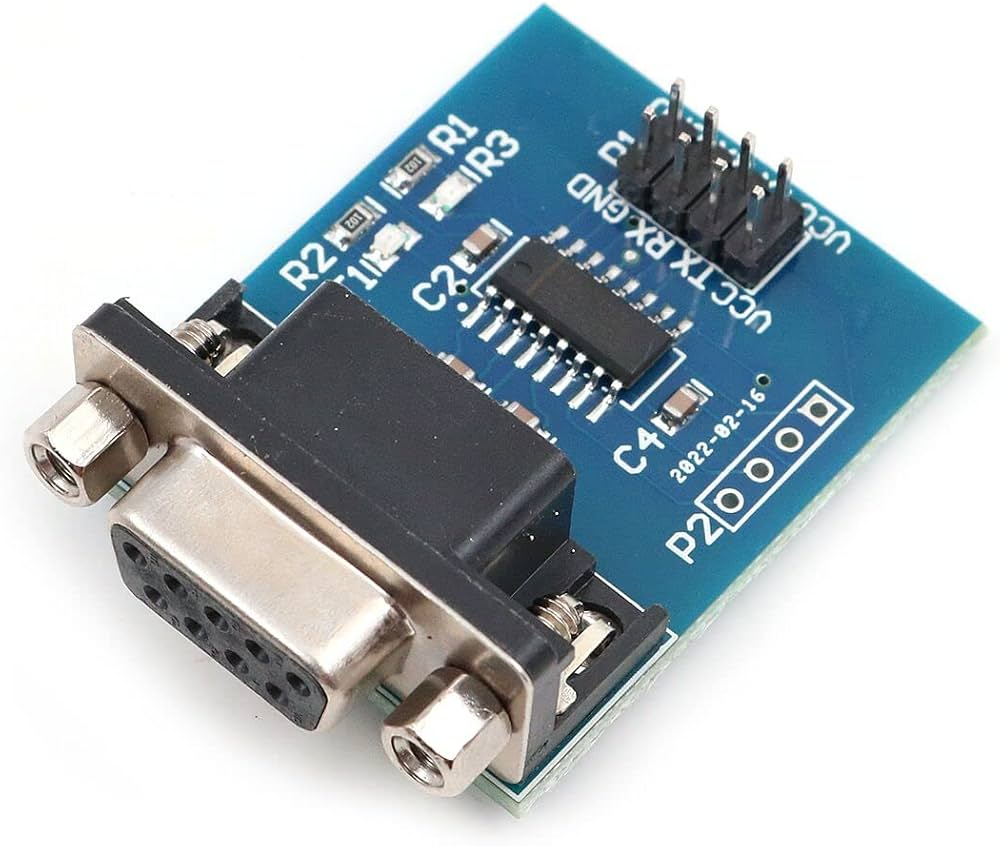

RS232 to TTL

### RS232 to TTL Overview

1. **Conversion**: Converts RS232 voltage levels (-12V to +12V) to TTL voltage levels (0V to 5V or 0V to 3.3V), and vice versa, for serial communication compatibility.

2. **Interface**: Typically integrates a MAX232 or similar IC to handle voltage level conversion and signal inversion between RS232 and TTL standards.

3. **Applications**: Used to connect RS232 devices, such as computers and modems, to microcontrollers and embedded systems operating at TTL levels.

### Typical Uses:

– **Microcontroller Interface**: Allows microcontrollers to communicate with RS232 devices like PCs and industrial equipment.

– **Embedded Systems**: Enables TTL-level devices to interface with legacy RS232 serial peripherals.

– **DIY Electronics**: Essential for hobbyists and developers interfacing different serial communication standards in their projects.

SKU: 142107277

 219.00

0 in stock

0 in stock

12 People watching this product now!

306efb5aee5a0158ff770476771c0db7 RoboNepal Buy in Nepal### RS232 to TTL Overview

1. **Conversion**: Converts RS232 voltage levels (-12V to +12V) to TTL voltage levels (0V to 5V or 0V to 3.3V), and vice versa, for serial communication compatibility.

2. **Interface**: Typically integrates a MAX232 or similar IC to handle voltage level conversion and signal inversion between RS232 and TTL standards.

3. **Applications**: Used to connect RS232 devices, such as computers and modems, to microcontrollers and embedded systems operating at TTL levels.

### Typical Uses:

– **Microcontroller Interface**: Allows microcontrollers to communicate with RS232 devices like PCs and industrial equipment.

– **Embedded Systems**: Enables TTL-level devices to interface with legacy RS232 serial peripherals.

– **DIY Electronics**: Essential for hobbyists and developers interfacing different serial communication standards in their projects.
