DATASHEET

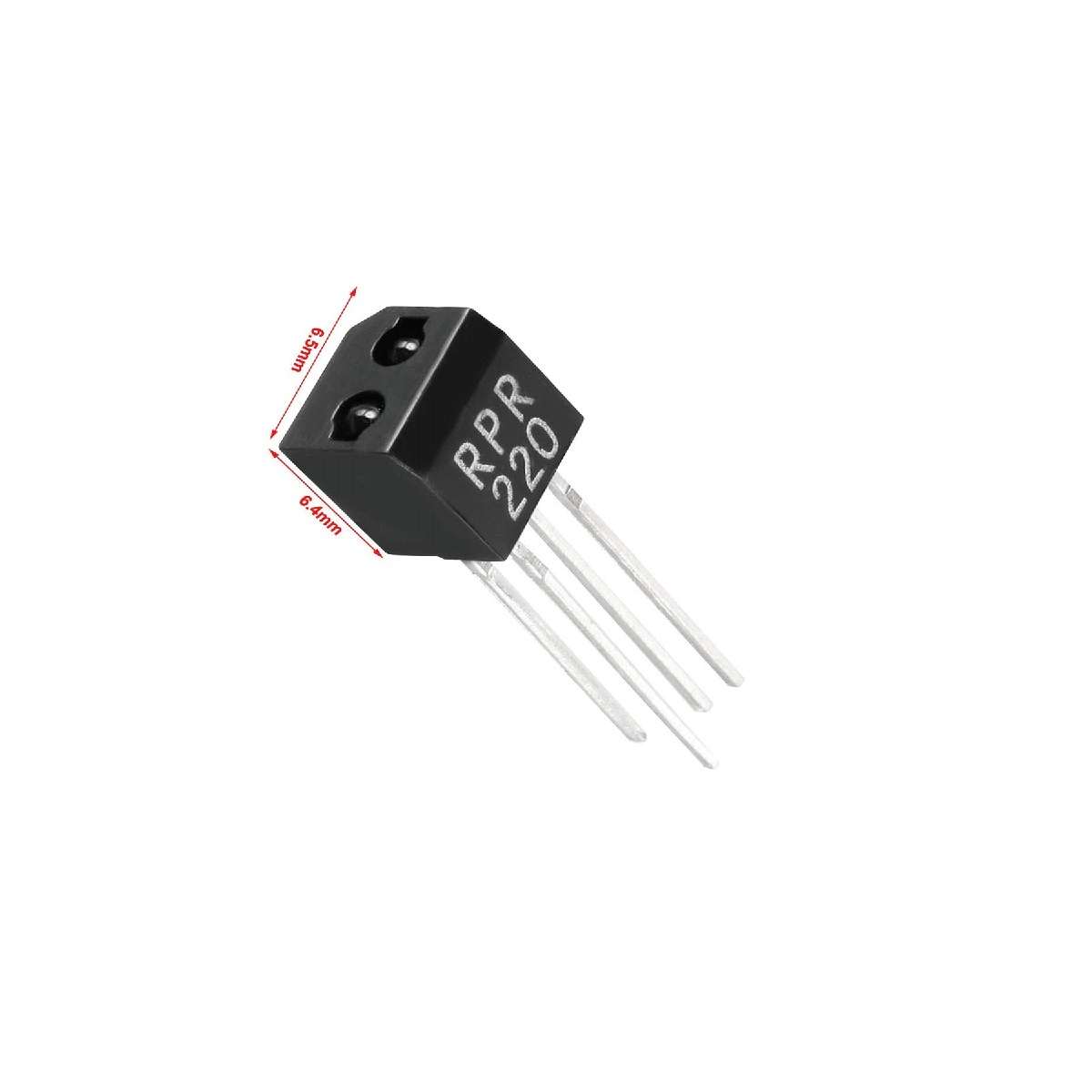

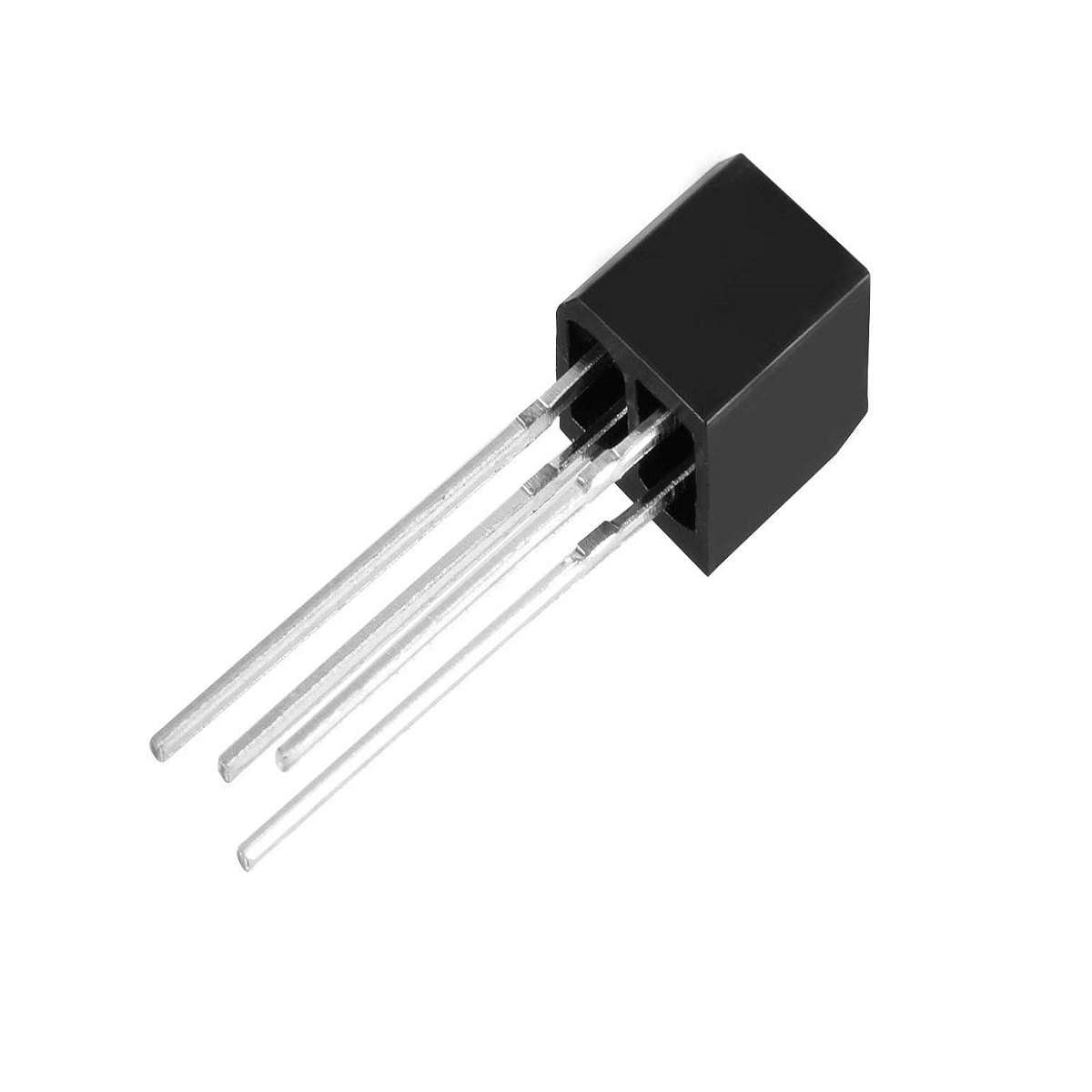

RPR220 Reflective Sensor Module Optoelectronic Switch
- Model : RPR220
- Detection Distance：1-13mm
- Working Voltage:DC 30V(Max)
- Output Type:Photo Transistor
₨ 140.00
Out of stock
Out of stock
10
People watching this product now!
| Model |
RPR220 |
|---|---|
| Working Voltage |
DC 30V(Max) |
| Output |
30mA(Max) |
| Output Type |
Photo Transistor |
| Number of Pins |
4 |
| Detection Distance |
1-13mm |
| Color |
Black |
| Material |
Plastic, Metal |
| Pin Length |
16.3mm |
| Black Head Size (L x W x H) mm |
6.5 x 4.9 x 6.5 |
| Net Weight |
3g |
| Shipping Weight | 0.08 kg |
| Shipping Dimensions | 5 × 5 × 2 cm |
The RPR220 is a reflective photosensor that uses infrared light to detect the colour and distance of the reflecting surface. The plastic lens enables the detector to be highly sensitive which makes it very useful in compact disk players, copiers, and office automation equipment.
Features:
- High performance
- Easy to mount on PCB
- Widely applicable
Package Includes:
1 x RPR220 Reflective Sensor
