Realtek AMB82-Mini IoT AI Camera Arduino Dev. Board
Add to Wishlist
₨ 100.10
Out of stock
Out of stock
19
People watching this product now!
| Model |
AMB82-Mini |
|---|---|
| MCU |
ARMv8M up to 500MHz |
| NPU |
Intelligent Engine @ 0.4 TOPS |
| Memory |
internal DDR2 128MB on SoC and 16MB external SPI Nor flash on Dev. Board |
| Wi-Fi |
802.11 a/b/g/n 1×1, Dualband 2.4GHz/5GHz Wi-Fi Wi-Fi simple config |
| Bluetooth |
BLE 5.1 |
| Security |
Hardware cryptographic engine |
| Audio Codec |
ADC/DAC/I2S |
| ISP/Video |
HDR / 3DNR / WDR ; H264/H265/JPEG video encoder 1080p@30fps +720p@30fps |
| Camera module |
JXF37 1920×1080 full HD CMOS image sensor with wide view angle FOV 130° optical lens |
| Interface |
1 Microphone on Dev Board, 2 Micro USB_B, 1 MicroSD card slot, 2 tact switch button |
| Shipping Weight | 0.037 kg |
| Shipping Dimensions | 12 × 8 × 3 cm |

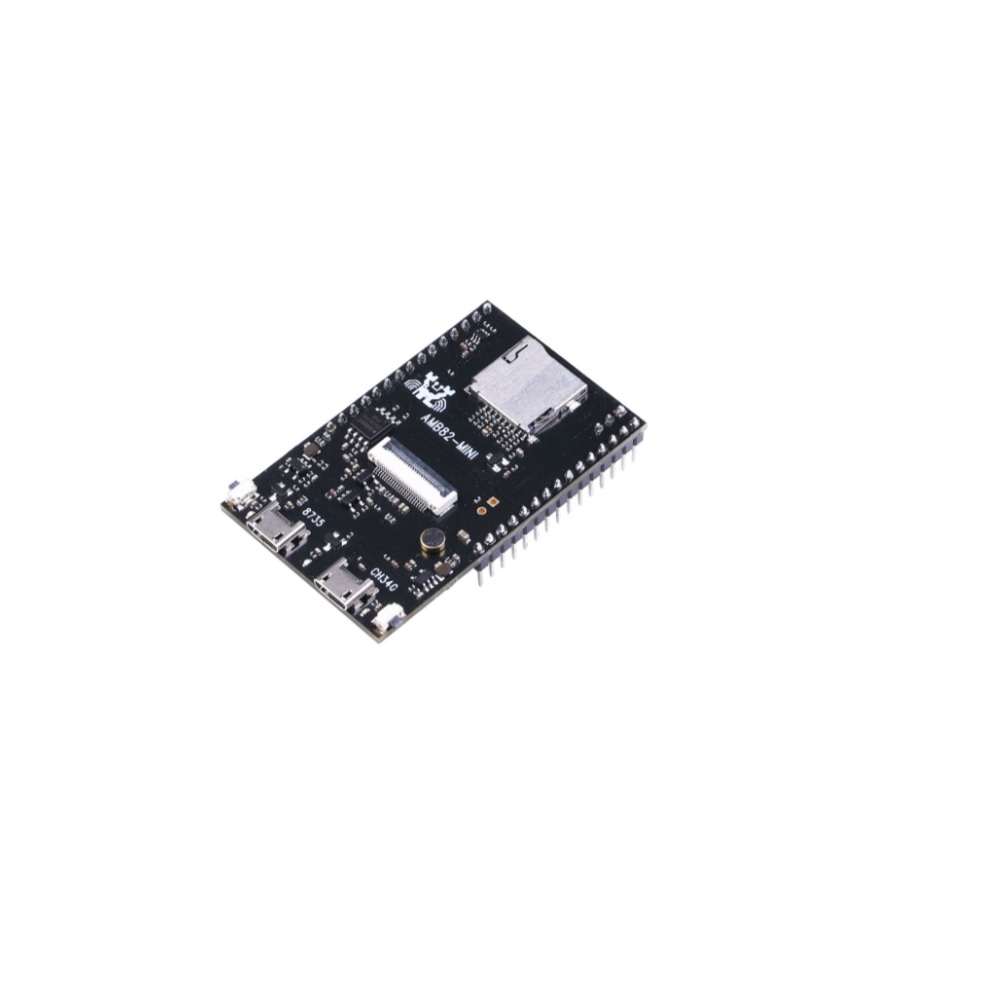

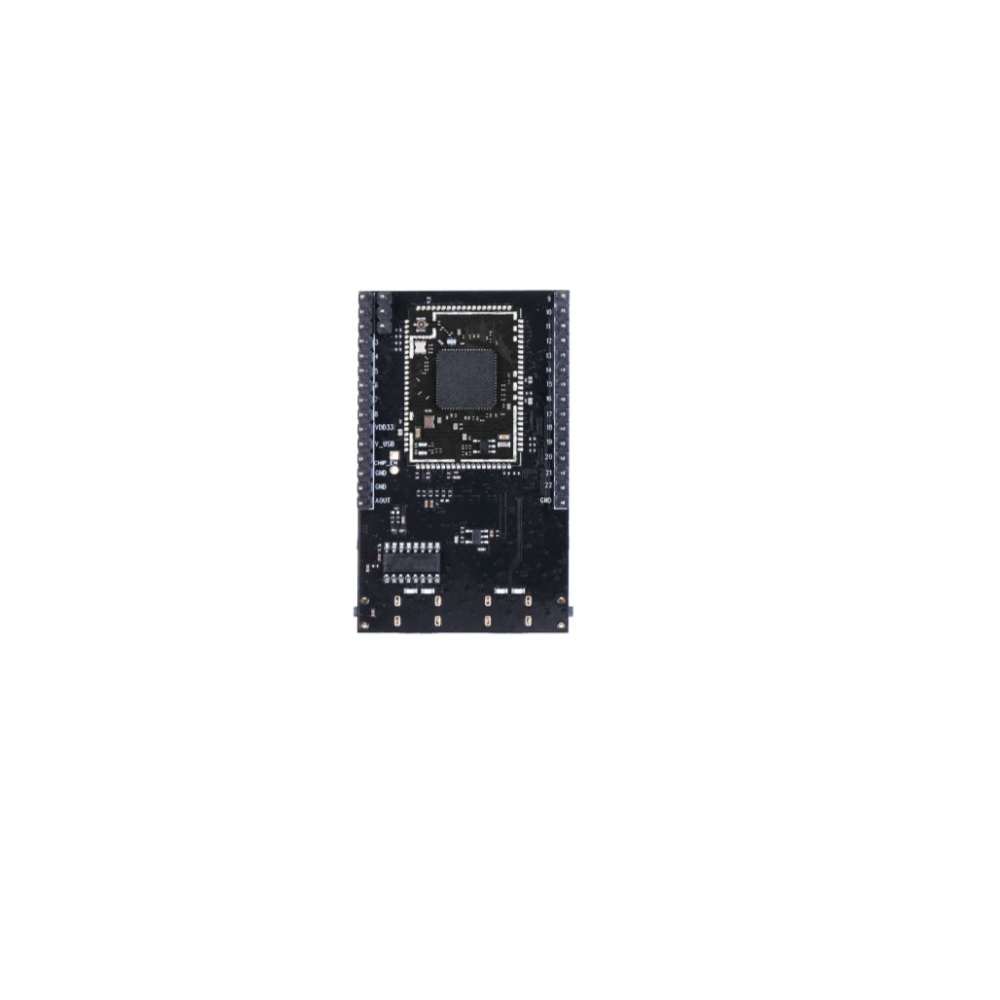

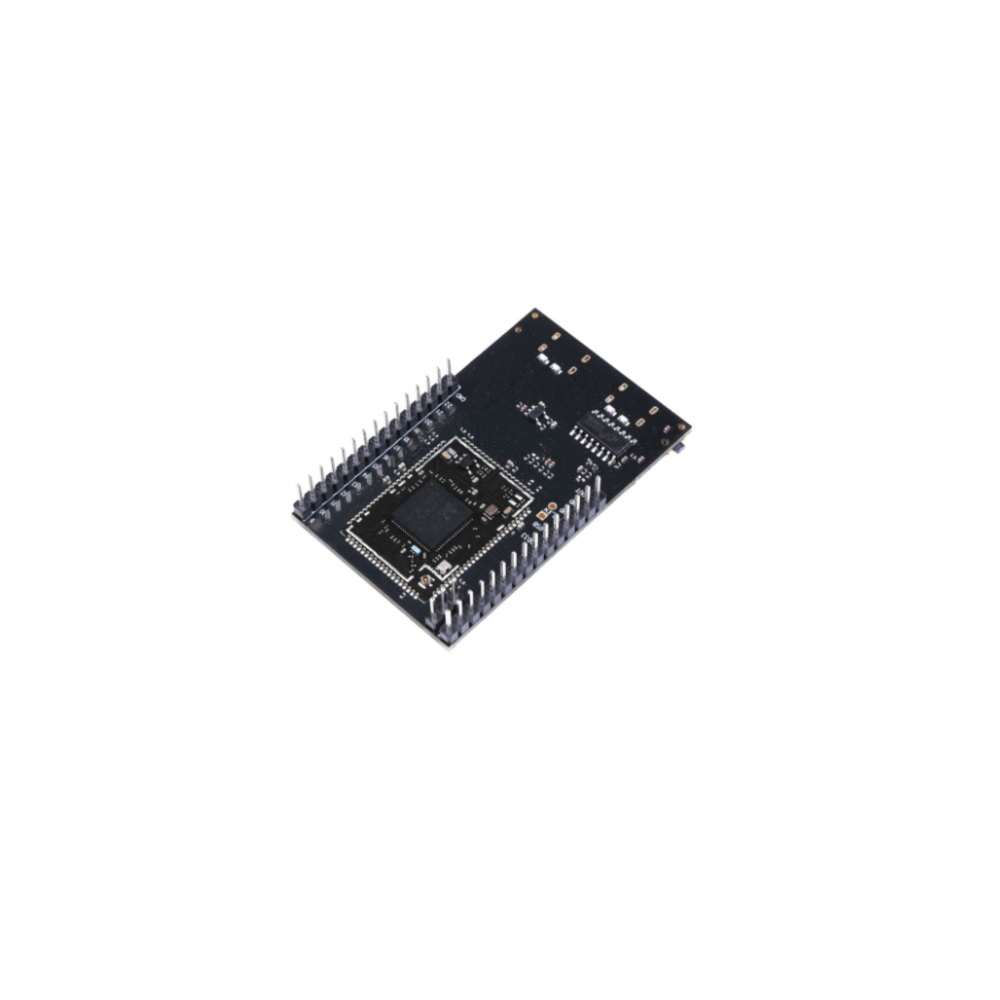

The AMB82-MINI development board is adopting Realtek RTL8735BDM SoC. RTL8735BDM is a highly integrated low-power 802.11 a/b/g/n WLAN and Bluetooth camera SoC, it combines arm® v8M MCU(500MHz and 2.23 DMIPS/MHz), dual-band Wi-Fi, Bluetooth BLE5, audio codec, ISP and H264/H265 encoder, DDR2 128MB memory, and neural network intelligent engine in a single chip.
It also provides useful high-speed connectivity interfaces, such as a USB 2.0 host, USB 2.0 device, SD host, and a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.
Feature:
- Worldwide leading Ultra-Low-Power AI Wi-Fi IP Camera SoC：8-in-1 SoC featuring embedded AI & NPU, High resolution up to 2K
- Fast boot-up in milliseconds; ultra-low power in microampere
- Supporting battery-powered, AI & IoT Ecosystems
- Multiple streams real-time H.265/H.264/JPEG encoding
- SDK supports free RTOS, IAR, GCC, Arduino IDE

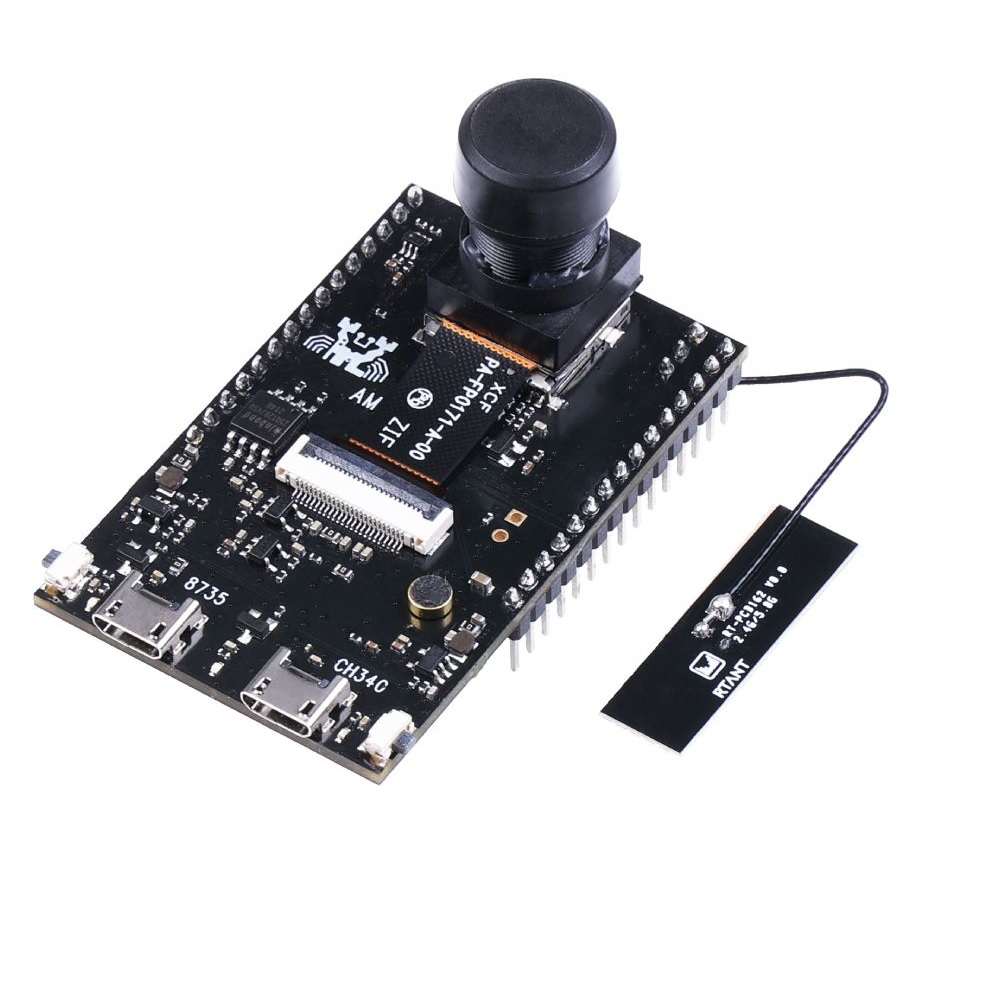

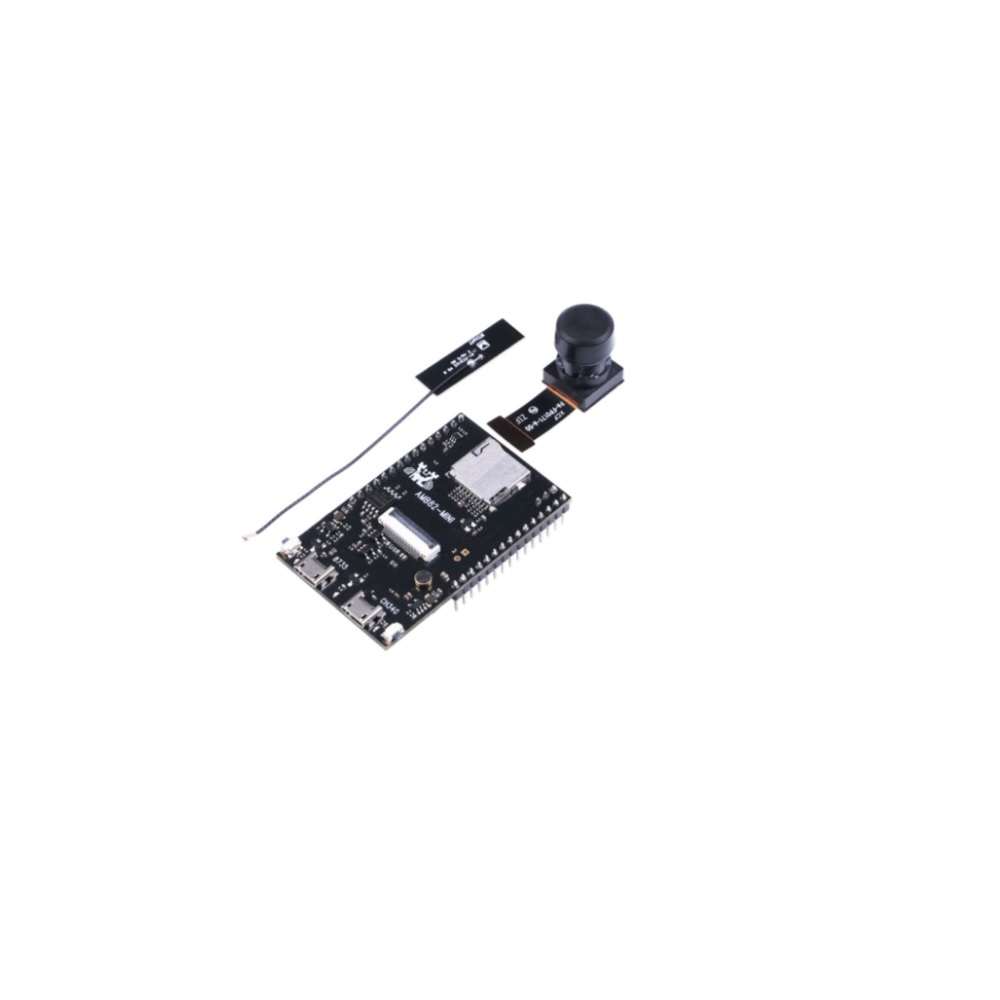

Package Includes:
1 x Realtek AMB82-MINI Dev. Board
1 x Dualband Wi-Fi (2.4GHz/5GHz) ipex antenna
1 x Taiyee camera module(F37)
