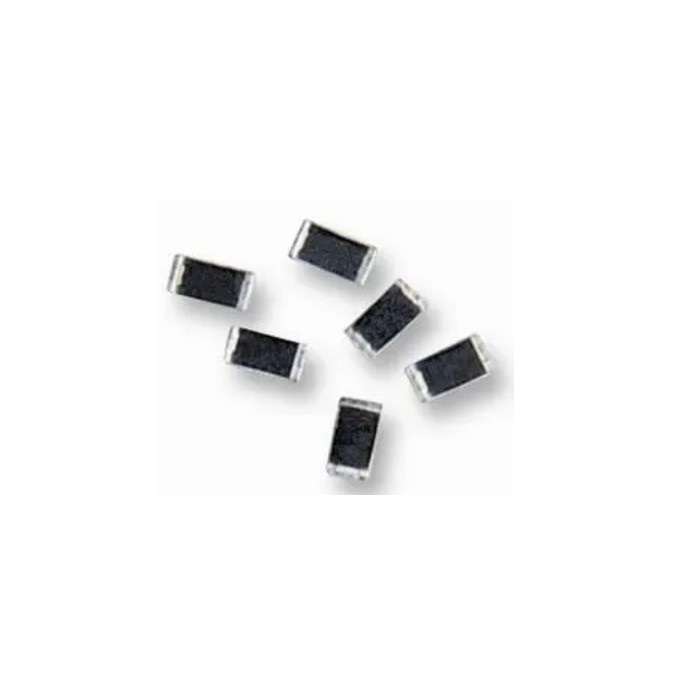

RC0603JR-073K3L,YAGEO,SMD Chip Resistor, 3.3 kohm, ± 5%, 100 mW, 0603 [1608 Metric], Thick Film, General Purpose (PACK OF 10)

the Yageo RC_L series resistors are general purpose thick film chip resistors with lead free terminations made by thick film process. The resistance range includes E24 and E96 decade values from 1ohm to 100Mohm. These resistors are constructed on top of a high grade ceramic body.

Features:

1. EIA 0075, 0100, 0201, 0402, 0603, 0805, 1206, 1210, 1218, 2010, 2512 case sizes available
2. Small chip sizes save PCB space
3. Rated voltage range of 10V to 200V
4. Maximum power rating of 2W
5. Available in ±0.1%, ±0.5%, ±1% and ±5% tolerance
6. High component and equipment reliability
7. Forbidden materials are not used in products/production
8. -55°C to 155°C temperature range for RC0402 to RC2512 and -55°C to 125°C for RC0075 to RC0201

Package Includes:

1 x RC0603JR-073K3L,YAGEO,SMD Chip Resistor, 3.3 kohm, ± 5%, 100 mW, 0603 [1608 Metric], Thick Film, General Purpose (PACK OF 10)
