| Channel |
22 (tracking) / 66 (capturing) |
|---|---|
| Input voltage |
3.3 ~ 5 |
| Working Current |
Max 100mA |
| GPS Mode |
L80-39 |
| Location Precision |
<2.5m CEP |
| Speed Precision |
<0.1 m/s |
| Capturing Sensitivity |
-148dm |
| Tracking Sensitivity |
-165dm |
| Data Format |
NMEA0183 protocol |
| Operating Temperature (°C) |
-40 to 85 |
| Aerial Size |
15 x 15 x 4 mm |
| Material: |
Plastic |
| Color: |
Red |
| Length (mm): |
39 |
| Width (mm): |
29 |
| Height (mm): |
15 |
| Weight (g): |
15 |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 2 × 2 × 1 cm |

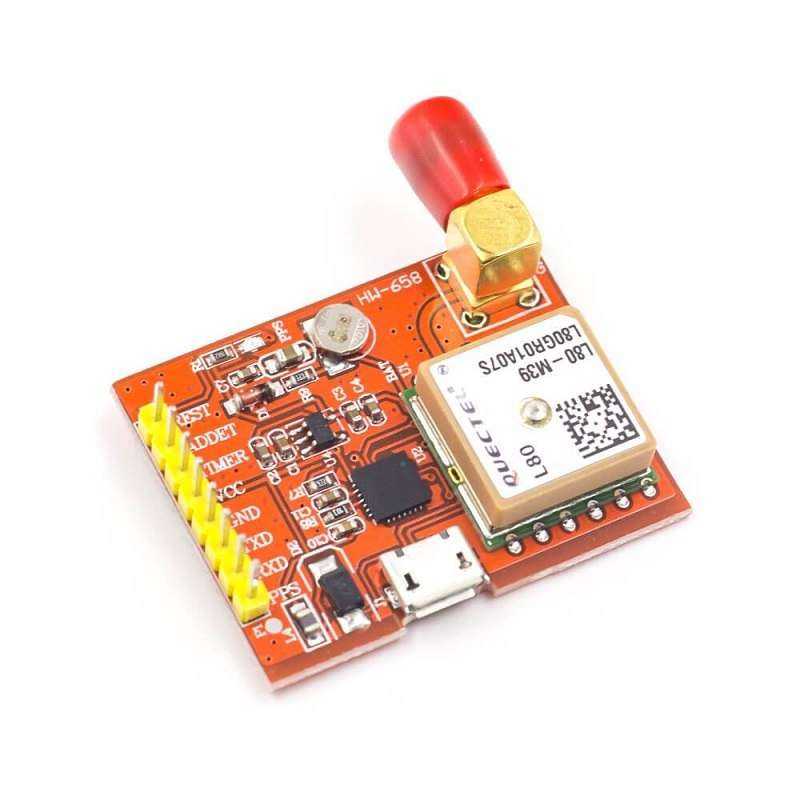

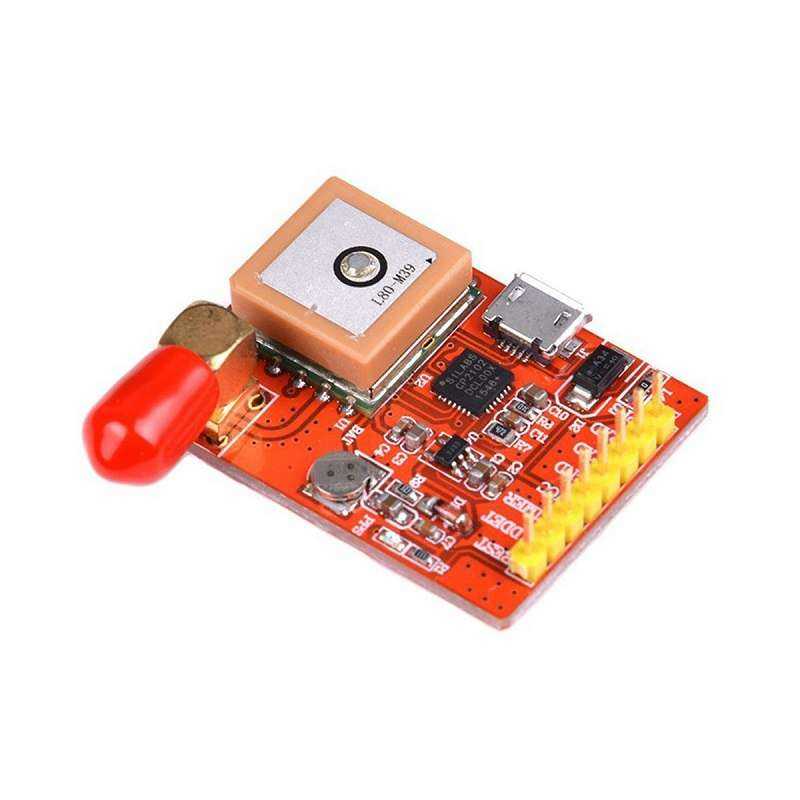

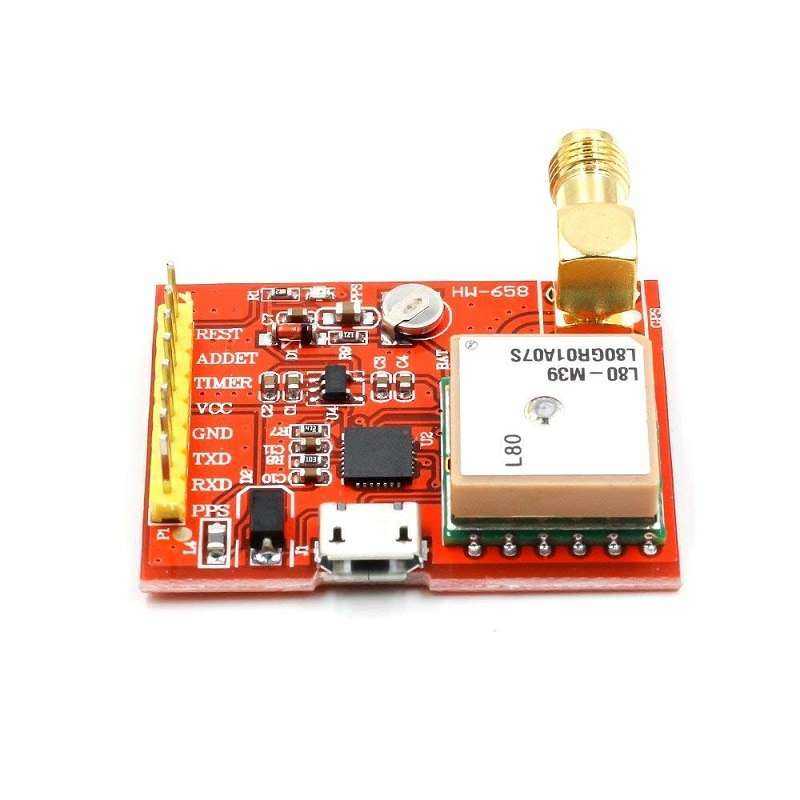

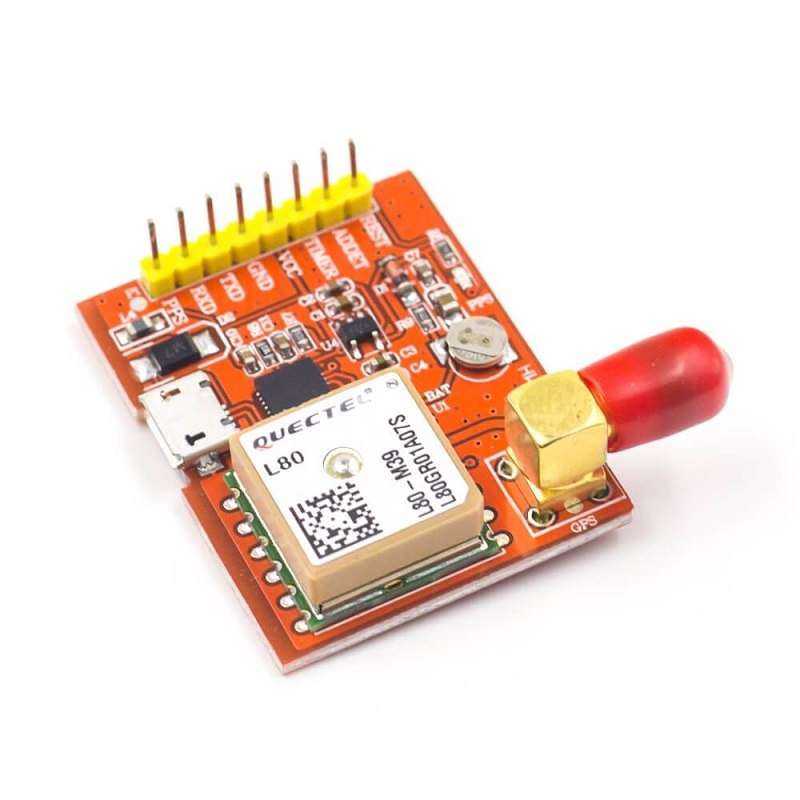

Raspberry Pi GPS Module USB Port
- Data format: NMEA0183 protocol
- Channel: 22 (tracking) / 66 (capturing)
- Voltage: 3.3-5V
- Working current: Max 100mA
- GPS mode: L80-39
₨ 100.10
Out of stock
Out of stock
13
People watching this product now!
Support the Raspberry Pi models A, B, A +, B +, Zero, 2. USB Port – GPS module contains T CP202USB serial interface chip, through a serial Port or USB and Raspberry Pi to communicate.
L80 is integrated with the Patch antenna (5.0 * 5.0 * 5.0 mm) of compact modules, with ultra-low power consumption, the advantages of the fast positioning, in capturing and tracking, makes the USB Port – GPS has a very good performance.
Features:
- Suitable For Raspberry Pi A B A+ B+ Zero 2 3.
- Connect via 1*8 2.54 separation distance pin header or USB micro data cable.
- Adopting L80-39 mold project, with 15 x 15 x 4mm Patch aerial.
- Super low power consumption, quick location.
- Support Short-circuit Protection and Aerial Detection.
- Support self-auxiliary AGPS (EASY technology), no need for external memory.
- Support LOCUS, DGPS, SBAS(WAAS/EGNOS/MSAS/GAGAN).
Package Includes:
1 x Raspberry Pi GPS Module USB Port
