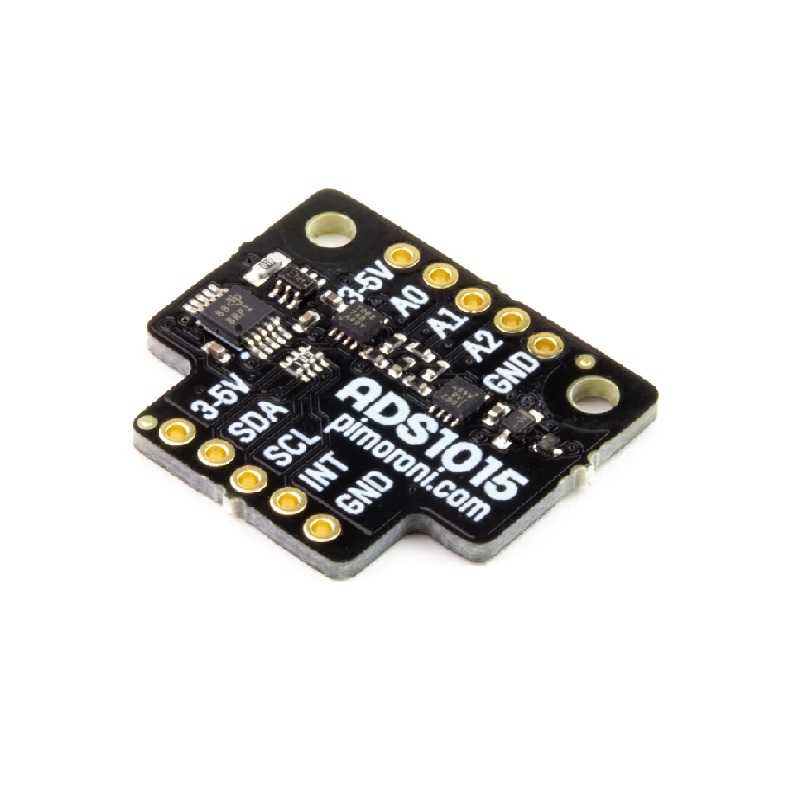

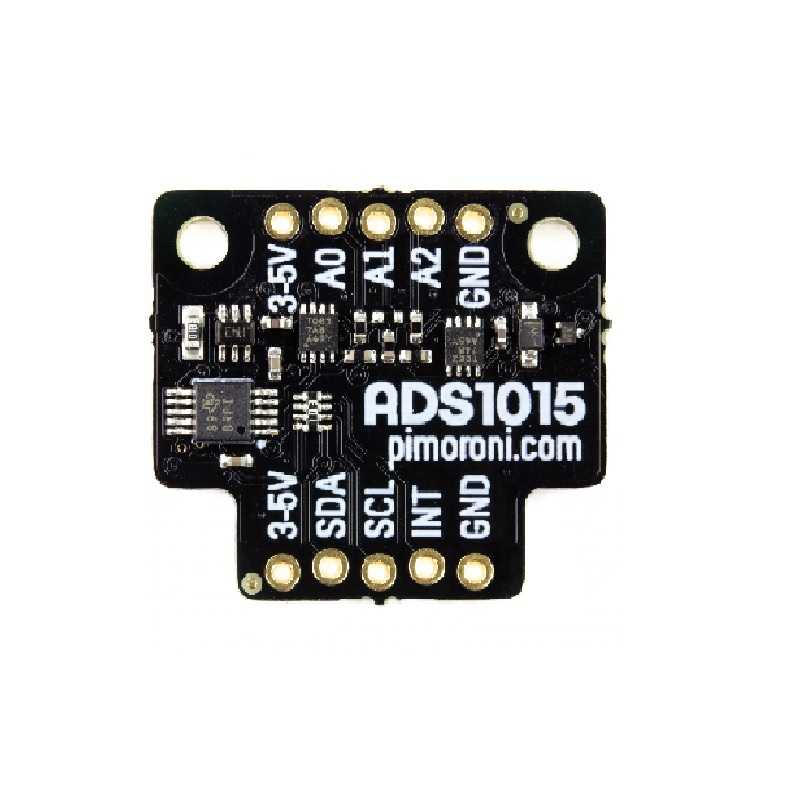

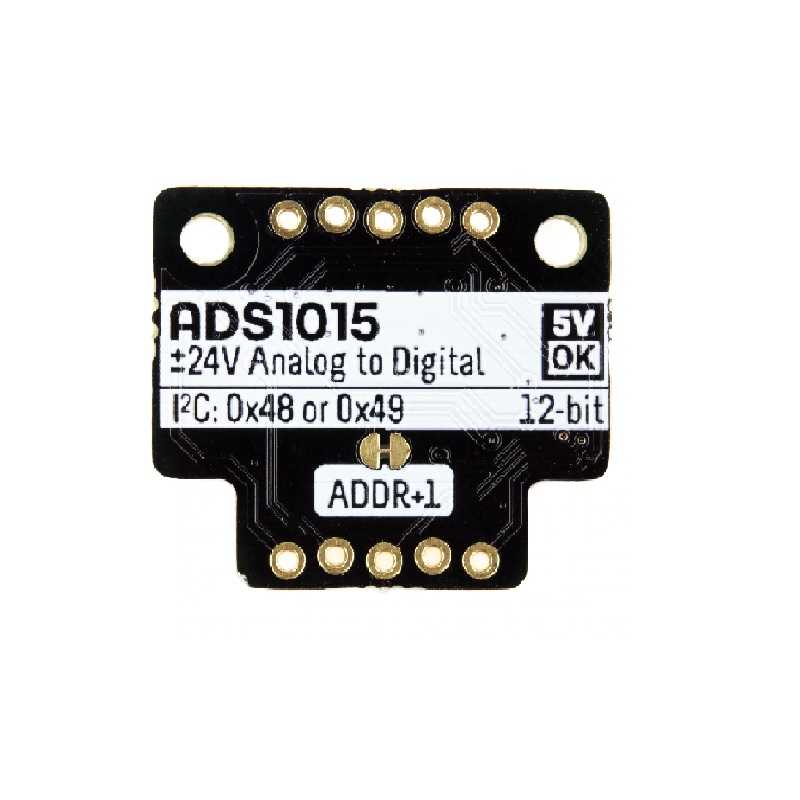

Pimoroni Ads1015 +/-24V Adc Breakout

The ADS1013, ADS1014, and ADS1015 devices (ADS101x) are precision, low-power, 12-bit, I2Ccompatible, analog-to-digital converters (ADCs) offered in an ultra-small, leadless, X2QFN-10
package, and a VSSOP-10 package. The ADS101x devices incorporate a low-drift voltage reference and an oscillator. The ADS1014 and ADS1015 also incorporate a programmable gain amplifier (PGA) and a digital comparator. These features, along with a wide operating supply range, make the ADS101x well suited for power- and space-constrained, sensor measurement applications.
The ADS101x perform conversions at data rates up to 3300 samples per second (SPS). The PGA offers input ranges from ±256 mV to ±6.144 V, allowing precise large- and small-signal measurements. The ADS1015 features an input multiplexer (MUX) that allows two differential or four single-ended input measurements. Use the digital comparator in the
ADS1014 and ADS1015 for under- and overvoltage detection. The ADS101x operate in either continuous conversion mode or single-shot mode. The devices are automatically powered down after one conversion in single-shot mode; therefore, power consumption is significantly reduced during idle periods.

Applications:

1. Portable Instrumentation
2. Battery Voltage and Current Monitoring
3. Temperature Measurement Systems
4. Consumer Electronics
5. Factory Automation and Process Control

Features:

1. Small in size
2. Color: Black
3. 12-Bit Noise-Free Resolution
4. Low Current Consumption: 150 μA (Continuous-Conversion Mode)
5. Single-Cycle Settling
6. Internal Low-Drift Voltage Reference
7. Internal Oscillator
8. Four Single-Ended or Two Differential Inputs (ADS1015)
9. Programmable Comparator (ADS1014 andADS1015)

packages Includes:

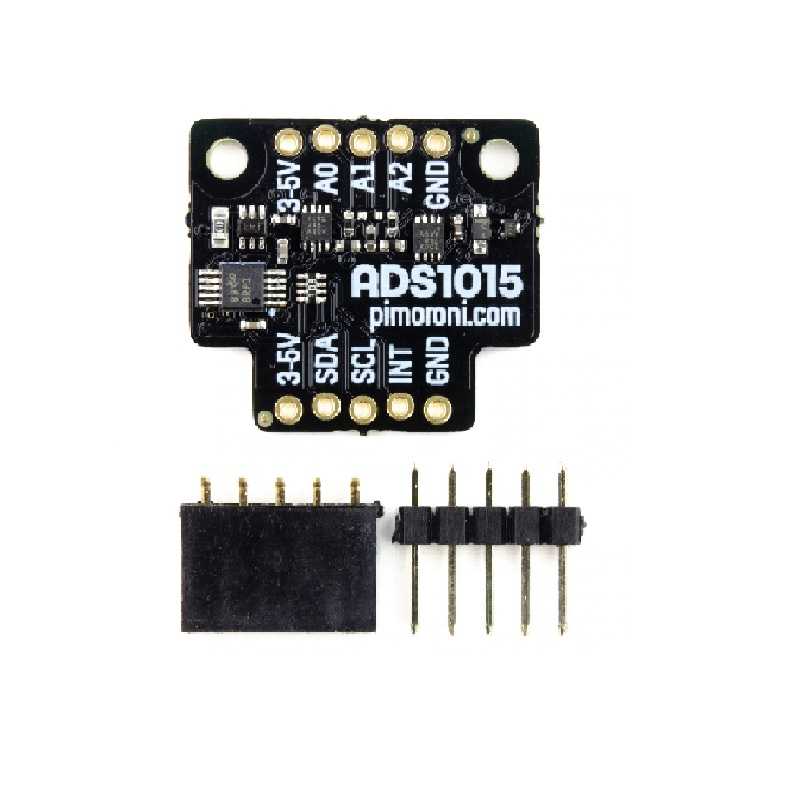

1 x PIMORONI ADS1015 +/-24V ADC breakout
