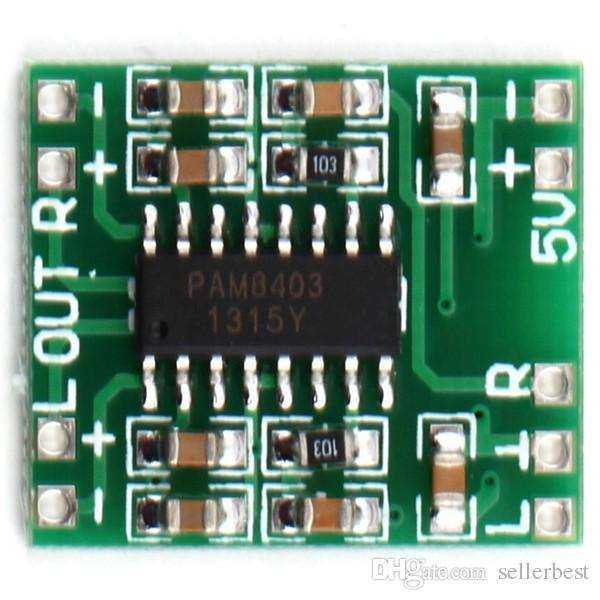

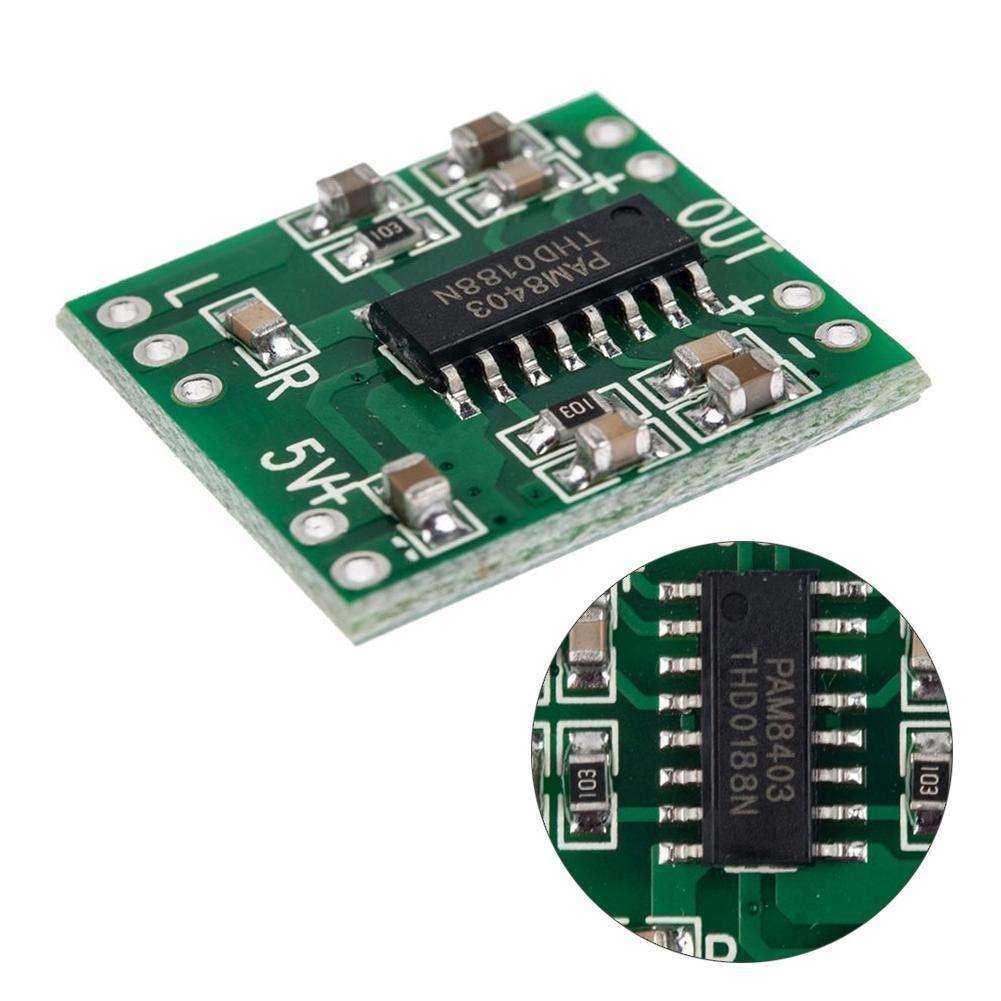

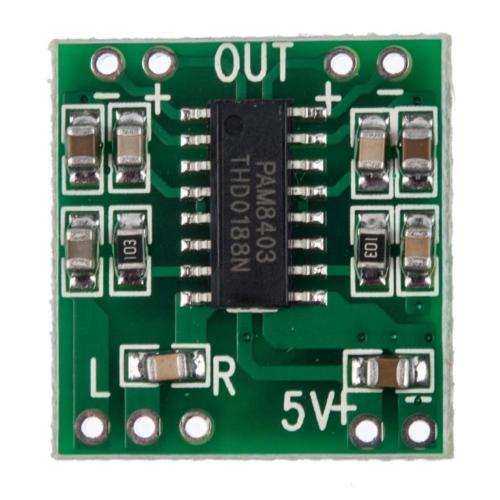

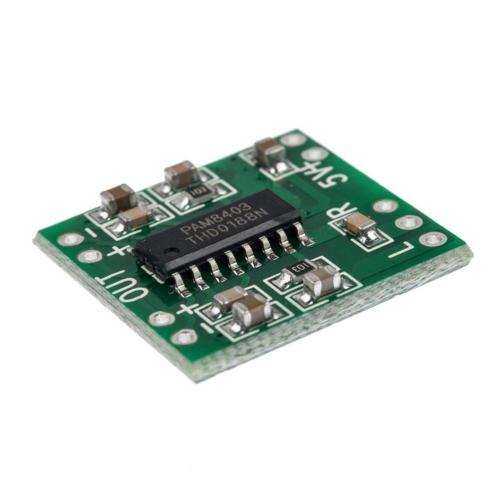

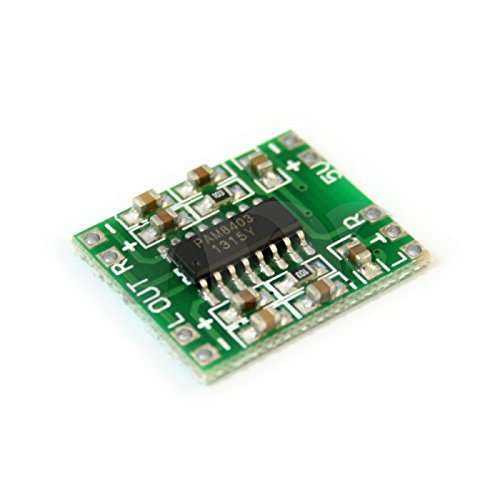

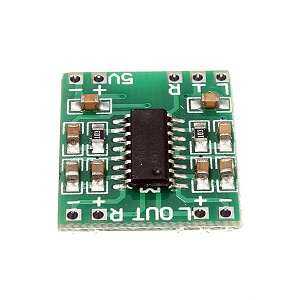

PAM8403 5V Two-channel Stereo Mini Class-D 3W+3W Audio Amplifier

Add to Wishlist

₨ 36.00

Out of stock

Out of stock

Compare
Add to wishlist
19 People watching this product now!

PAM 8403 datasheet

DOWNLOAD

Operating Voltage (VDC):

2.5 ~ 5.5
Max Gain

24 dB.
Current Handling Capacity (A)

0.08
Efficiency

87 %.
Amplifier IC

PAM 8403.
Load

Can direct drive 4 or 8 ohm small speakers.
Dimensions (LxWxH) mm

21 x 18 x 3
Weight (g):

5
S/N Ratio (dB)

80
Power supply Rejection ratio

-58 dB.
Shipping Weight 0.01 kg
Shipping Dimensions 3 × 2 × 1 cm

The PAM8403 5V Two-channel Stereo is a 3W+3W, class-D audio amplifier. Allowing it to achieve high-quality sound reproduction. The new filterless architecture allows the device to drive the speaker directly, requiring no low-pass output filters, thus saving system cost and PCB area. With the same numbers of external components, the efficiency of the PAM8403 is much better than that of Class-AB cousins. It can extend the battery life, which makes it well-suited for portable applications.

Features :

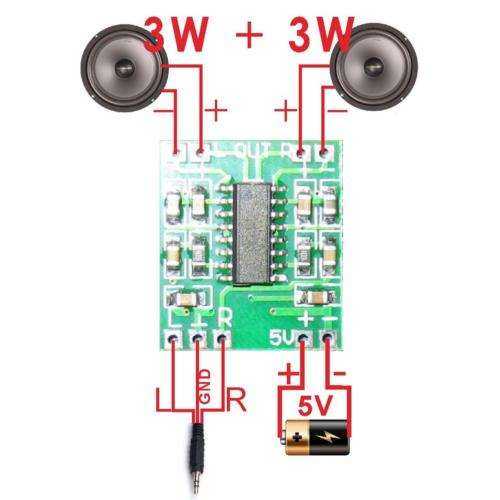

  1. Dual channel stereo, high output power (3 w + 3 w power @ 5V and 4 ohms load).
  2. Good sound quality.
  3. Double panel wiring solves crosstalk.
  4. Super mini design allows it to be easily placed in a variety of digital products.
  5. 3W Output at 10% THD with a 4ΩLoad and 5V Power Supply.
  6. Filterless, Low Quiescent Current and Low EMI.
  7. Superior Low Noise.
  8. Short Circuit Protection.
  9. Thermal Shutdown

Application :

  • Bluetooth Stereo Audio hands-free/headsets
  • In robots that speak or generate sounds to indicate activities
  • Portable Speakers
  • LCD Monitors / TV Projectors
  • Arduino or Raspberry Pi Game Machines
  • Speaker Phones

    • Package Includes :

    1 x PAM8403 5V Two-channel Stereo Mini Class-D Audio Amplifier.
