Orange TT555 12V 4RPM Motor Test Report

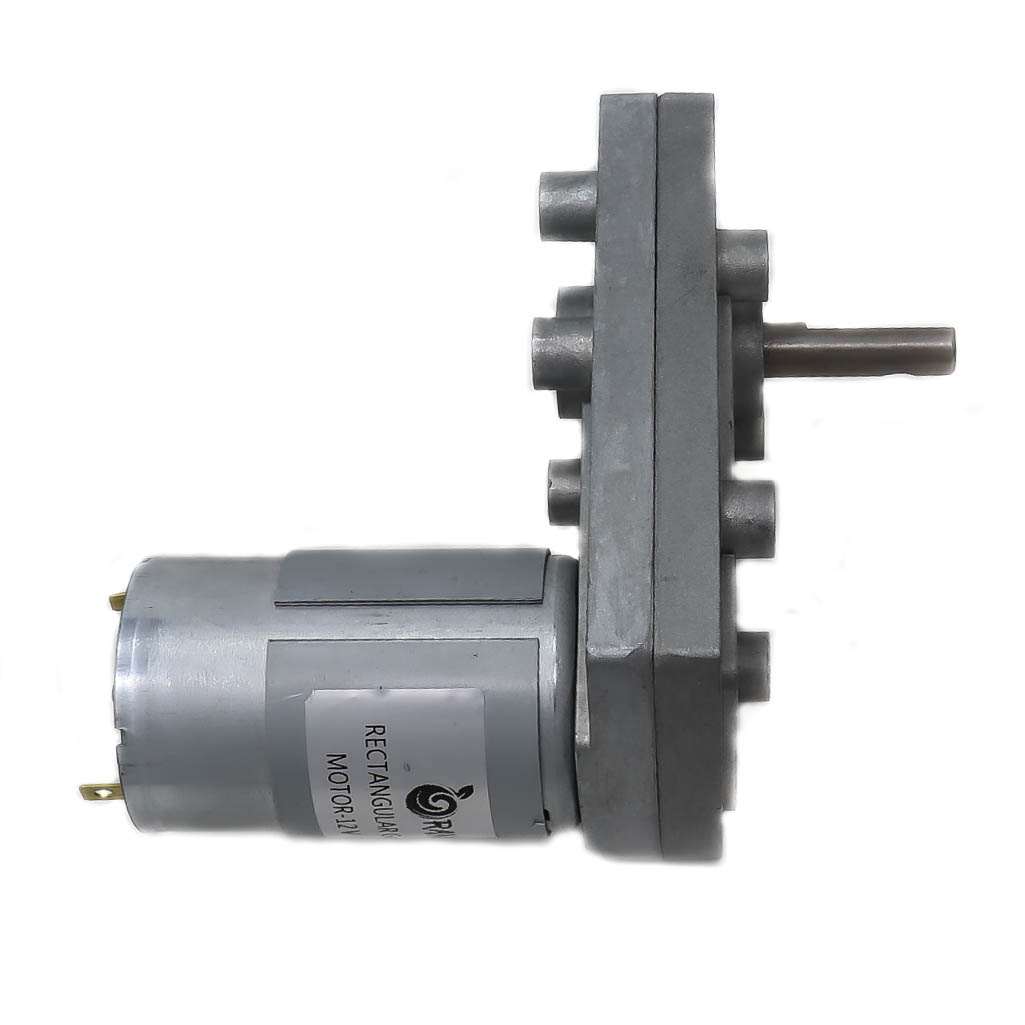

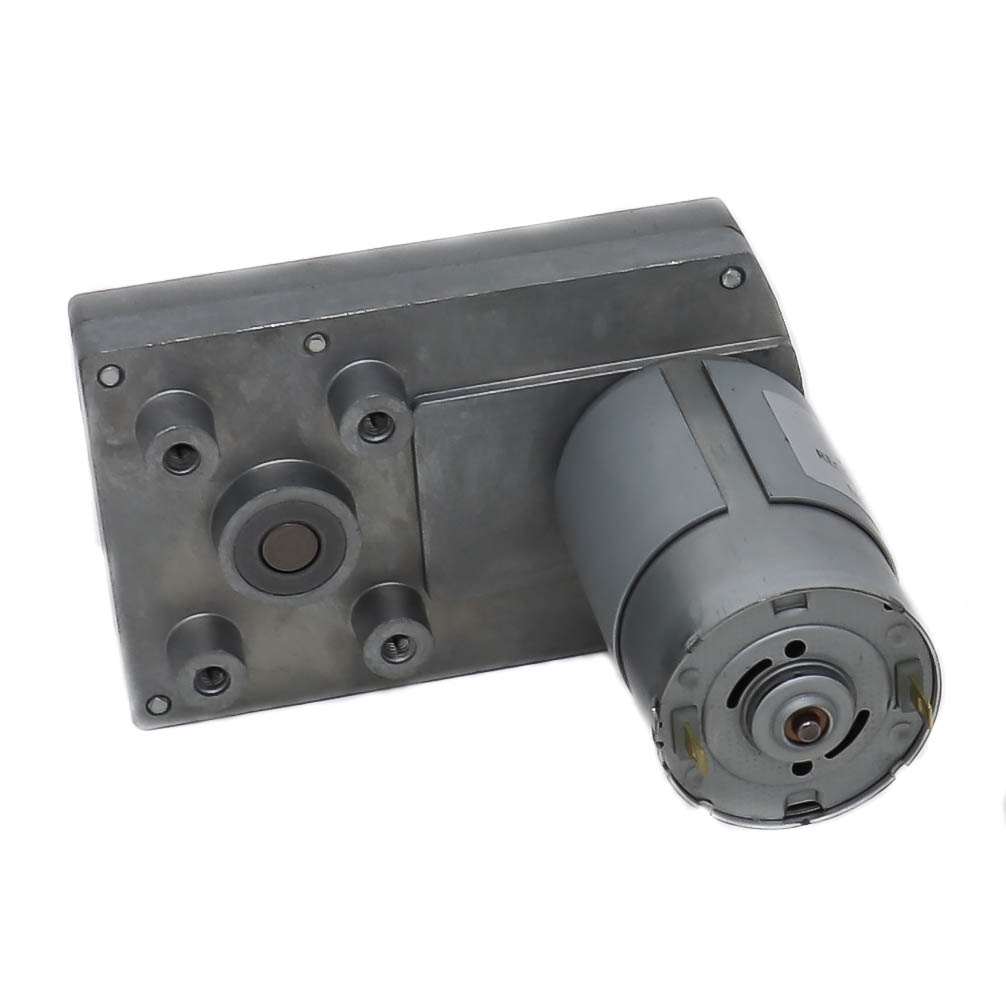

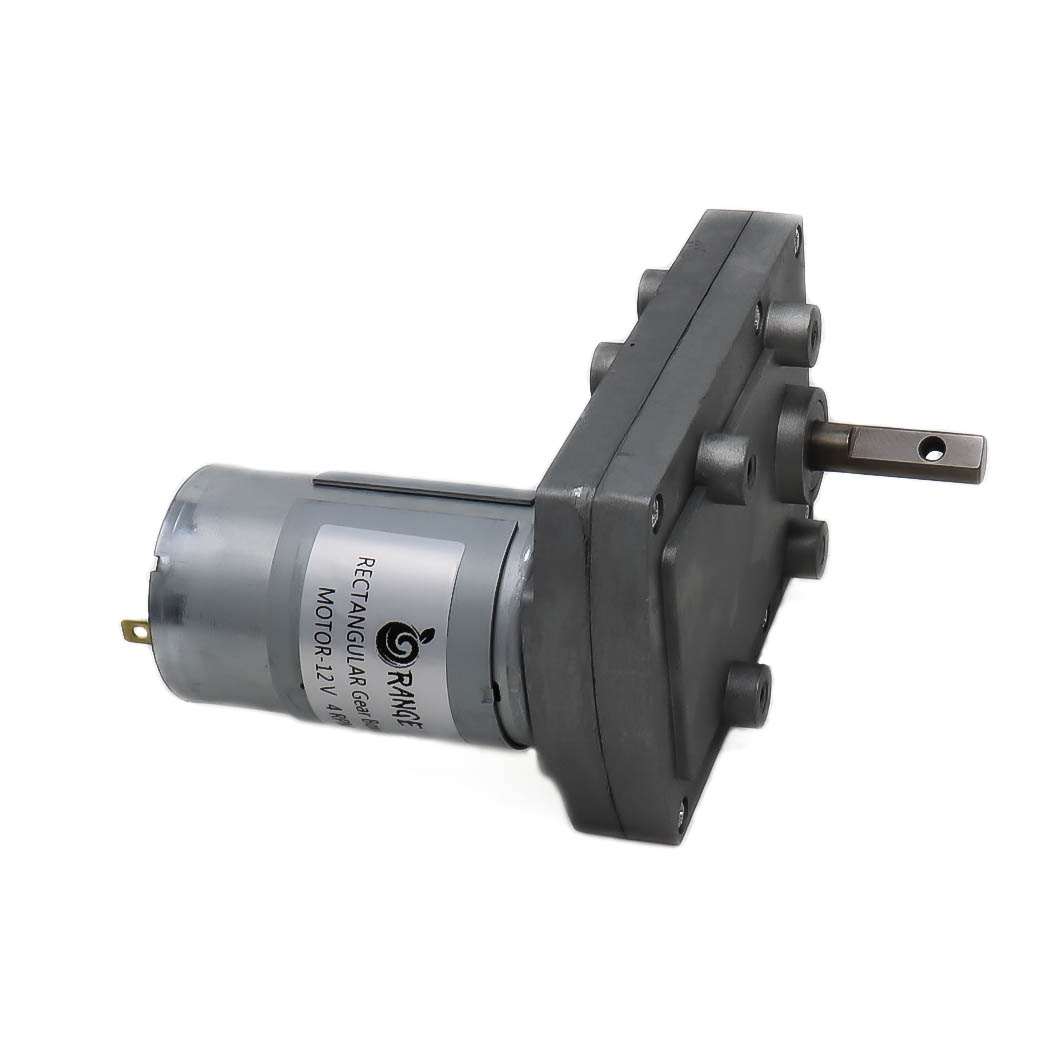

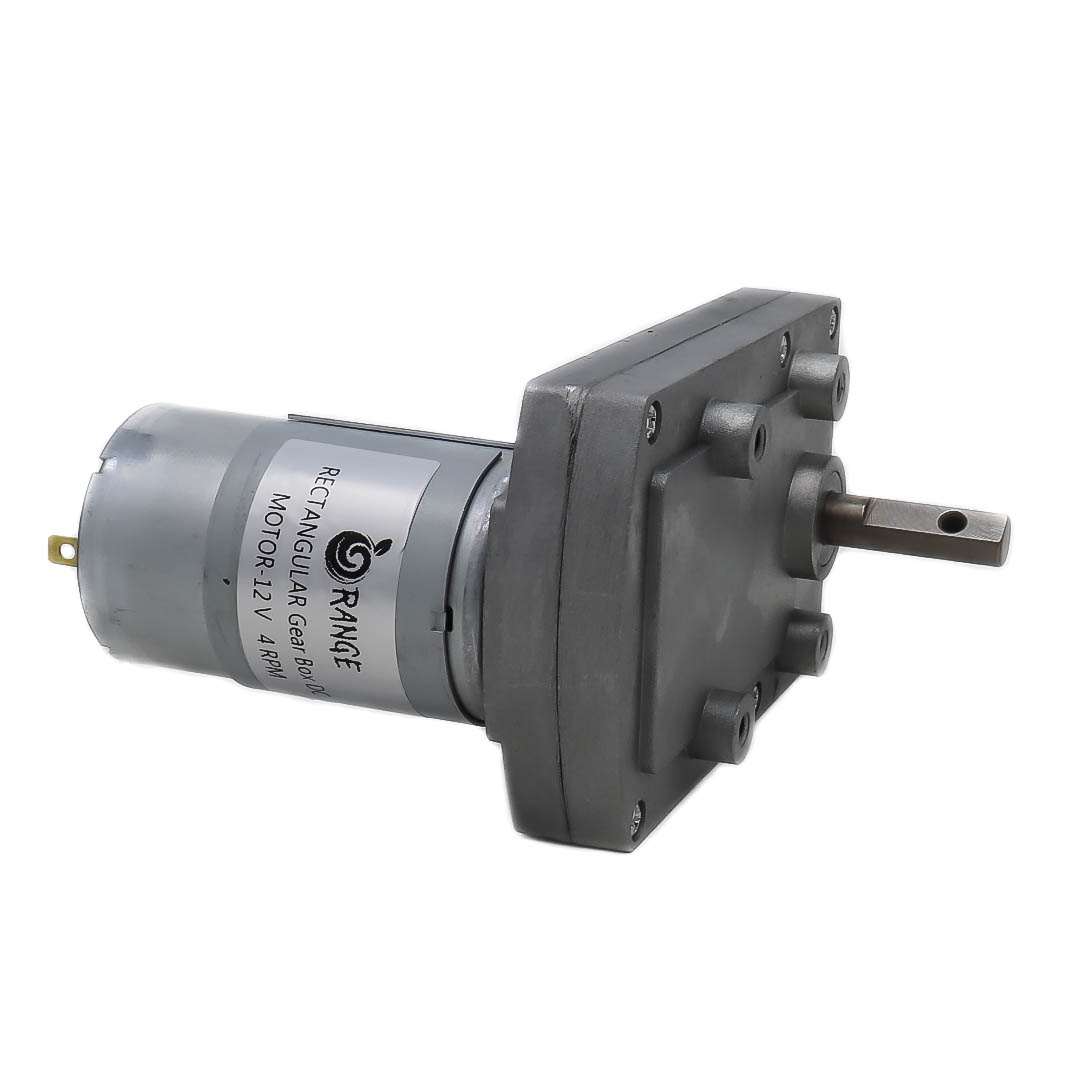

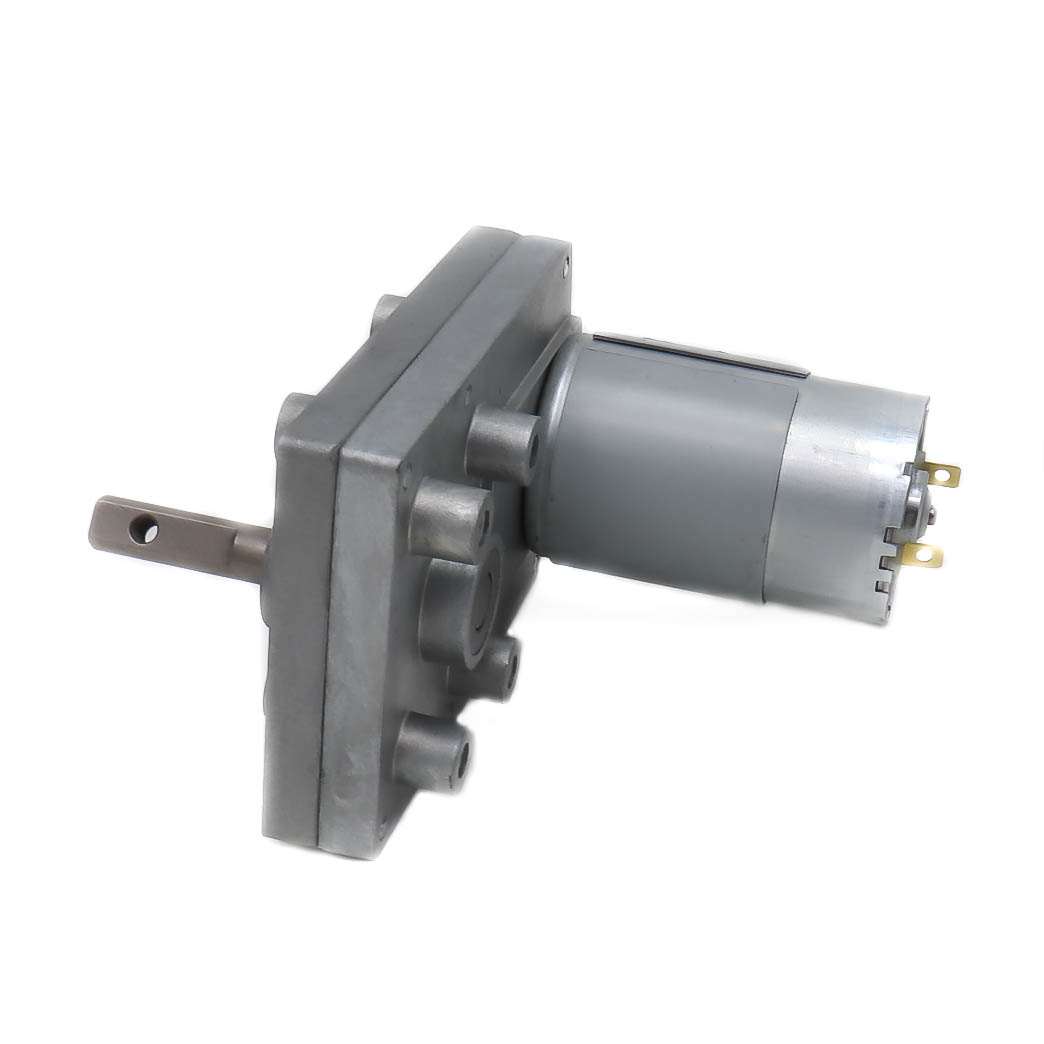

Orange TT555 12V 4RPM Rectangular gearbox DC motor for DIY Project Encoder Compatible
Add to Wishlist
₨ 100.10
Out of stock
Out of stock
10
People watching this product now!
| Operating Voltage (VDC): |
12 |
|---|---|
| No Load Current (mA) |
250 |
| No load Speed (RPM) |
4 |
| Full Load Current (mA) |
≤700 |
| Rated Current (mA) |
≤700 |
| Rated Torque (N-m) |
846.2 |
| Rated Power (W) |
3.721 |
| Rated Speed (RPM) |
4 |
| Shaft Length (mm) |
27 |
| Shaft Diameter (mm) |
8 |
| Base Motor Rated RPM |
4500 |
| Gear Ratio |
1166 : 1 |
| Length (mm): |
116 |
| Width (mm): |
95 |
| Height (mm): |
60 |
| Weight (g): |
530 |
| Shipping Weight | 0.55 kg |
| Shipping Dimensions | 10 × 6 × 6 cm |
This Orange TT555 12V 4RPM Rectangular gearbox DC motor is high torque motor i.e. 846.2 N-cm with a gear ratio of 1166K. The main feature of this motor is it has a 27mm long shaft with M4 tapping and a diameter of 8mm.
Normally the motor available in the market is having a shaft length of 20 ~ 22 mm long; but we have customized the shaft of this motor to meet customers’ requirements. So it’s too easy to mount a wheel or any type of coupling on the shaft.
The applications of this motor are Central air conditioning valve, Amusement equipment, Coin refund devices, Grill, Oven; Peristaltic pump, ATM bank automatic system, Medical equipment, Office equipment, Household appliance, Automatic actuator and many more.
Features:
- Lightweight and compact-sized motor with high performance.
- 27mm long customized shaft for ease of mounting.
- The Shaft is D type hence wheel/ coupling arrangement is simple.
- The motor is useful for hobbyists and for DIY projects.
Package Includes:
1 x Orange TT555 12V 4RPM Rectangular gearbox DC motor for DIY Project Encoder Compatible.
