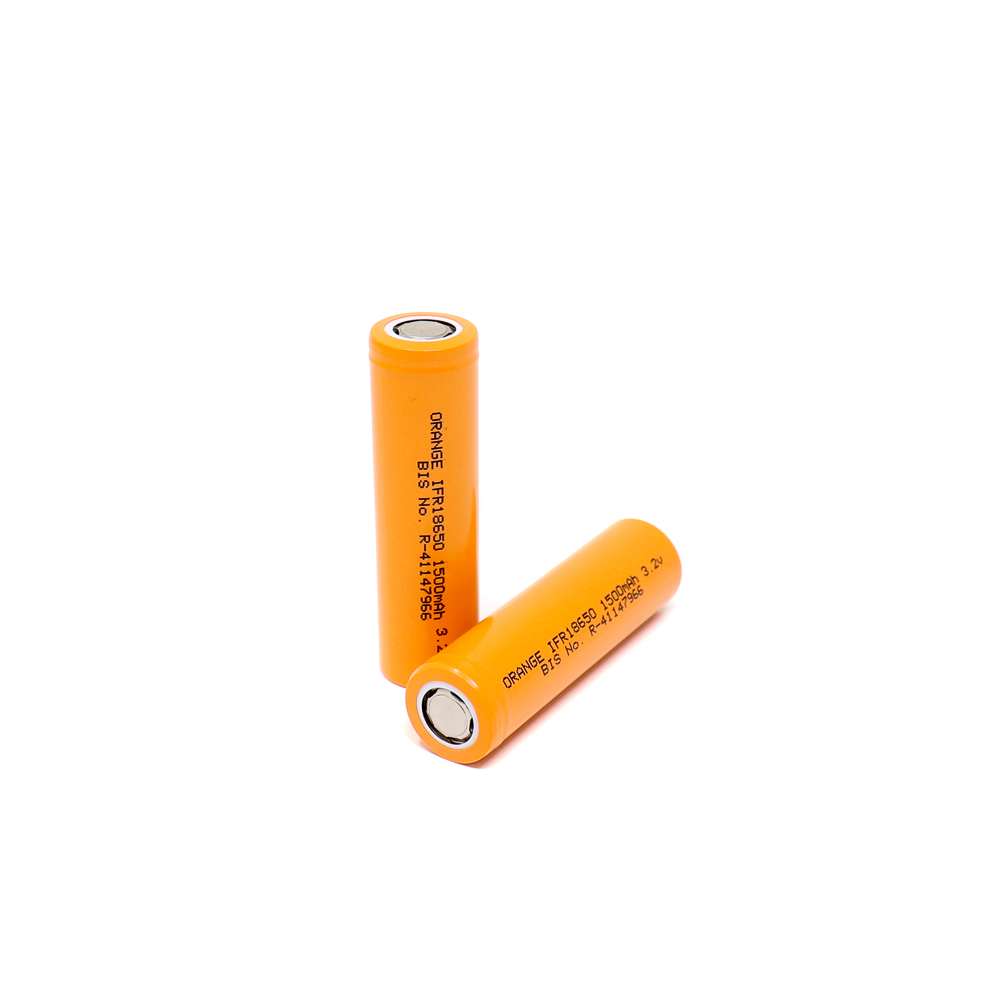

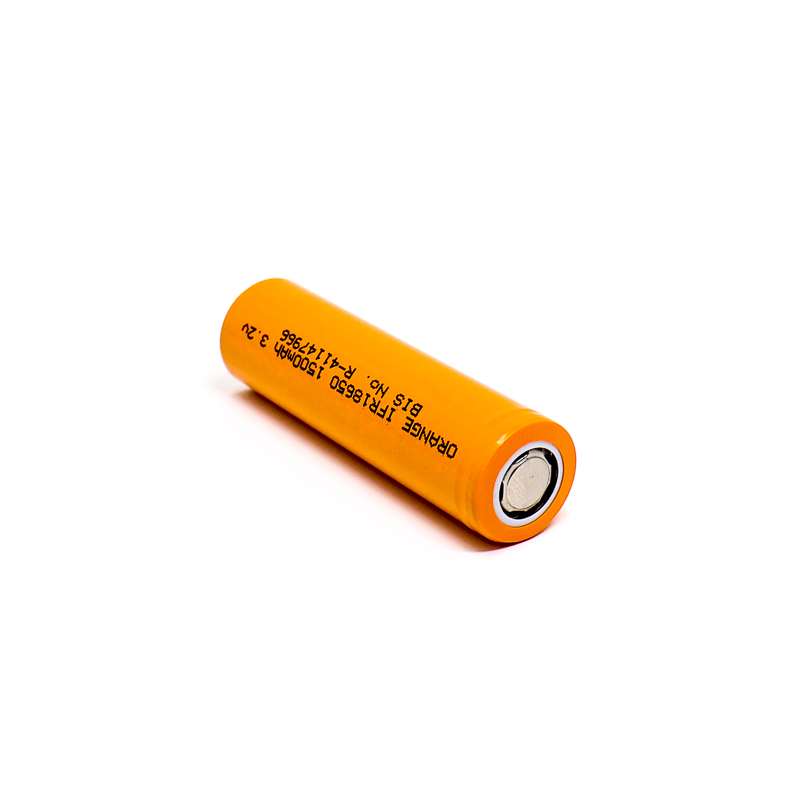

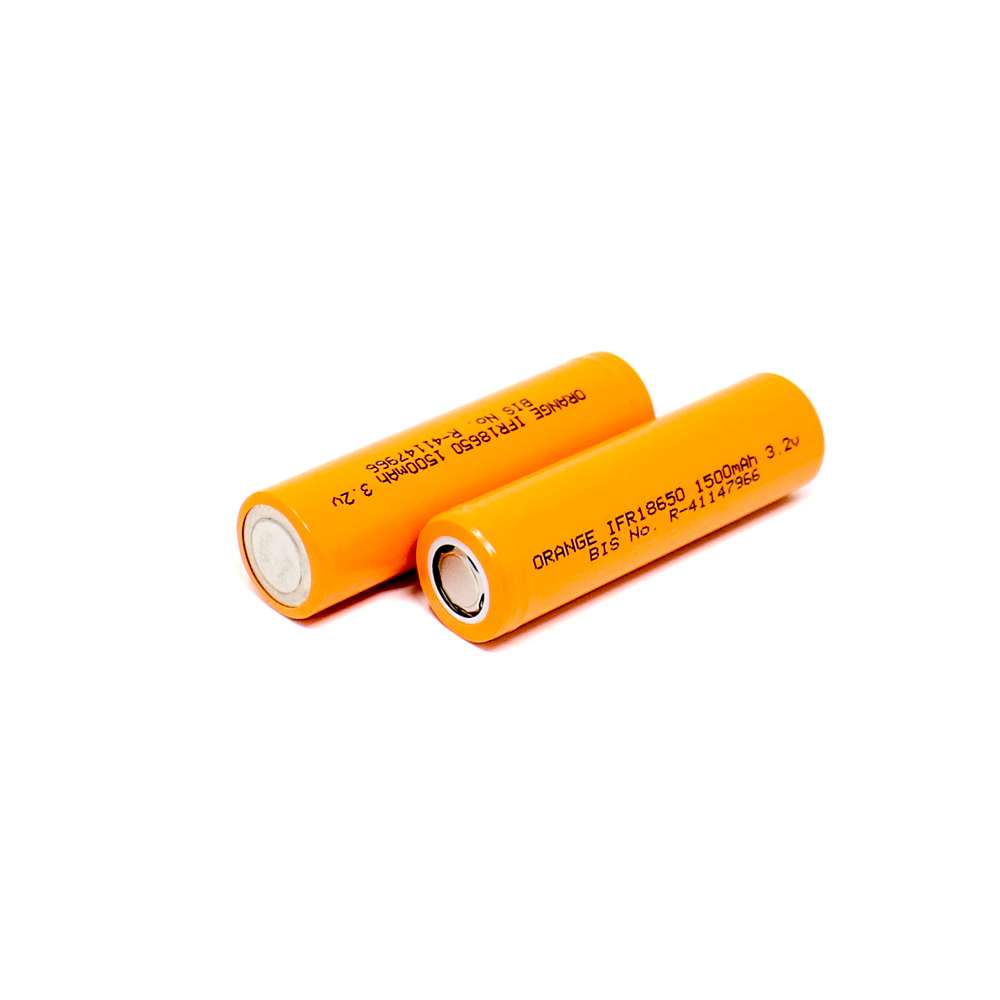

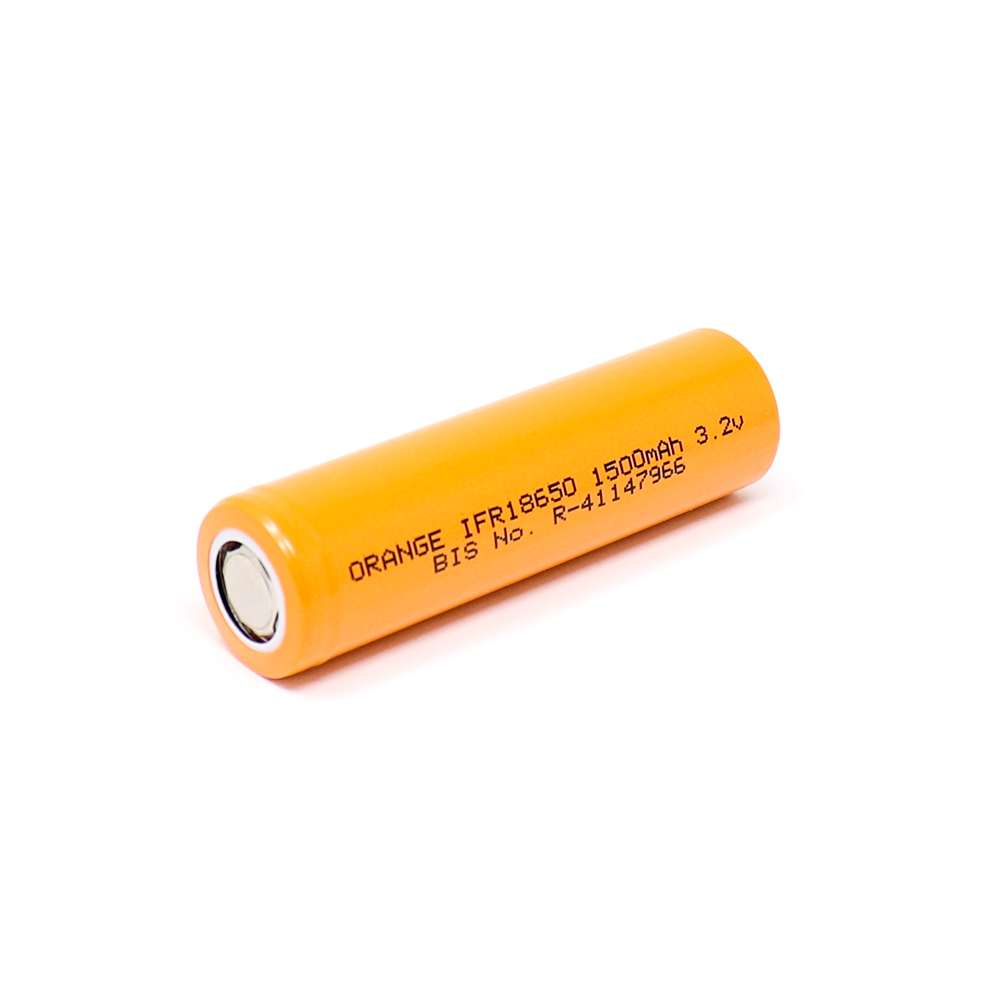

Orange A Grade IFR18650 3.2V 1500mAh 3C LiFePO4 Battery

  1. Shape: Cylindrical Battery
  2. Battery Type: LiFePO4 Battery
  3. High performance and capacity
  4. Flat top to suit many devices fitting
  5. Suitable for portable devices

₨ 378.00

Out of stock

Out of stock

Compare
Add to wishlist
12 People watching this product now!

DATASHEET

DOWNLOAD

Model No.

IFR 18650
Capacity (mAh)

1500
Output Voltage (VDC)

3.2
Discharge Voltage

2V
Charging Voltage

3.65V
Standard Charge

Constant Current: 0.2 C 5A
Constant Voltage: 3.6 5V
Cut-off: 0.02 C 5A
Standard Discharge

Constant Current: 0.2 C 5A
End Voltage: 2.0V
Fast Charge

Constant Current: 1C 5A
Constant Voltage: 3.65V
Cut off: 0.01 C 5A
Fast Discharge

Constant Current: 1C 5A
End Voltage: 2.0V
Max. Continuous Charge Current

1C 5A
Max. Continuous Discharge Current

3C 5A
Operation Temp. Range

Charge: 0 ~ 45ºC
Discharge: -10 ~ 60ºC
Width (mm):

18
Height (mm):

65
Weight (g):

40
Shipping Weight 0.045 kg
Shipping Dimensions 7 × 2 × 1 cm

Orange A Grade IFR18650 3.2V 1500mAh 3C LiFePO4 Battery is one of the best rechargeable batteries from Orange with a huge battery capacity of 1500mAh & 3.2-volt output.

The LiFePO4 Battery IFR 18650 3.2V 1500mAh batteries are best suitable for portable devices such as flashlights, hobby transmitters, and receivers, etc, and as compared to other Non-rechargeable batteries these LiFePO4 Battery IFR 18650 3.2V 1500mAh batteries are a perfect choice one can make at a reasonable cost.

The terminals of this LiFePO4 Battery IFR 18650 3.2V 1500mAh  can be attached to any battery adapter or a holder.

Important:

  1. Never completely discharge the LiFePO4 Battery ( below 2.5V under load ).
  2. Charge fully to 3.6V before first use.
  3. Never attach any metal moving part |magnet| to the top-positive or the bottom-negative battery contact.
  4. Never use force to install (insert) LiFePO4 battery.
  5. Do not use old and new battery cells together.
  6. Use only a high-quality battery charger.
  7. Do not expose to heat.
  8. Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts).
  9. Keep battery that is not in use in the plastic holder (or any insulating [plastic] container).
  10. Do not charge the battery over 4.22V (another reason to use a high-quality battery charger).
  11. Don’t charge unattended.
  12. Do not store your LiFePO4 batteries fully charged (for an extended period of time).
  13. Store in a cold and dry place at approximately 3.7V (storage charge).
  14. After the battery is discharged-don’t leave it discharged=>charge it as soon as possible
  15. The user should have enough knowledge on LiFePO4 rechargeable batteries: in discharging, charging, assembly, handling, and proper LiFePO4 battery storage before use.

Features:

  1. Shape: Cylindrical Battery
  2. Battery Type: LiFePO4 Battery
  3. High performance and capacity
  4. Flat top to suit many devices fitting
  5. Suitable for portable devices

Package Includes:

1 x Orange A Grade IFR18650 1500mAh (3c) LiFePO4 Battery
