Olimex PIC32-PINGUINO-OTG ARDUINO like PIC32MX440F256H USB-OTG

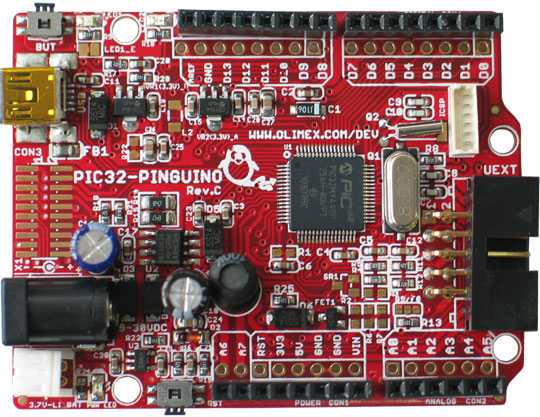

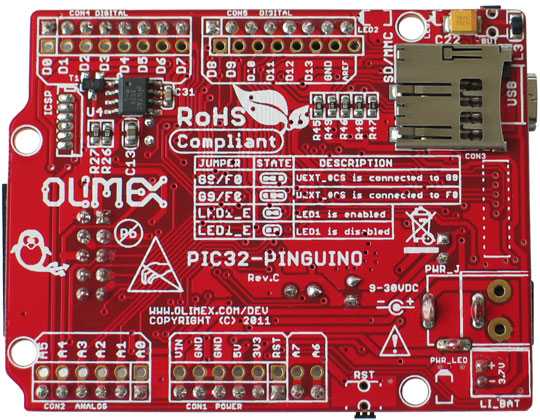

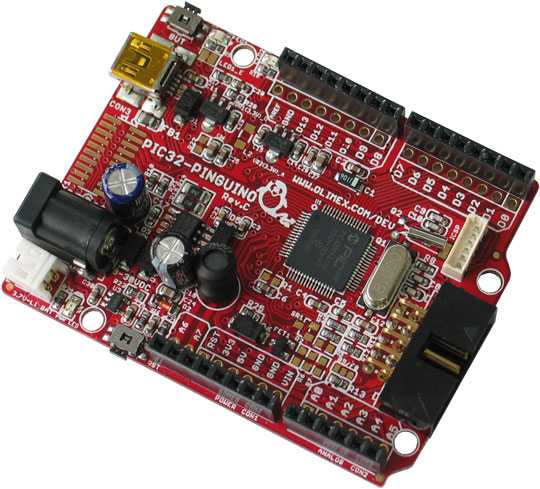

This is Olimex PIC32-PINGUINO-OTG ARDUINO like PIC32MX440F256H USB-OTG an ARDUINO-like board with PIC32MX440F256H with USB-OTG.
WARNING!!!
Do not use the “programmer-to-go” button when there is no image on the OLIMEX PIC-KIT3 or MICROCHIP PIC-KIT3 because that might put your microcontroller in an irrecoverable state. We have tested the mentioned scenario and we can confirm it destroys PIC32 chips (using both our and the original Microchip PICKIT3). We don’t take responsibility if you break your chip that way. For more info check the following:

www.microchip.com/forums/m635420.aspx.

Features :

1. PIC32MX440F256H 80 Mhz microcontroller 256KB Flash 32KB RAM
2. DC power supply allows power supply voltage from 9 to 30V DC thus making it possible to take virtually any power supply adapter on the market, and enable applications which are in the industrial power supply 24VDC.
3. Carefully selected, all of the components work reliably in the INDUSTIRAL temperature range -25+85C so the board can be used in INDUSTIRAL applications.
4. ULTRA LOW POWER voltage regulators and the consumption is only few microamps, which enables hand-held and battery powered applications.
5. Li-Ion rechargeable battery power supply option with a BUILD-IN on board charger, so that when you attach a battery, it is automatically charged and kept in this state until the other power source (USB or external adapter) is removed and then it will AUTOMATICALLY power the board – no jumpers, no switches!
6. microSD card for data logging
7. UEXT connector which allows many existing modules like RF, ZIGBEE, GSM, GPS to be connected
8. Allows RTC – Real Time Clock.
9. NOISE IMMUNE design.
10. Optionally if someone needs higher precision and temperature stability in analog reading we have provided an Aref precise source.
11. The LEDs and the BUTTONs are on the edge of the board so they can be easily accessed even if the boards have shields on them
12. All of the components are LOWER than the connectors, so that the shields do not interfere with them
13. A Mini USB connector is used, which is common and is used in most cell phones, so you do not have to buy other cables
14. The original Arduino design had a flaw and the connectors were not spaced at 0.1″. This makes perfo board use impossible, so to keep the compatibility we have the same spacing but we added next to it a connector on 0.1″ which customers can use with perforated boards
15. All signals on the connectors are printed on the top and the bottom of the board, so when you check with probe you will know exactly which port you are measuring
16. 4 mount holes make board attachment easier
17. miniICSP connector 0.05″step – if you do not want to use Pinguino IDE and want to program this board with PIC-KIT3 you should use also PIC-ICSP convertor board, same applies for Microchip programmers.

Package Includes :

1 x Olimex PIC32-PINGUINO-OTG ARDUINO like PIC32MX440F256H USB-OTG

Useful Links

Pinguino IDE installation
PINGUINO IDE INSTALLATION on Windows
PINGUINO IDE Linux installation script

Pinguino IDE examples
Blinking LED example
Blink interrupt example
PIC32-PINGUINO-OTG and MOD-LCD3310 demo code for Pinguino IDE with SPI control or GPIO control: download the code for GPIO OR download the code for SPI
PIC32-PINGUINO-OTG SD card example check the info inside the package
PIC32-PINGUINO-OTG and MOD-RS485 demo examle
PIC32-PINGUINO-OTG and LED-STRIPE/LED-ROPE – PINGUINO EXAMPLE – check the note inside for additional info
PIC32-PINGUINO-OTG and LED-STRIPE/LED-ROPE – MPIDE EXAMPLE – check the note inside for additional info
PIC32-PINGUINO-OTG and MOD-MAG example
PIC32-PINGUINO and MOD-RFID125-BOX – check the note inside for additional info
PIC32-PINGUINO and MOD-RFID1356-BOX – check the note inside for additional info
PIC32-PINGUINO-OTG and MOD-GPS example v1.1
PIC32-PINGUINO-OTG with MOD-CC2540 examplereceive character demo (refer to the readme and the comments in the code for more info)
PIC32-PINGUINO-OTG with SHIELD-EKG-EMGexample (refer to the readme and the comments in the code for more info)
PIC32-PINGUINO-OTG and MOD-MP3-X demo code
PIC32-PINGUINO-OTG with MOD-BT command recognition example (refer to the readme and the comments in the code for more info)
PIC32-PINGUINO-OTG with MOD-GSM call recognition example (refer to the readme and the comments in the code for more info)
PIC32-PINGUINO-OTG with MOD-GSM send receive SMS example (refer to the readme and the comments in the code for more info)
PIC32-PINGUINO-OTG with MOD-ZIGBEE-PIR and MOD-ZIGBEE movement sensor example (refer to the readme and the comments in the code for more info)
PIC32-PINGUINO-OTG with MOD-RTC example

MPIDE related
PIC32-PINGUINO-OTG complete library example for MPIDE
MPIDE wiki article
