| Processor |
Samsung Exynos5422 ARM® Cortex™-A15 Quad 2.0GHz/Cortex™-A7 Quad 1.4GHz |
|---|---|
| Memory |
2Gbyte LPDDR3 RAM PoP (750Mhz, 12GB/s memory bandwidth, 2x32bit bus) |
| 3D Accelerator |
Mali-T628 MP6 OpenGL ES 3.1 / 3.0 / 2.0 / 1.1 and OpenCL 1.2 Full profile |
| Audio |
HDMI Digital audio output. Optional USB sound card |
| USB3.0 Host |
SuperSpeed USB standard A-type connector x 2 port |
| USB2.0 Host |
HighSpeed USB standard A type connector x 1 port |
| Display |
HDMI 1.4a with a Type-A connector |
| Storage (Option) |
eMMC module socket : eMMC 5.0 Flash Storage (up to 64GByte) |
| MicroSD Card Slot |
up to 128GByte |
| Fast Ethernet LAN |
10/100/1000Mbps Ethernet with RJ-45 Jack ( Auto-MDIX support) |
| WiFi (Option) |
USB IEEE 802.11 ac/b/g/n 1T1R WLAN with Antenna (External USB adapter) |
| HDD/SSD SATA interface (Optional) |
SuperSpeed USB (USB 3.0) to Serial ATA3 adapter for 2.5″/3.5″ HDD and SSD storage |
| Power Input |
4.8Volt~5.2Volt (5V/4A Power supply is recommended) |
| System Software |
Ubuntu 16.04 + OpenGL ES + OpenCL on Linux Kernel 4.14 LTS |
| Dimensions (L x W x H) mm |
83 x 58 x 20 |
| Weight (gm) |
38 (without cooler approx.) |
| Shipping Weight | 0.2 kg |
| Shipping Dimensions | 12 × 10 × 5 cm |

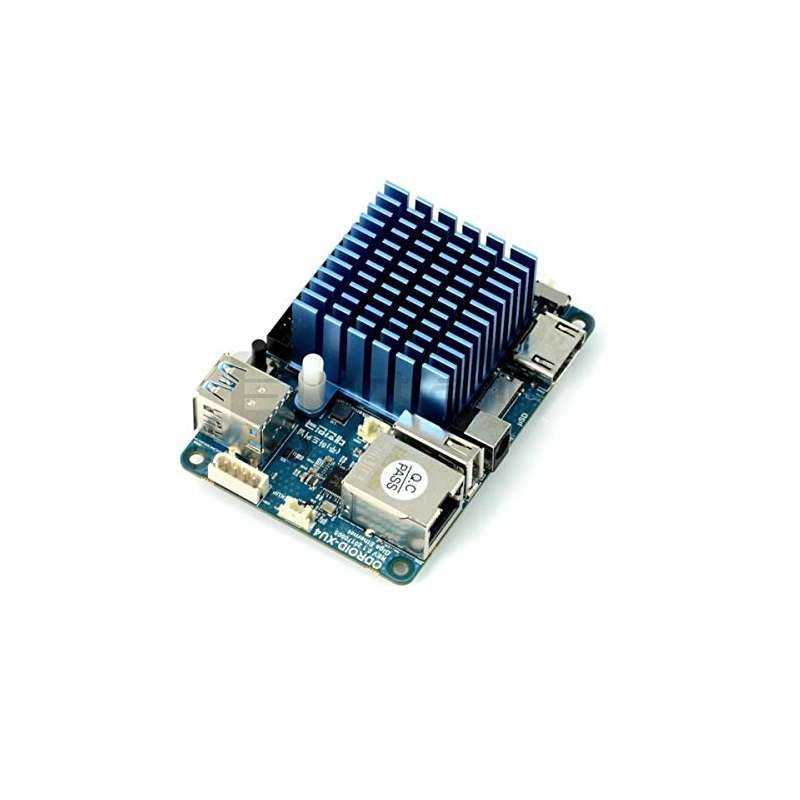

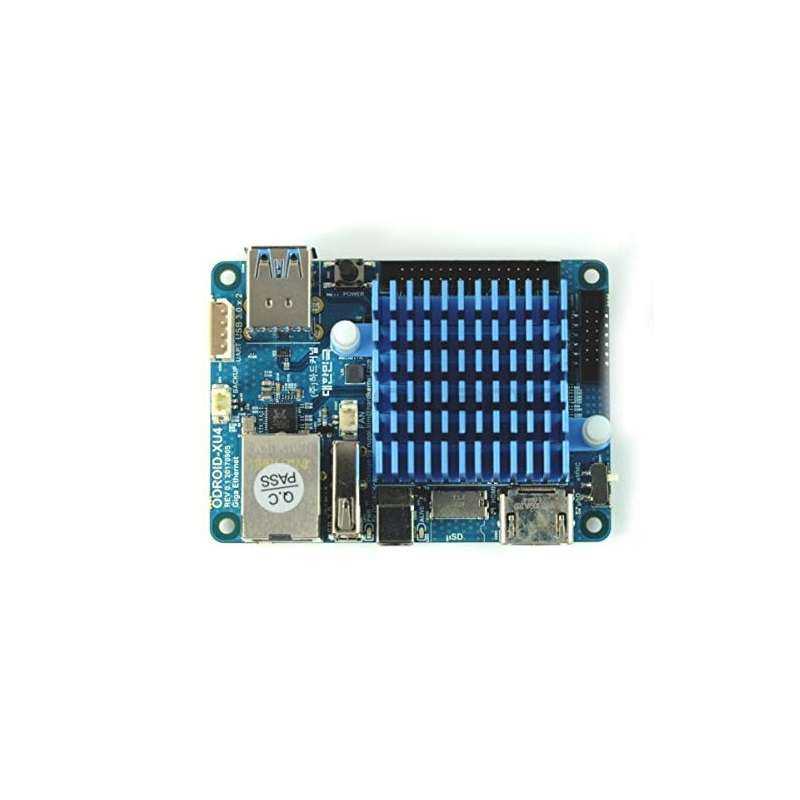

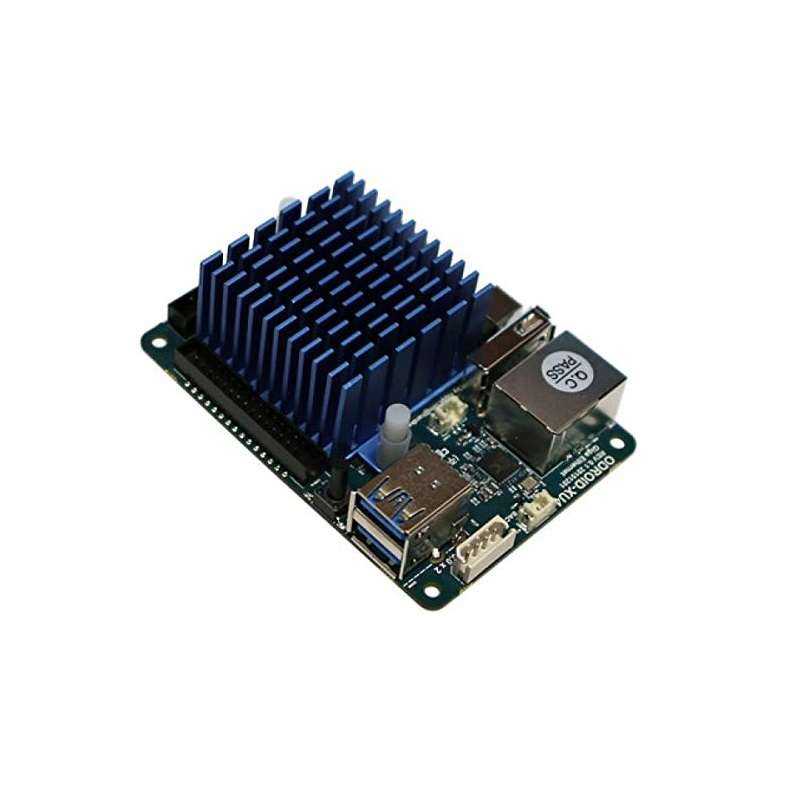

ODROID-XU4Q Single Board Computer
- Processor: Samsung Exynos5422 ARM Cortex-A15 Quad 2.0GHz/Cortex™-A7 Quad 1.4GHz
- Memory: 2Gbyte LPDDR3 RAM PoP (750Mhz, 12GB/s memory bandwidth, 2x32bit bus)
- Display: HDMI 1.4a with a Type-A connector
- Storage (Option): eMMC module socket: eMMC 5.0 Flash Storage (up to 64GByte)
MicroSD Card Slot (up to 128GByte) - Fast Ethernet LAN: 10/100/1000Mbps Ethernet with RJ-45 Jack ( Auto-MDIX support) SSD storage
- Power Input: 4.8Volt~5.2Volt (5V/4A Power supply is recommended)
₨ 100.10
Out of stock
Out of stock
ODROID-XU4 is a new generation of computing devices with more powerful, more energy-efficient hardware and a smaller form factor. Offering open-source support, the board can run various flavors of Linux, including the latest Ubuntu 20.04 and Android 4.4 KitKat, 5.0 Lollipop, and 7.1 Nougat.
By implementing the eMMC 5.0, USB 3.0, and Gigabit Ethernet interfaces, the ODROID-XU4 boasts amazing data transfer speeds, a feature that is increasingly required to support advanced processing power on ARM devices.
This allows users to truly experience an upgrade in computing, especially with faster booting, web browsing, networking, and 3D games.
Features:
- Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs
- Mali-T628 MP6(OpenGL ES 3.1/2.0/1.1 and OpenCL 1.2 Full profile)
- 2Gbyte LPDDR3 RAM PoP stacked
- eMMC5.0 HS400 Flash Storage Interface (eMMC module sold separately)
- 2 x USB 3.0 Host, 1 x USB 2.0 Host
- Gigabit Ethernet port
- HDMI 1.4a for display
- Size : 83 x 58 x 20 mm approx.(excluding cooler)
- Power: 5V/4A input
- Linux Kernel 5.4 LTS
Package Includes:
1 x ODROID-XU4Q Single Board Computer
