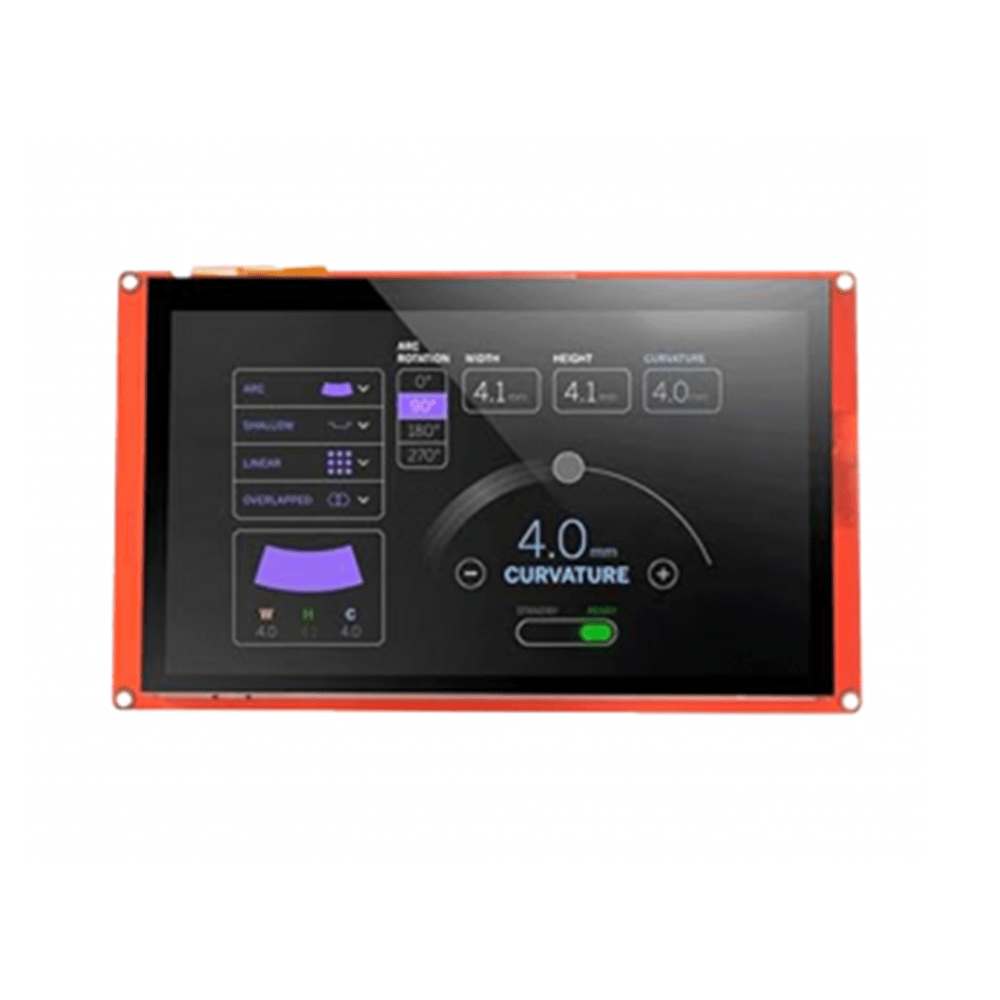

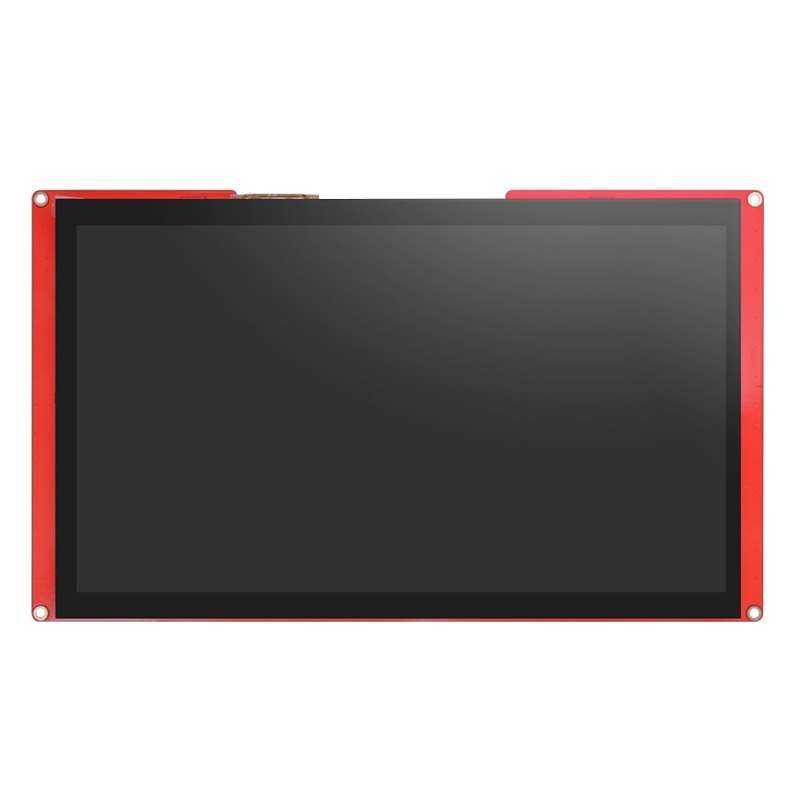

Nextion Intelligent NX1060P101-011C-I 10.1″ HMI Capacitive Touch Display

HMI Displays are becoming increasingly popular as a result of their intelligence, and Nextion is one of the popular brands that only manufactures a Diverse Range of high-quality displays at a comparatively high price. These HMI displays are faster to interact with than other HMI displays because they use high-quality components that set them apart.

Nextion HMI Display gains more popularity in the market due to its originality and compatibility in industries and High-end projects also need these types of high-end displays.

This Type of Displays are used for Industry-level projects or Bulk types of projects.

Note:

The free latest Nextion Editor software ver 0.58 or higher can be used to develop the HMI GUI project. the easy Drag-and-Drop components and simple ASCII text-based instructions will drastically reduce your HMI project development workloads.

ROBU.IN is an official distributor for Nextion Displays in India. Check out our Nextion Displays here.

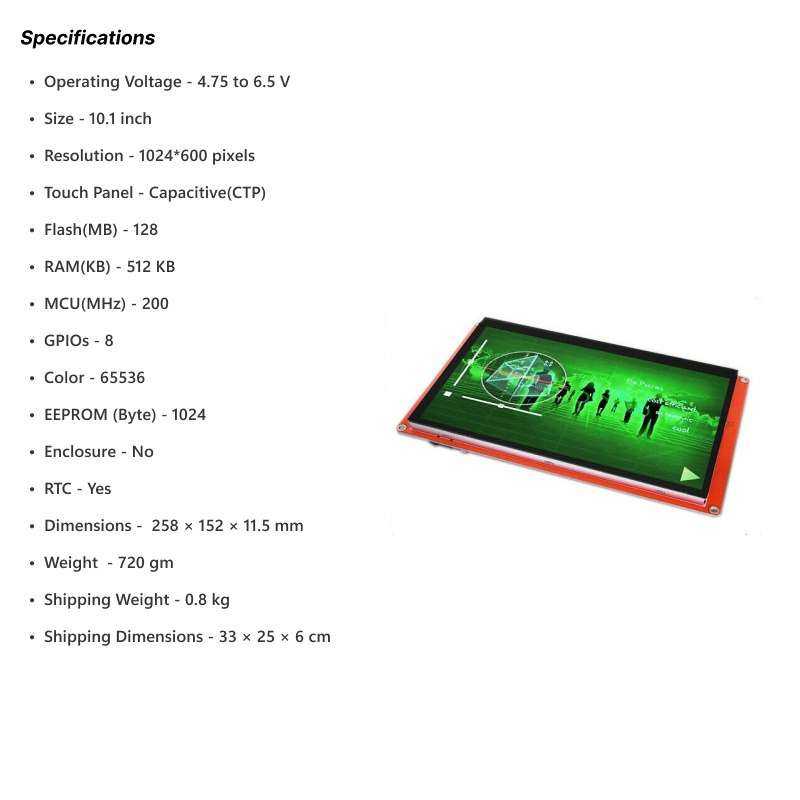

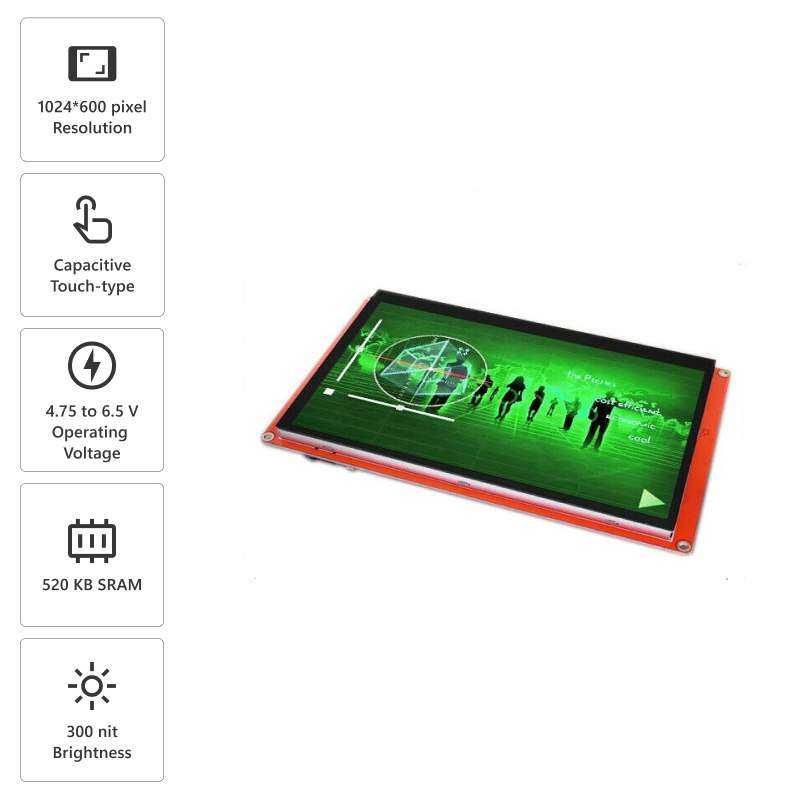

Features:

1. Model: NX1060P101-011C-I(HMI Capacitive Touch Display)
2. NX1060P101-011C-I(10.1” IPS RGB 65K capacitive touchscreen)
3. Onboard MCU 200MHz and up to 128MB for the HMI project
4. Built-in RTC，EEPROM, 8 digital GPIOs (2 PWM capable)
5. 4 pins (+5V, TX, RX, GND) TTL serial interface
6. 300 nit Brightness with 1% interval adjustment
7. Audio interface
8. CE and RoHS Compliant

Useful Links:

1. Datasheet
2. Instruction Set
3. Editor Guide

Package Includes:

1 x NX1060P101-011C-I HMI Display
1 x XH2.54 4P Wire
1 x Power Supply Test Board
